Fujitsu Server PRIMERGY TX1330 M1 - Installing the HDD Bay Cover

64 Upgrade and Maintenance Manual TX1330 M1
Basic hardware procedures
Ê Insert and slide the ID card into its slot until it locks in place (see figure 12
on page 56.)
4.5.2.2 Installing the HDD bay cover

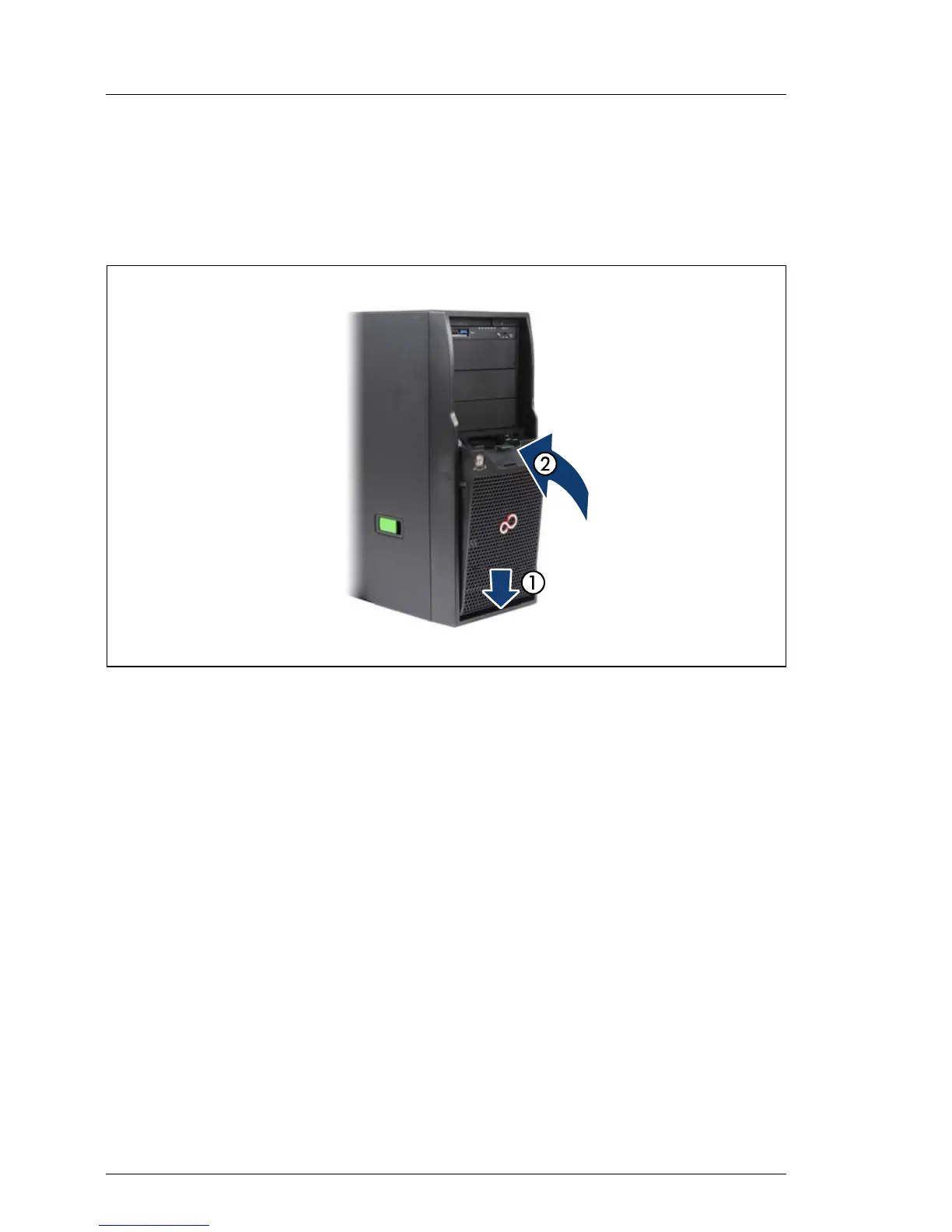

Figure 20: Installing the HDD bay cover
Ê Insert the HDD bay cover into the front cover as shown (1).
Ê Fold in the HDD bay cover until it locks in place (2).
