TX1330 M1 Upgrade and Maintenance Manual 201
Expansion cards and backup units
9.5.4.3 Removing the FBU holder from the chassis

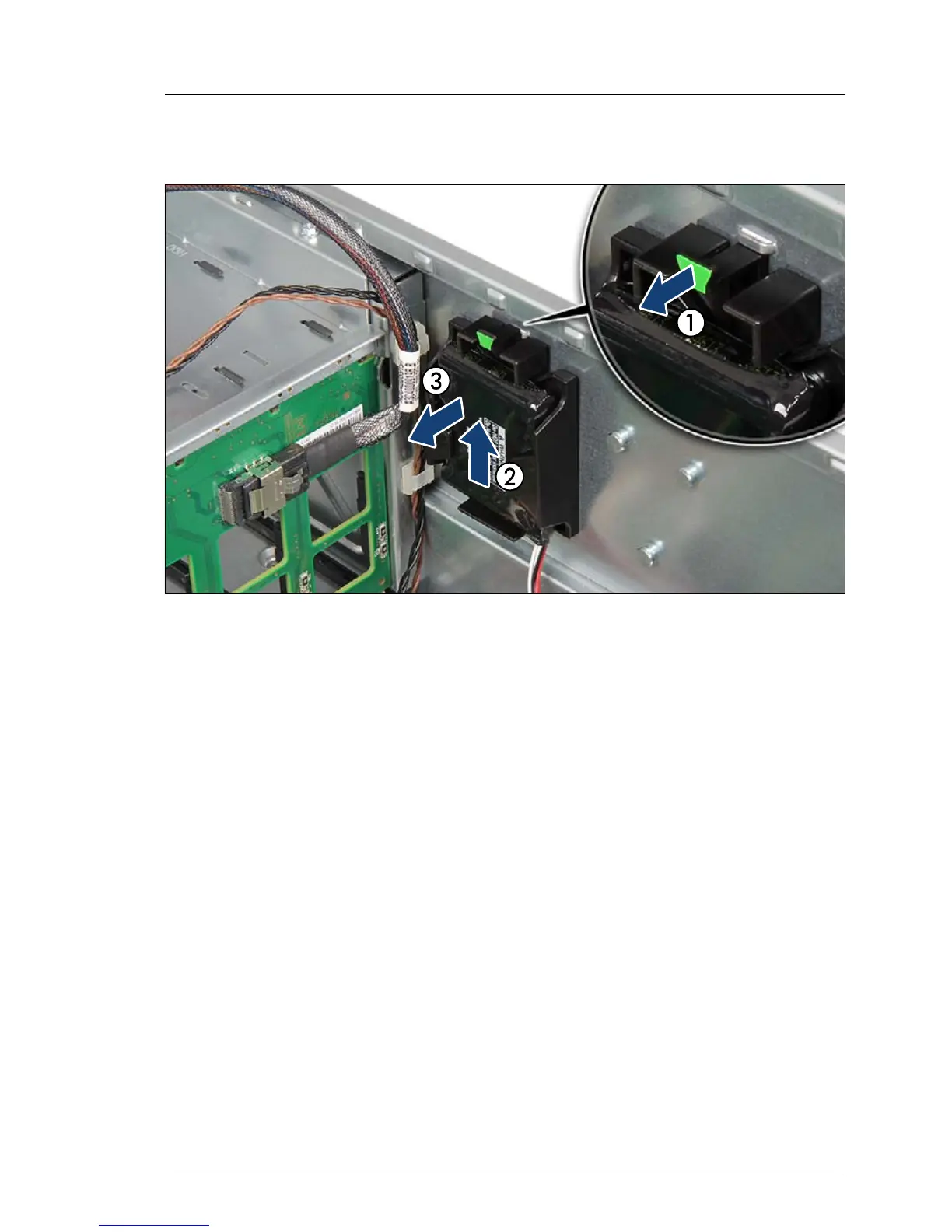

Figure 117: Removing the FBU holder from the chassis
Ê Lift up the green locking handle on the FBU holder (1) while sliding the BBU
holder upward as far as it will go (2).
I After that, the fixation bolts on the chassis floor will rest in the wide
ends of the keyhole slots on the holder.
Ê Lift the FBU holder out of the chassis (3).
9.5.4.4 Concluding steps
Ê "Installing the fan module" on page 152
Ê "Reassembling" on page 58
Ê "Connecting the server to the mains" on page 67
Ê "Switching on the server" on page 68

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
