2.3 Tools you need at hand
When preparing the maintenance task, ensure that all required tools are
available according to the overview below. You will find a list of required tools at
the beginning of each procedure.
Assembly,
rack installation
yes
Reassembling the server, installing the
server in the rack (if applicable)
Starting up no
Booting time depends on hardware and
software configuration and may vary
significantly.
Screw driver /
Bit insert
Screw Usage Type
Phillips
PH2 / (+) No. 2
hexagonal cross
SW5 / Ph2
Backup drives,
optical disk
drives, chassis
M3 x 3.5 mm
(black)
C26192-Y10-C151
Phillips
PH2 / (+) No. 2
hexagonal cross
SW5 / PZ2
System board
M3 x 6 mm
(silver)
C26192-Y10-C68
Phillips
PH2 / (+) No. 2
hexagonal cross
SW5 / PZ2
Backup drives
with UNC
thread
UNC
6-32 x 4.76 mm
(black)
C26192-Y10-C75
Phillips
PH0 / (+) No. 0
2.5-inch HDDs
/ SSDs
M3 x 3.5 mm
Wafer head screw
(silver)
C26192-Y10-C102

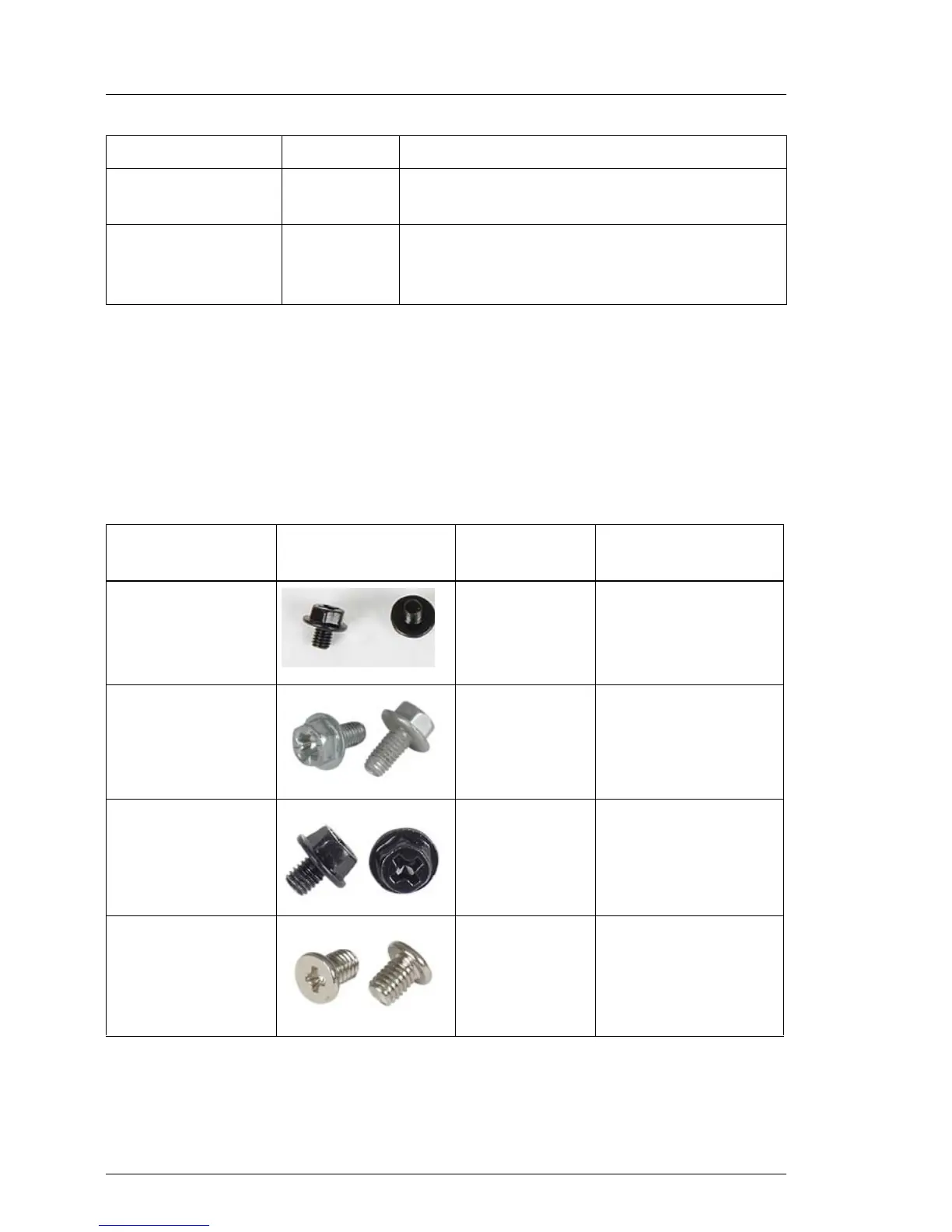

Table 2: List of required tools and used screws
Step included Explanation
Table 1: Calculation of the average task duration
