Installing accessible drive covers

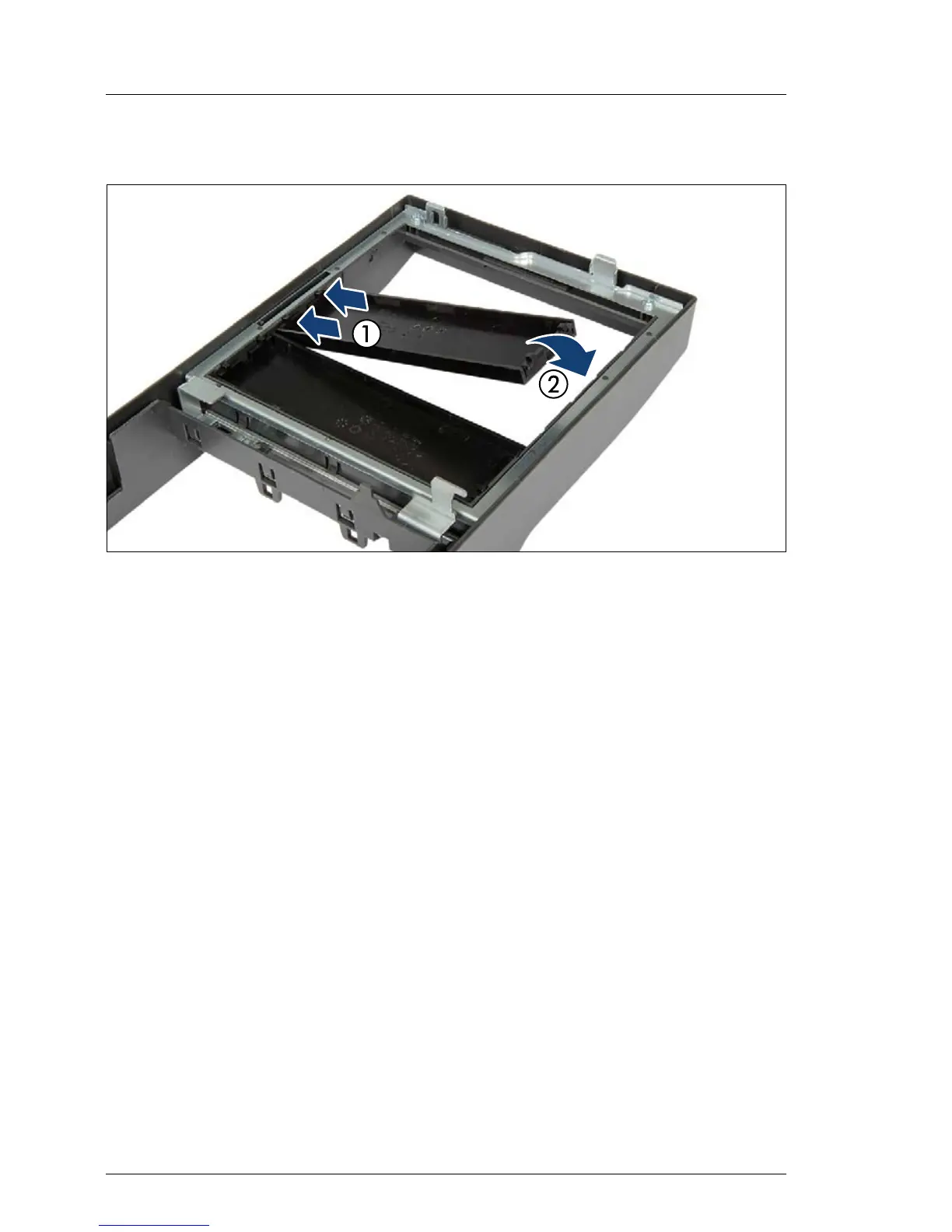

Figure 153: Installing accessible drive covers
I Installing accessible drive covers is illustrated by the example of the
tower server. In case of the rack front cover, the procedure is identical.
Ê Ensure that an accessible drive filler cover has been installed in every empty
drive bay.
Ê Turn the front cover face down.
Ê Join the two lugs on one edge of the accessible drive cover with the right
inner edge of the front cover (1).
Ê Fold down the accessible drive cover until it snaps in place (2).
12.3.4 Concluding steps
Ê "Installing the rack front cover" on page 58 (rack server) or "Installing the
front cover" on page 63 (tower server)
Ê "Reassembling" on page 58
Ê "Connecting the server to the mains" on page 67
Ê "Switching on the server" on page 68
