262 Upgrade and Maintenance Manual TX1330 M1
System board and components
14.3.3.3 Installing the new UFM

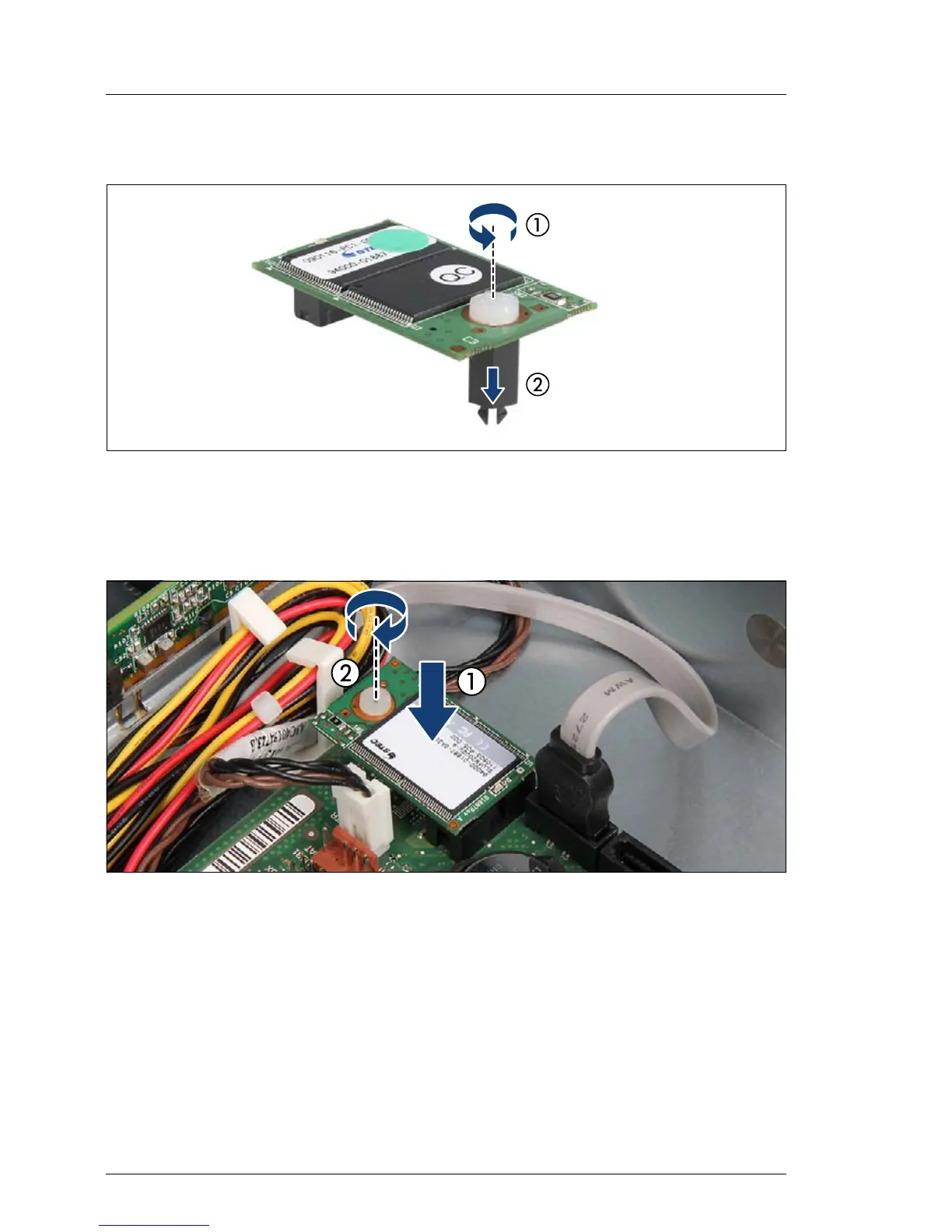

Figure 166: Preparing the new UFM
Ê Remove the nylon screw from the new UFM (1).
Ê Remove the UFM spacer (2).
Figure 167: Installing the UFM
Ê Fit the UFM on the UFM connector and the remaining UFM spacer (1).
Ê Secure the UFM to the UFM spacer with the nylon screw (2).

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
