6.2.1.2 Removing the defective standard power supply unit

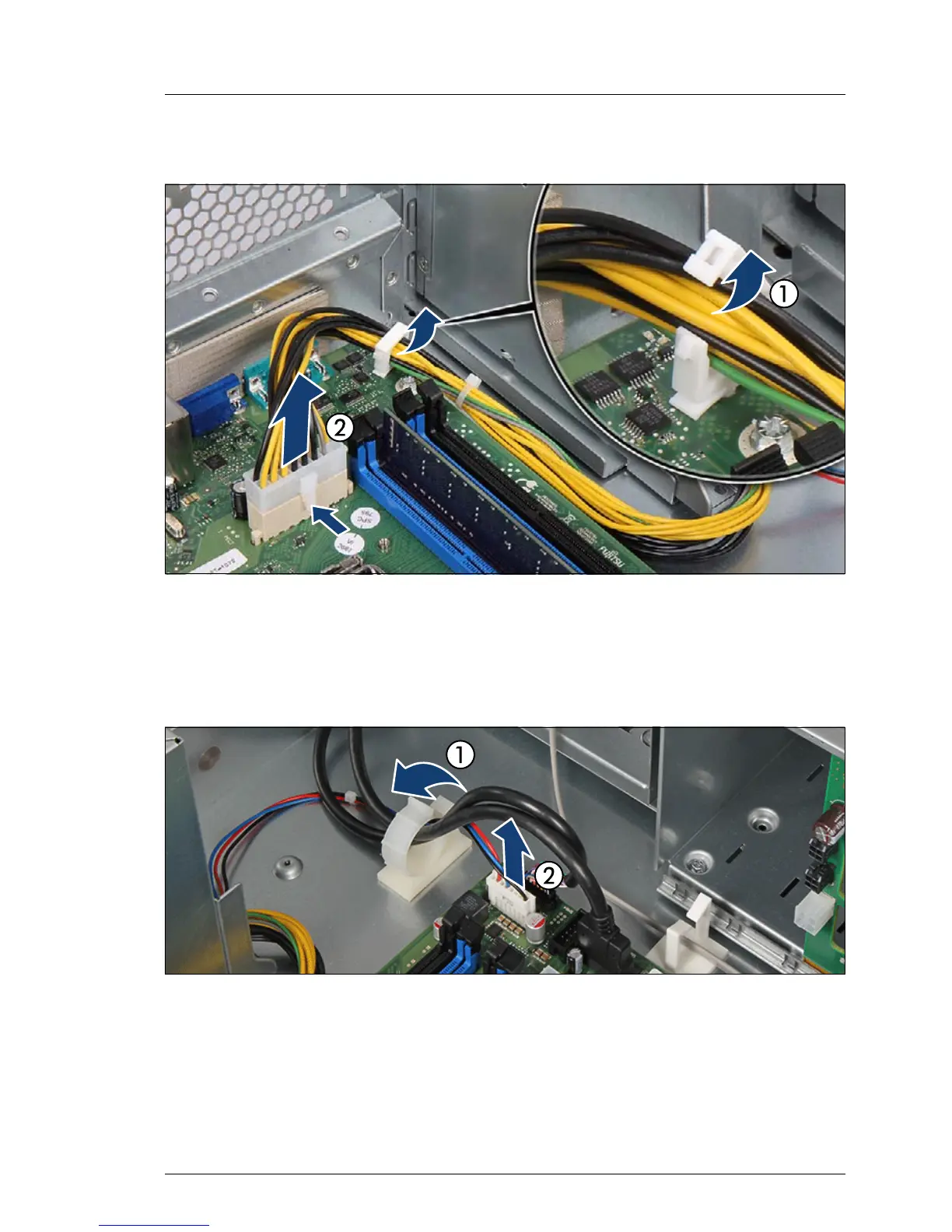

Figure 25: Disconnecting power cables (A)
Ê Open the power cable clamp (1).
Ê While pressing the release latch on the connector, disconnect the ATX
power supply connector (2).
Figure 26: Disconnecting power cables (B)
Ê Open the power clamp (1).
Ê Disconnect the power management connector (2).
