102 Upgrade and Maintenance Manual
TX1330 M1
Power supply

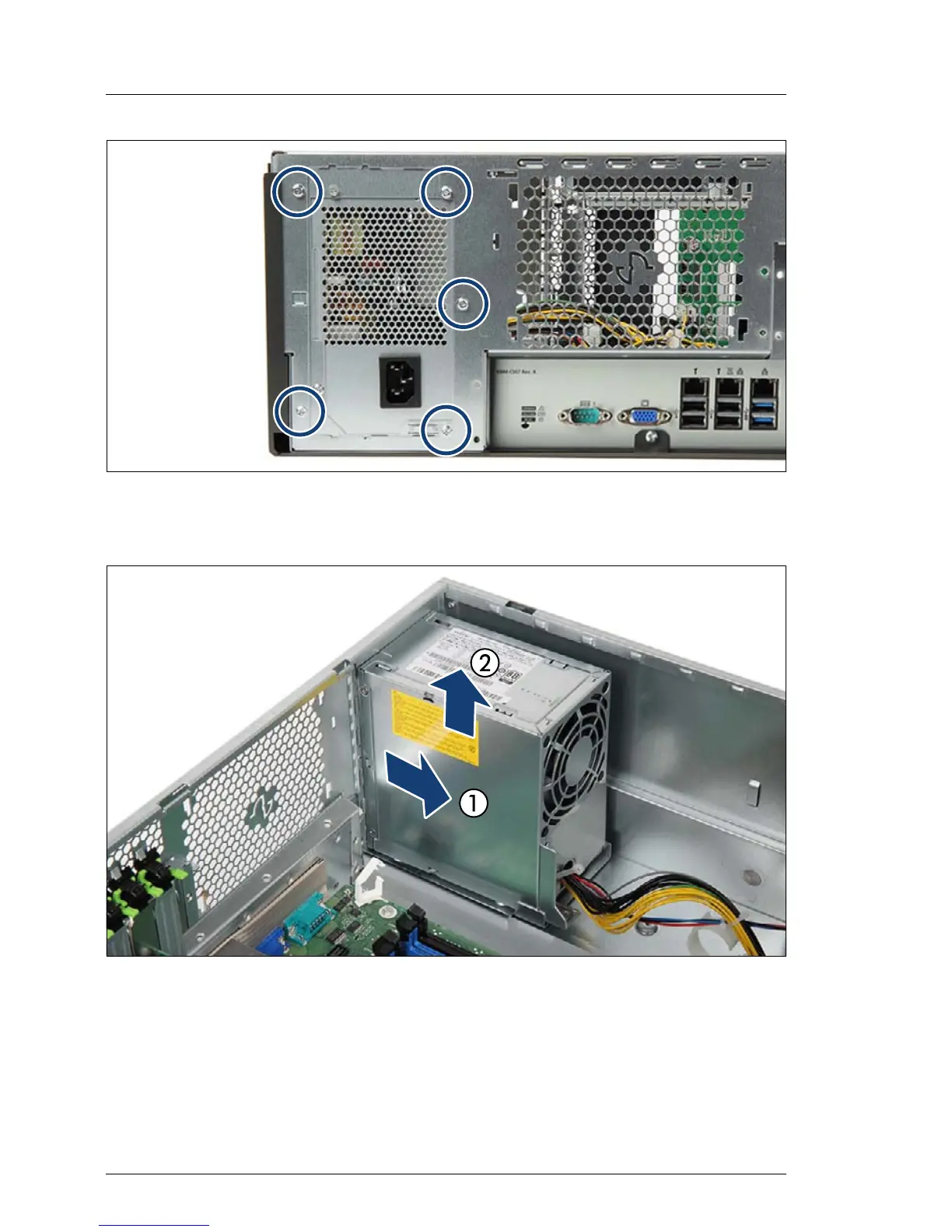

Figure 27: Detaching the standard power supply unit
Ê Remove the five screws (see circles).
Figure 28: Taking out the standard power supply unit
Ê Slide the power supply unit inside the chassis by 3 cm (1).
Ê Lift the power supply unit out of the chassis (2).
