TX1330 M1
Upgrade and Maintenance Manual 103
Power supply

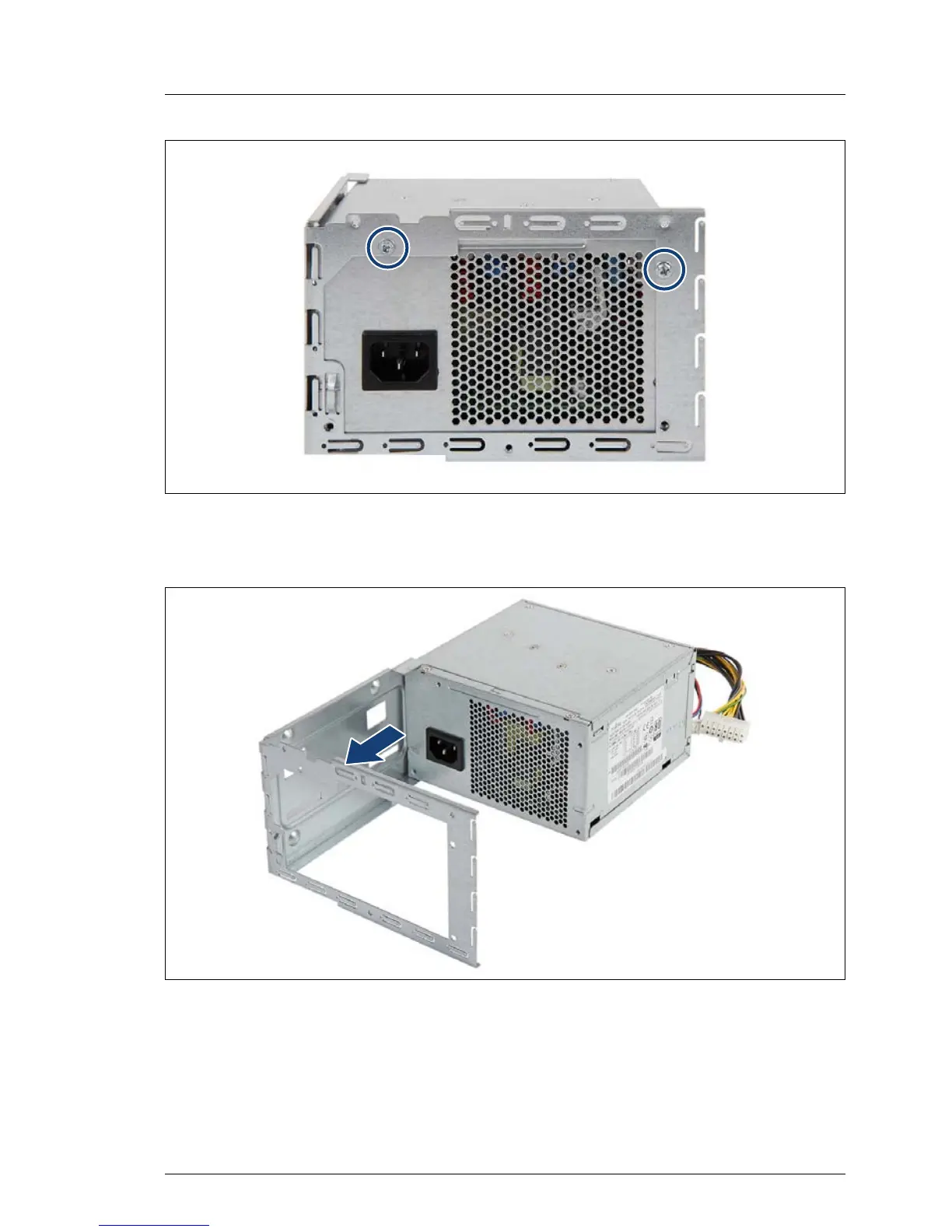

Figure 29: Removing the installation frame from the power supply unit (A)
Ê Remove the two screws (see circles).
Figure 30: Removing the installation frame from the power supply unit (B)
Ê Remove the installation frame from the power supply unit.
