Fujitsu Server PRIMERGY TX1330 M1 User Manual

TX1330 M1 Upgrade and Maintenance Manual 123
Hard disk drives / solid state drives
7.2 2.5-inch HDD / SSD configurations
7.2.1 Mounting order
Maximum configuration: 8x 2.5-inch HDDs / SSDs

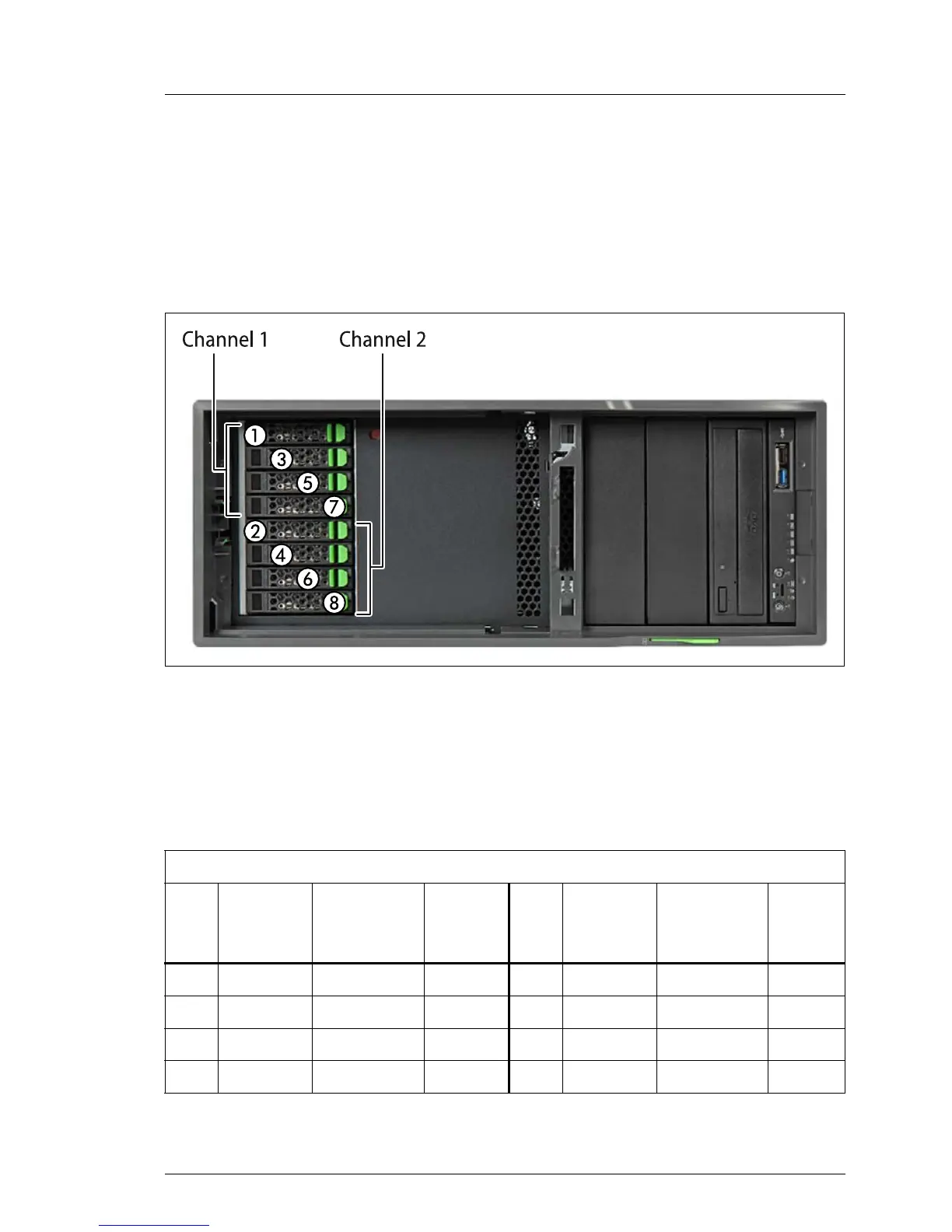

Figure 43: 2.5-inch HDD / SSD mounting order (example tower server)
7.2.2 HDD / SSD naming scheme
I The HDD / SSD numbering as listed in the ServerView RAID Manager
differs from the HDD mounting order:
2.5-inch HDDs / SSDs
Bay
RAID
Manager
#
Channel
log.
Drive #
Bay
RAID
Manager
#
Channel
log.
Drive #
1 [0] 102[4] 20
3 [1] 114[5] 21
5 [2] 126[6] 22
7 [3] 138[7] 23
Table 4: HDD naming scheme
