Fujitsu Server PRIMERGY TX1330 M1 User Manual

TX1330 M1 Upgrade and Maintenance Manual 135
Hard disk drives / solid state drives
V CAUTION!
Save the dummy module for future use.
Always replace dummy modules into unused HDD bays to comply
with applicable EMC regulations and satisfy cooling requirements.
7.3.3.3 Installing a 3.5-inch HDD module

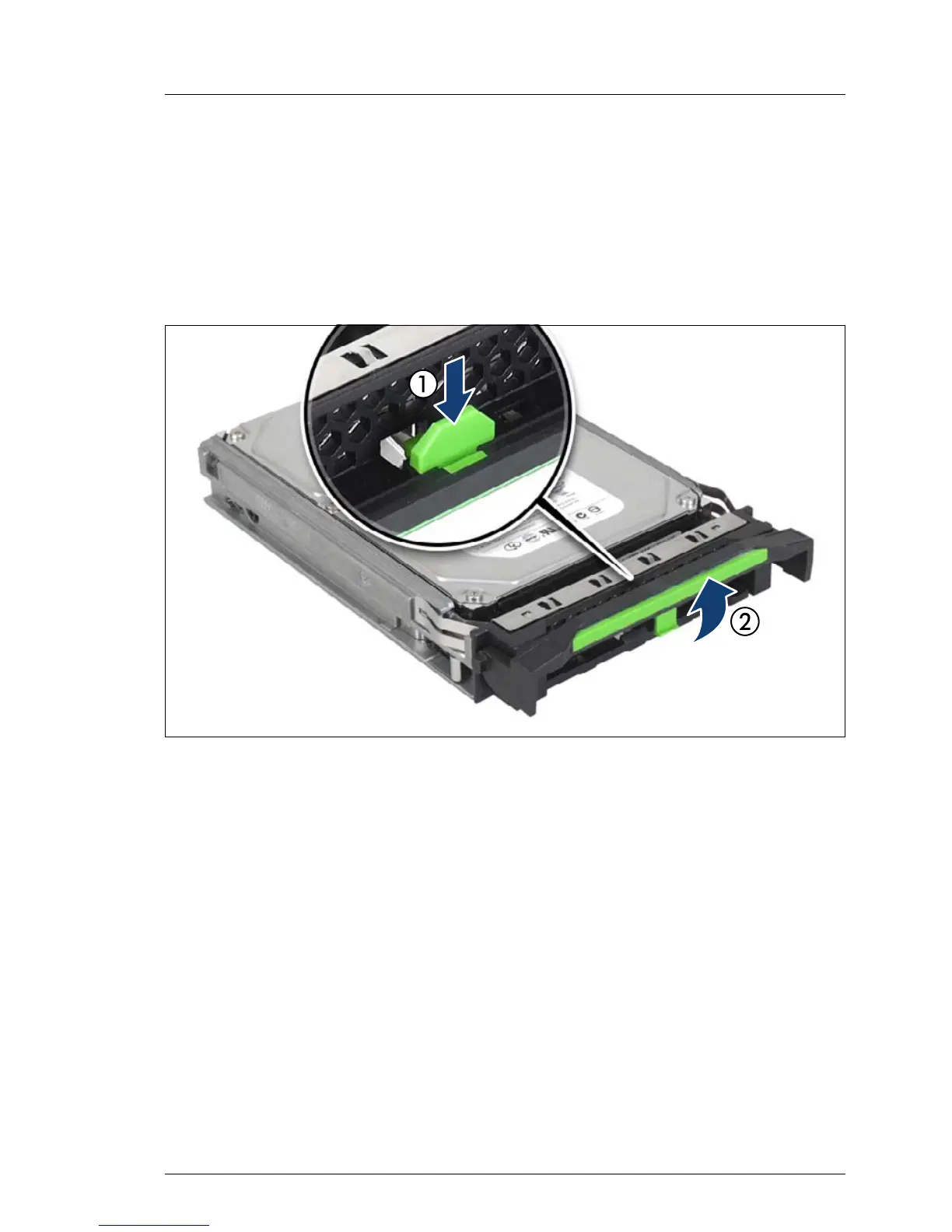

Figure 54: Opening the 3.5-inch HDD module locking lever
Ê While pressing down on the locking button (1) fold up the lever (2).

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
