238 Upgrade and Maintenance Manual TX1330 M1
Accessible drives

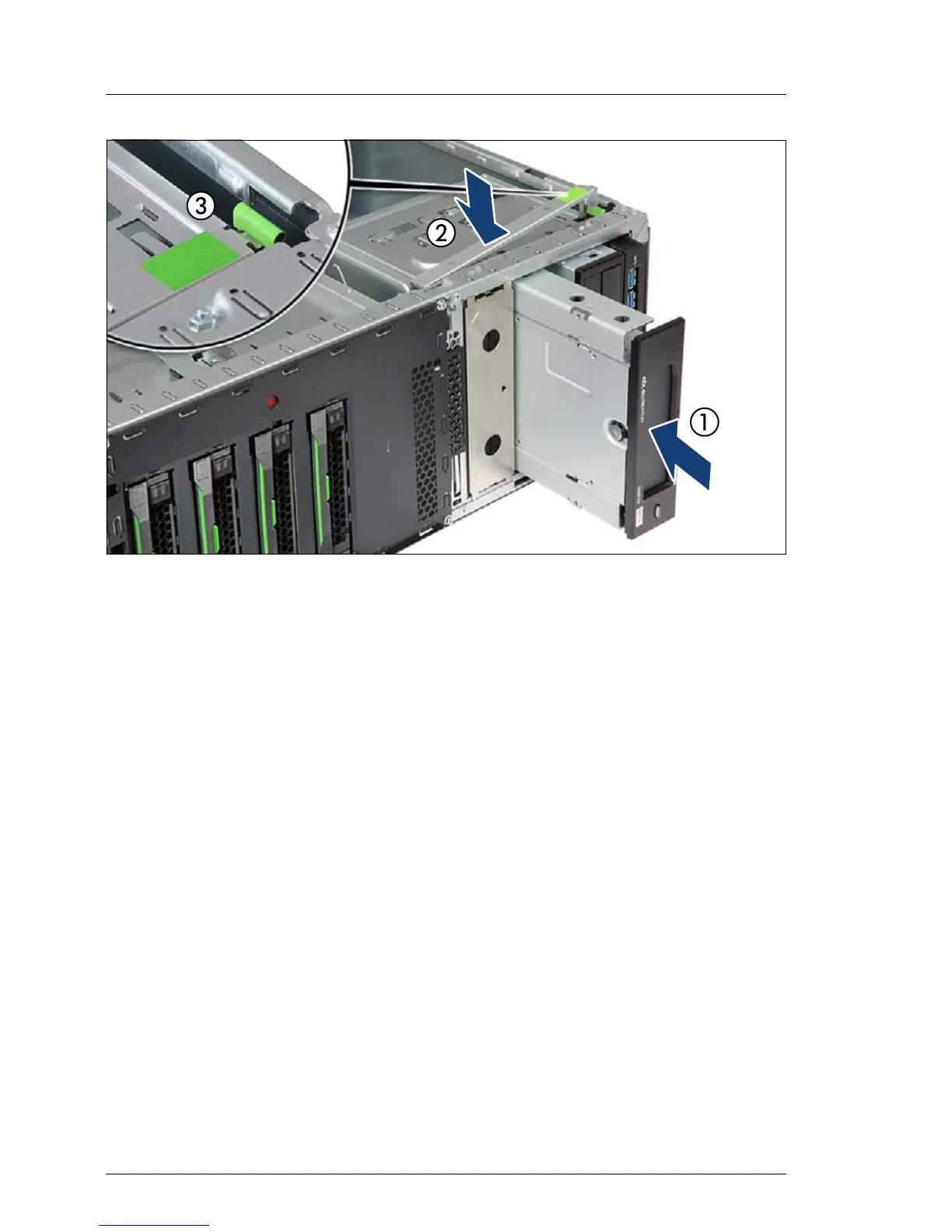

Figure 148: Inserting the accessible drive
Ê Insert the accessible drive into its installation bay and carefully push in until
the front screw hole on the front panel frame lines up with the centering pin
on the locking bar (1).
V CAUTION!
For installing a LTO drive: ensure that the power cables routed behind
the accessible drive cage are not trapped when pushing the LTO
drive in its bay.
Ê Close the locking bar (2) until it locks in place (3).
Ê Connect the cables according to your configuration see section "Cabling
plans" on page 303.

Fujitsu Server PRIMERGY TX1330 M1 Specifications

General

Memory Slots	4
Form Factor	Tower
Chipset	Intel C226
Processor Sockets	1
Processor	Intel Pentium, Intel Celeron
RAID Support	RAID 0, 1, 5, 10
Drive Bays	8 x 3.5-inch
Operating System Support	Windows Server, Red Hat, SUSE, VMware
