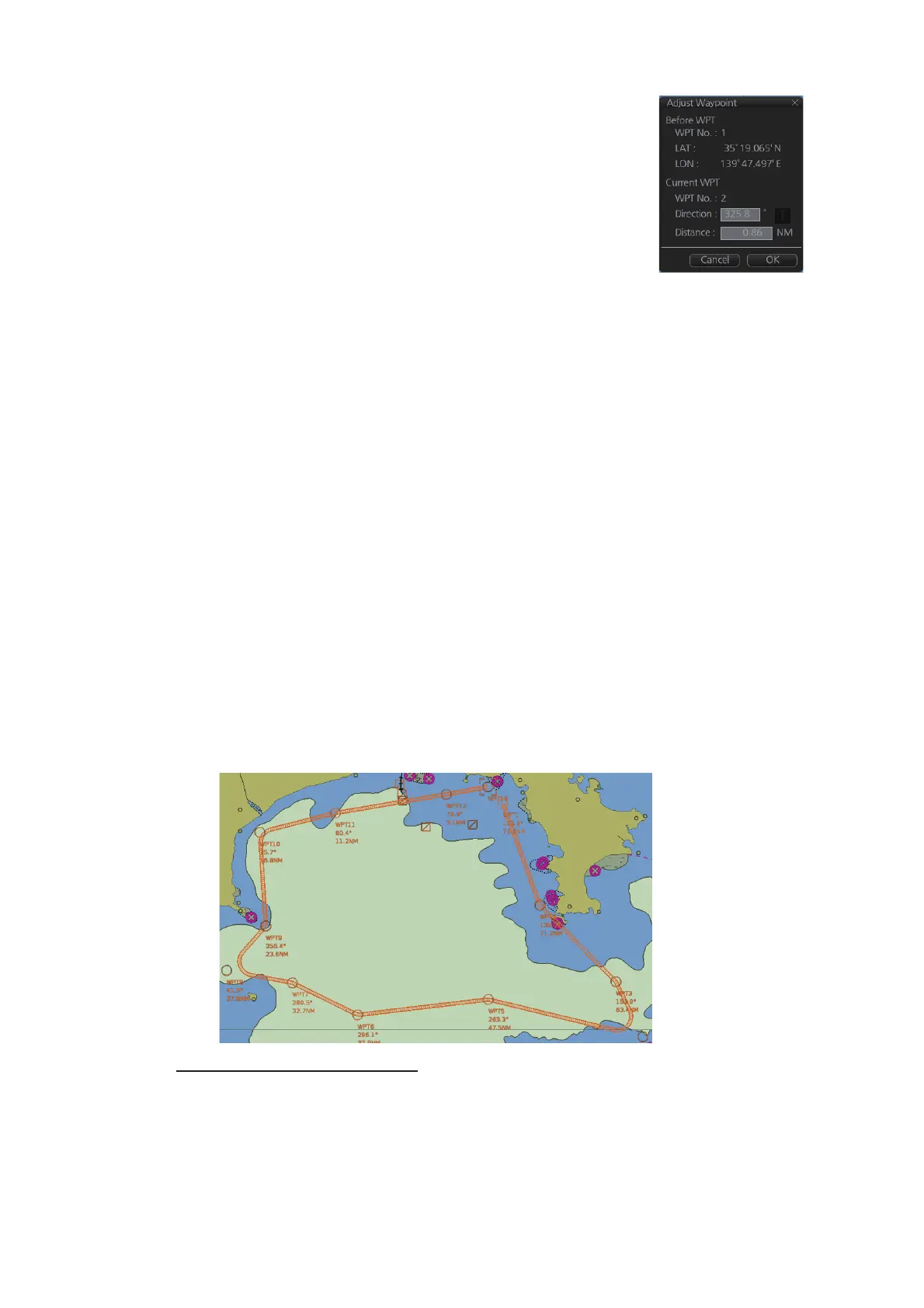

Note 2: The bearing and range of the waypoint can be ad-
justed as shown below.
1) In the [Route Plan] dialog box, right click the bearing or
the distance of the waypoint to change.
2) Select [Adjust Position] to show the [Adjust Waypoint]
context menu shown right.
3) Enter value at [Direction] or [Distance], then click the
[OK] button.
5. Repeat step 4 to enter other waypoints.
6. After you enter the final waypoint, right-click the display area to show the context-
sensitive menu then select [Finish].
7. Click the [Save] button. Enter a name (max. 63 alphanumeric characters) for the
route, using the keyboard on the Control Unit or the software keyboard. Click the
[OK] button to finish.
8. Use the [Alert Parameters] page to define the safety contour and other specified
conditions for checking the route. Click a "block" under a check item to highlight
the areas. Also, input value for [Draught/m]. A parameter for [Draught/m] can also
be assigned globally to all legs from the context-sensitive menu. See
section 12.4.4 for how to use the [Alert Parameters] page.
9. Use the [Check Route] button on the [Alert Parameters] page to detect areas
where the depth is less than the safety contour or where specified conditions exist.
The results appear on the [Check Results] page. This system can examine chart
database against planned route to make a list of alerts where a route crosses a
safety contour or specified areas used in chart alerts.
10. Use the [User Chart] page to link, de-link a user chart(s) with the route. See
section 12.4.2.
11. Use the [Optimize] page to enter parameters for route optimization.See
section 12.4.3.
How to use the Undo feature
The Undo feature, available when creating a route and a user chart, can be accessed
from the [UNDO] button on the InstantAccess bar™. In route creation the feature is
used with waypoint and text input as follows:
Waypoint input: Delete last-entered waypoint.
Text input: Erase last-entered character or character string.
