APPENDIX 2 ABBREVIATIONS, SYMBOLS
AP-13

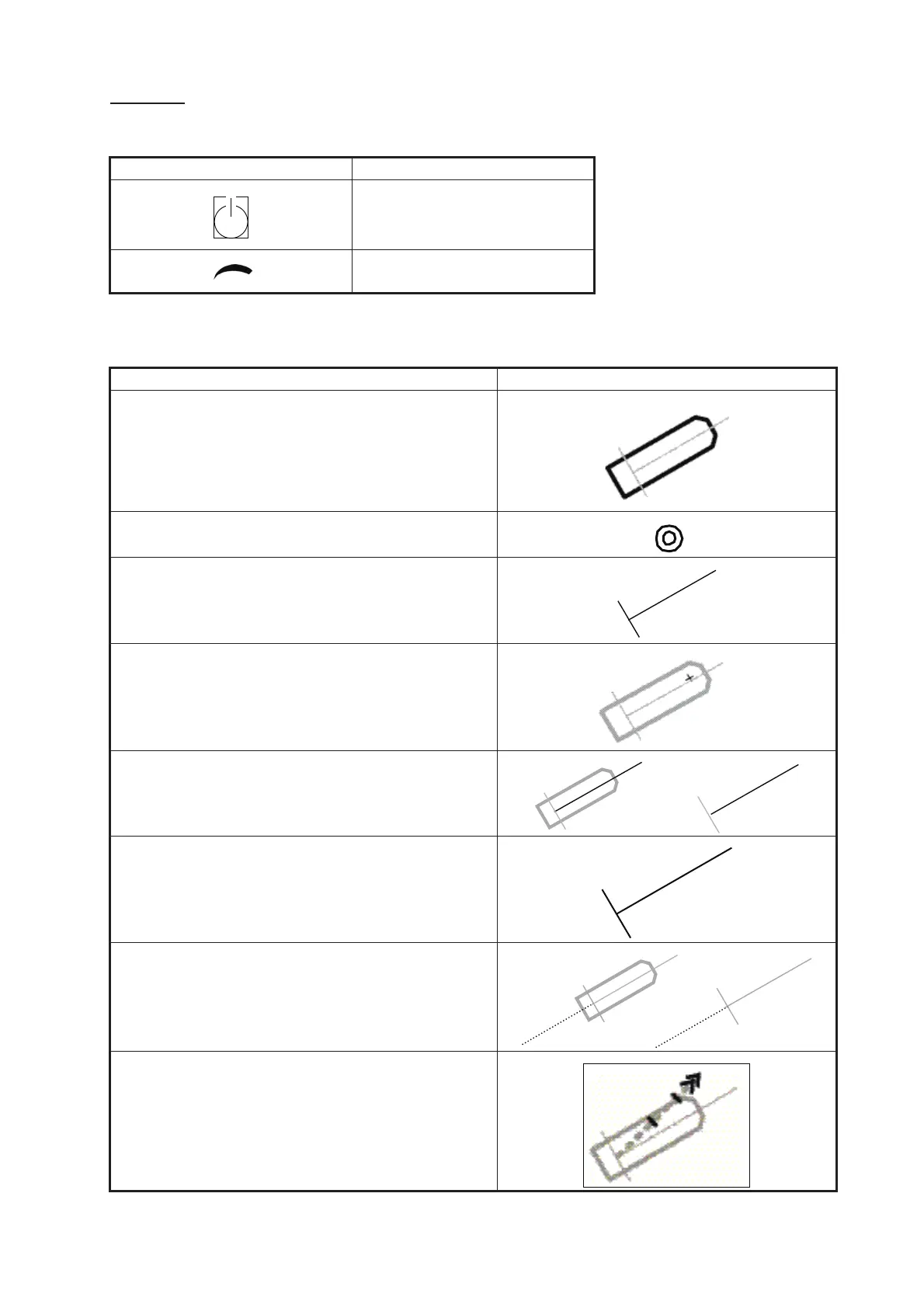

Symbols
Symbols on Control Unit
Symbols on display
Symbol Name
Power switch
Gain
Symbol name and description Symbol graphic(s)
Own ship - true scaled outline
This can be displayed when based on user selection
either beam width or length is more than 3 mm.
Own ship - simplified symbol
Own ship - minimized symbol
Radar antenna position
This symbol indicates location of the radar antenna.
Select if position of radar antenna is displayed with
symbol + in [MARK SETTING] menu.
Own ship heading line
This line originates from CCRP or Radar antenna
position.
CCRP: Consistent Common Reference Point
Beam line
This line passes through the CCRP or radar antenna
position.
Stern line
Velocity vector - time increments
