Annotations
Vivid S70 / S60 – User Manual 4-11
BC092760-1EN 01
NOTE: Some buttons toggle between two or three related
annotation texts (e.g. pressing the annotation Left will insert
the text “Left” and toggle the button to the annotation Right).
Annotation buttons with toggle functionality are marked with
a circular arrow.
3. Position the text on the screen with the trackball.
4. Press Select to add the annotation.

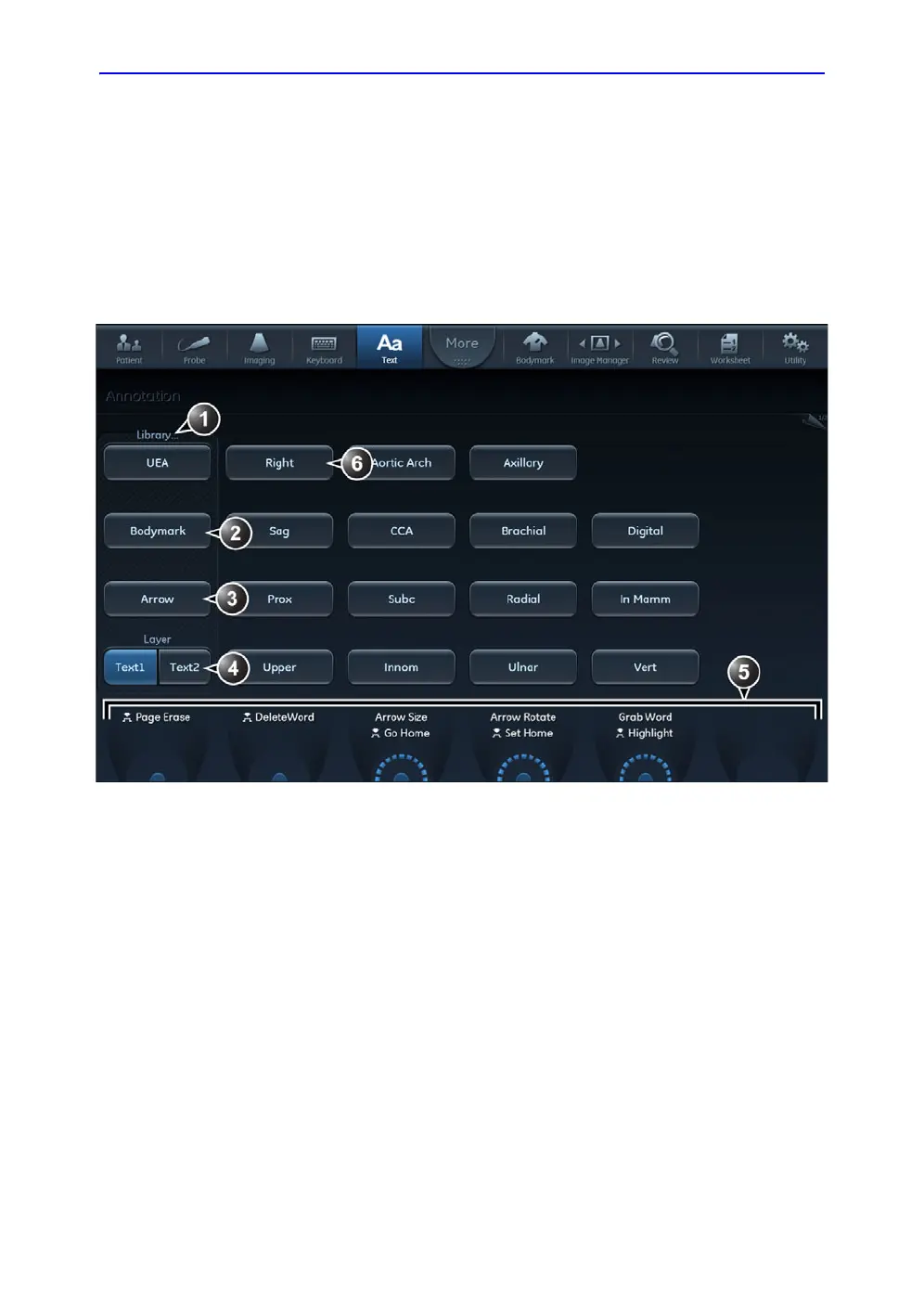

Figure 4-5. Annotation Touch panel
Layered annotations
Annotations can be entered on two different layers (called Text 1
and Text 2). This function enables the user to show/hide
different annotations on the same image.
1. Press Text 1 on the Touch panel. The Text 1 layer is
displayed. Enter an annotation.
1. Selects application specific library
2. Displays Bodymarks
3. Inserts Arrow
4. Creates layered annotations
5. Adjustment tools
6. Button with toggle function
