System Overview
Vivid S70 / S60 – User Manual 3-19
BC092760-1EN 01
Peripheral/accessory connector panel
The Peripheral/accessory connector panel is located at the rear
of the system (see Figure 3-11).

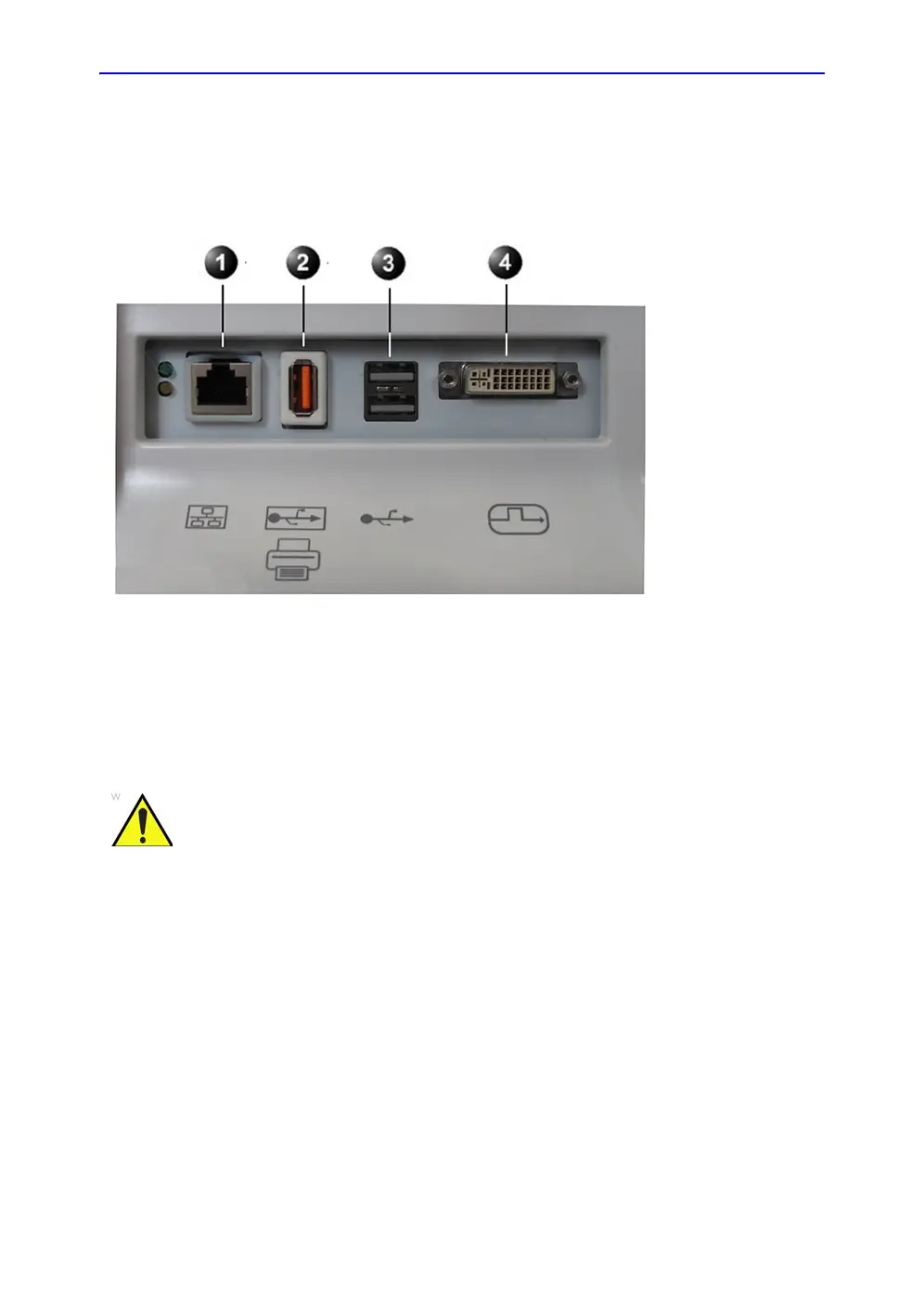

Figure 3-11. Peripheral/accessory connector panel
1. Ethernet LAN connector
2. Insulated USB connector (supporting USB 1.0)
3. Dual USB connector (supporting USB 2.0)
4. DVI display-out connector
Accessory equipment connected to the analog and digital
interfaces must be certified according to the respective IEC or
ISO Safety standards (e.g. IEC/EN 60950 for data processing
equipment and IEC/EN 60601-1 for medical equipment). Any
person connecting additional equipment to the signal input part
or output part of the ultrasound system configures the medical
system and is therefore responsible that the system complies
with the requirements of the medical electrical systems of IEC/
EN 60601-1 Clause 16. If in doubt, consult the technical
service department or your local representative.
Do not touch the conducting parts of the USB or Ethernet
cables when connecting equipment to the system.
