Select to delete selected step(s).
6. When all steps are created, press Check to verify the
Protocol.
Any invalid attribute settings reported should be corrected
and the Protocol rechecked.
Measurements in Protocols
Because there are many measurements available on the Vivid
S70 / S60 and because the measurement package is highly
customizable, there is some special handling for measurements.
To set up a measurement step in a Protocol:
1. Press Measurements and select a measurement category
and optionally a measurement subcategory.
The measurements available for the attributes Measure 1 to
Measure 3 and Vessel are limited to the measurements
available in the category or subcategory selected.
2. Select the desired Measure trigger parameter (see
‘Measurement attributes’ on page 12-86).
NOTE: To configure a Vessel measurement, leave the Measure
trigger attribute to None.
3. Select the desired measurements for Measure 1, Measure 2
and Measure 3.
Saving Protocols
1. Select File/Save (Ctrl+s)
NOTE: Select File/Save as to save the Protocol with a different
name.
If the Protocol was not checked, a dialog is displayed giving
the opportunity to check the Protocol for errors before
saving.

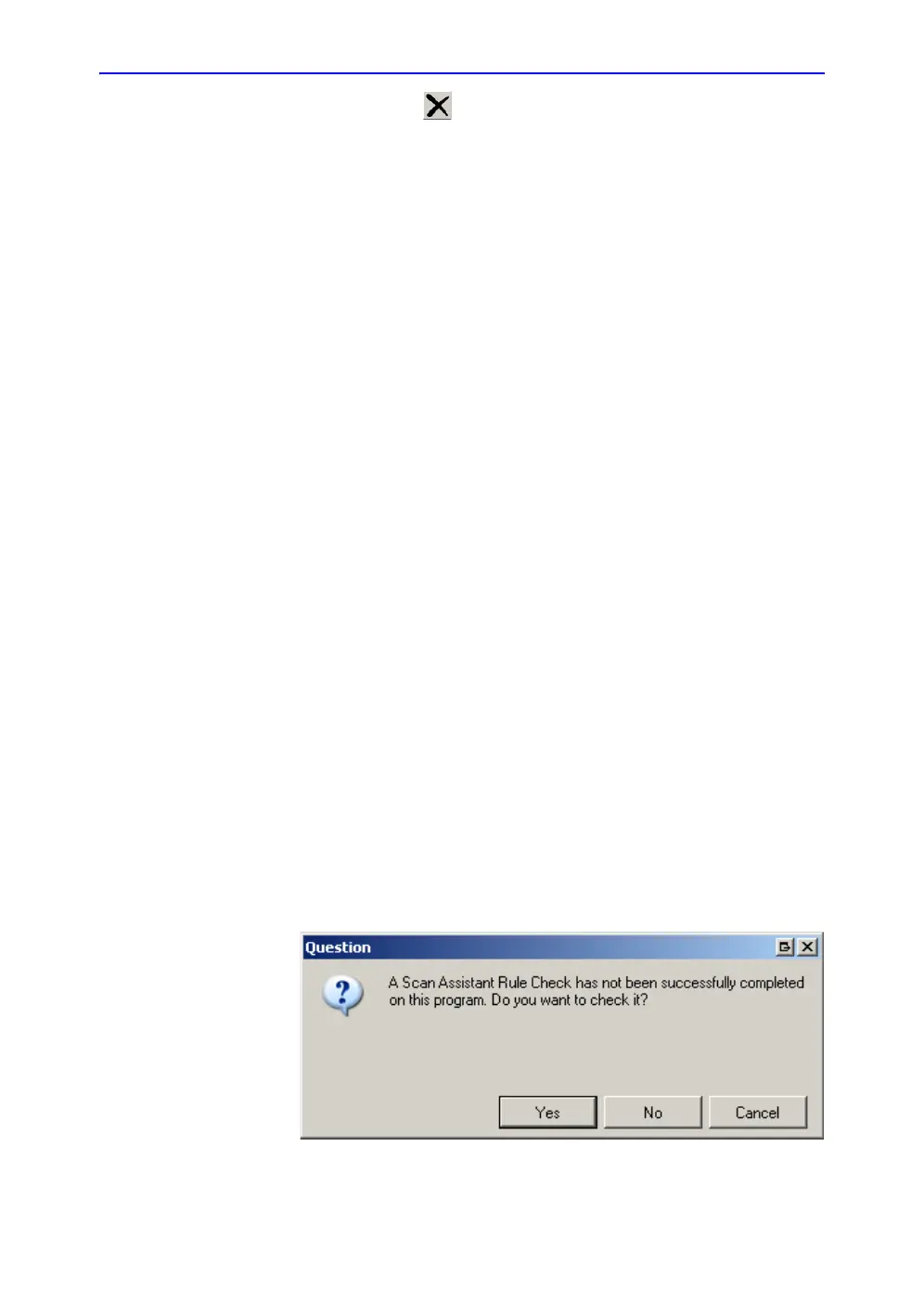

Figure 12-64. Protocol check dialog
