Peripherals
14-18 Vivid S70 / S60 – User Manual
BC092760-1EN
01

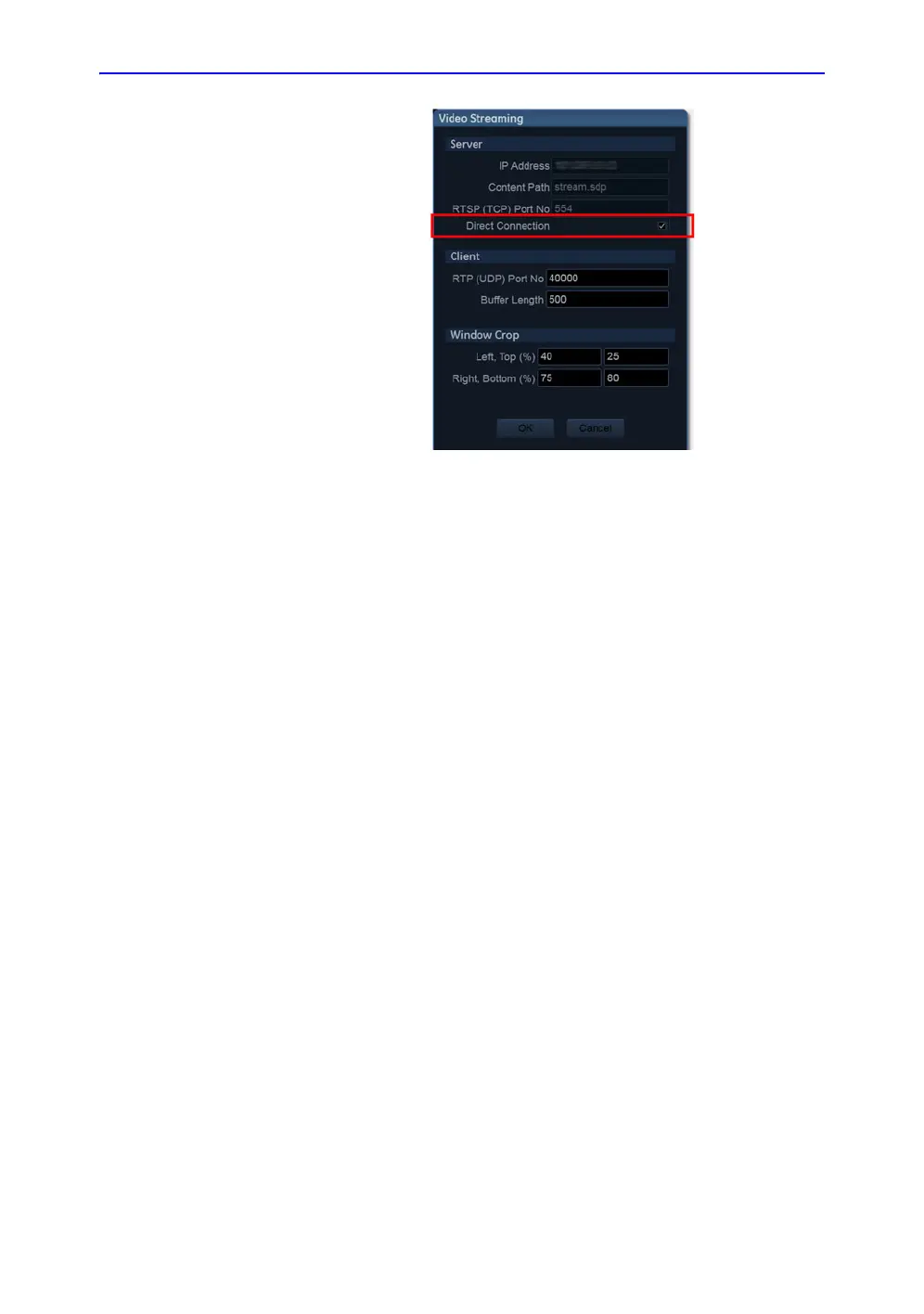

Figure 14-12. Activate Direct Connection
Selecting Direct Connection enables the View-X Direct
button on the Utility page which will set the ultrasound
system to a static IP so it can connect to the factory default
static IP on the Epiphan DVI Broadcaster.
4. Select OK to exit.
5. Log out of the ultrasound system.
Adjust Cropping of the Video Stream
Overview
By adjusting the Window Crop values, the user can crop
incoming video stream. This way only a useful/interesting part of
the video can be shown. The aspect ratio is preserved.
