Tissue Synchronization Imaging (TSI)
Vivid S70 / S60 – User Manual 5-35
BC092760-1EN 01
Tissue Synchronization Imaging
(TSI)
TSI overview
TSI calculates and color-codes the time from detected QRS to a
detected event, typically the time to peak systolic velocity.

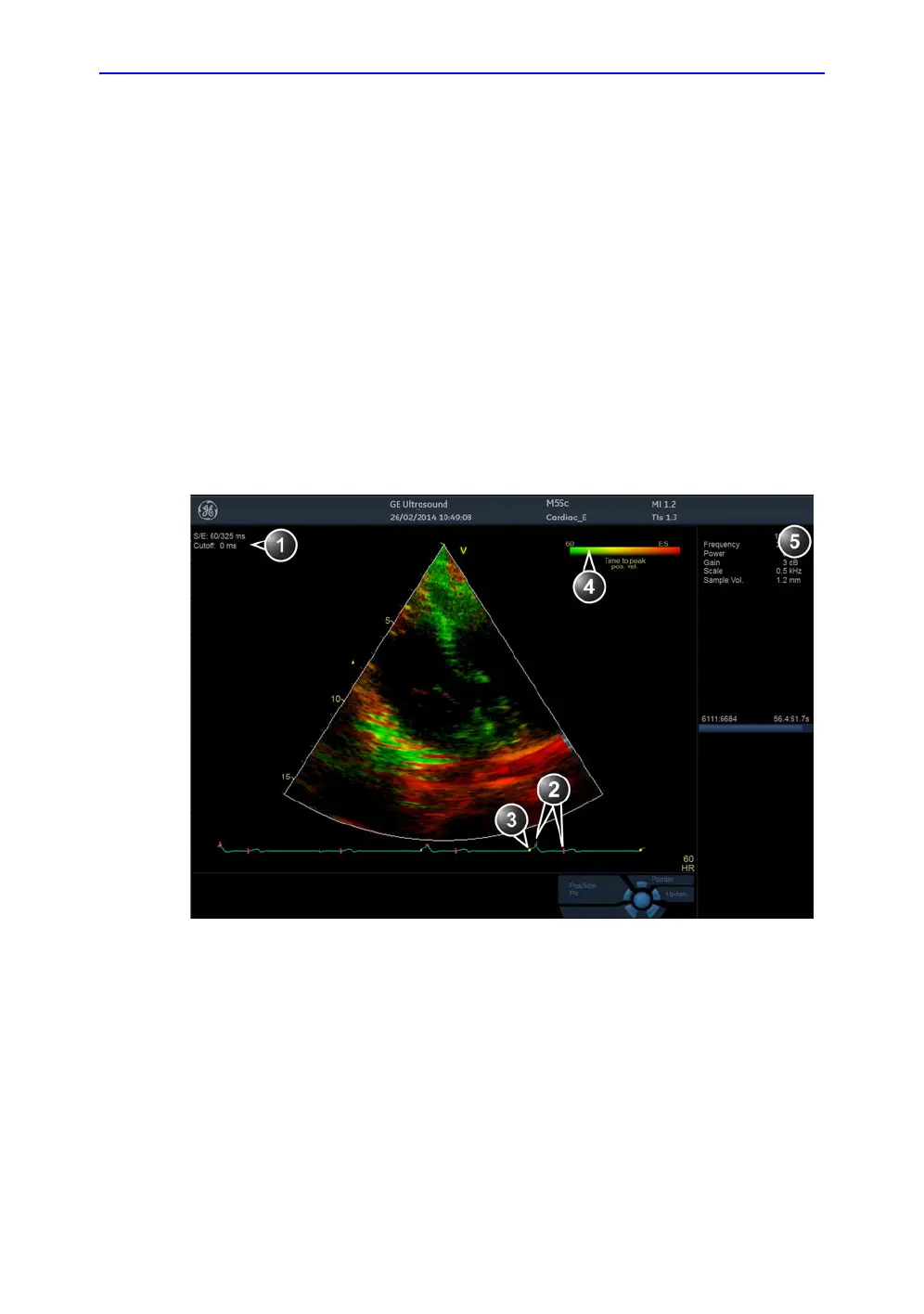

Figure 5-19. The TSI mode screen
1. TSI start/end and TSI Cut-off
2. TSI start and end markers
3. QRS marker
4. TSI color bar
5. Parameter window
