GE Vivid S60

Control panel
Vivid S70 / S60 – User Manual 3-37
BC092760-1EN 01
Trackball area
Different functions can be assigned to the trackball.
The trackball functions are organized in functional groups which
are displayed below the image area of the screen. The
Trackball key (Figure 3-22, [3]) is used to toggle between the
functional groups.
Each functional group can have one or more functions. The
Select key (Figure 3-22, [2]) is used to toggle between the
functions within the active group.

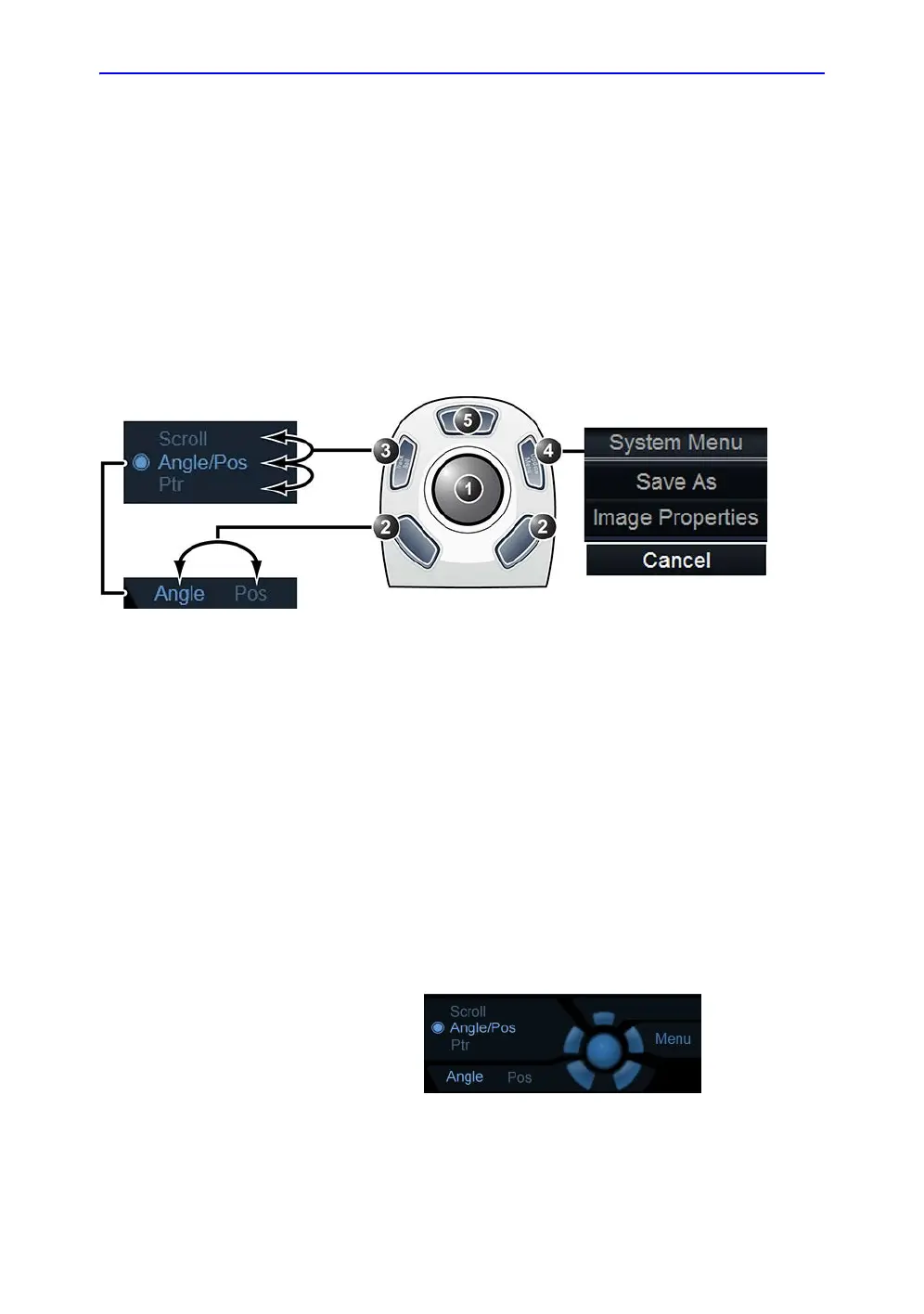

Figure 3-22. The Trackball area
The current active state of the trackball is displayed on the
bottom of the display (Figure 3-23).
Figure 3-23. Trackball assignment graphical display
1. Trackball:
• Adjusts the selected control.
• Moves the pointer.
2. Select keys:
• Toggles between the functions within the active group.
• Performs the selected control or highlighted menu item.
3. Trackball key: Toggles between trackball functional groups.
4. Update/Menu key:
• In Freeze: Displays a pop-up System menu.
• In Live duplex mode (Doppler or M-mode): Toggles Live/Freeze between the 2D image and the
spectrum image.
5. Upper key: Configurable as either a select key, a pointer, an Image store button, or an Image cursor
(see page 12-17).
