Main display adjustment
Vivid S70 / S60 – User Manual 3-45
BC092760-1EN 01
Lock the main display
1. Turn the release knob counter-clockwise to raise the lock.
2. Move the main display sideways to lock the arm’s joints.
3. Push the display down into parked position.

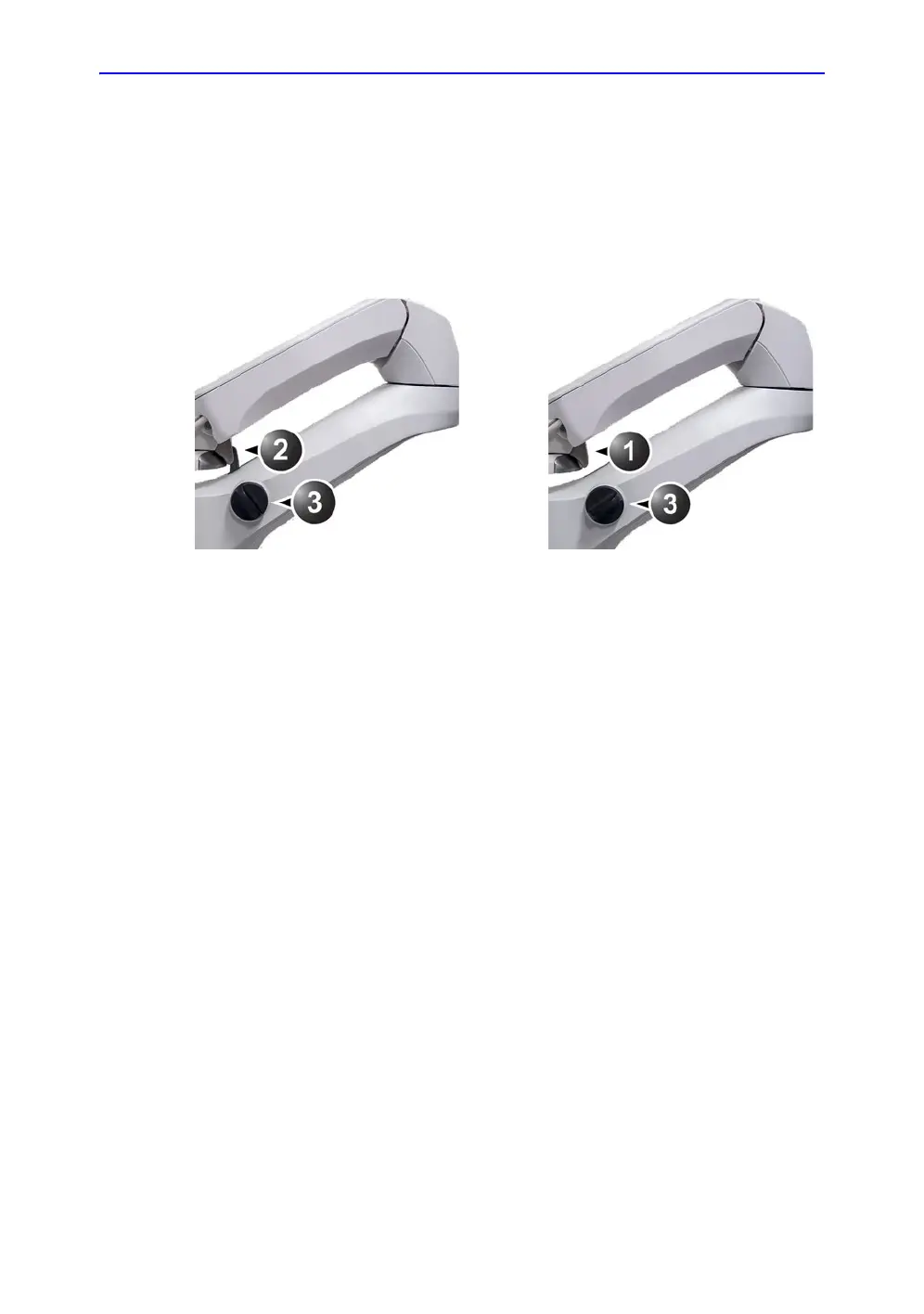

Figure 3-31. Main display locking mechanism
Image Adjustment
Adjusting the monitor's contrast and brightness is one of the
most important factors for proper image quality. If these controls
are set incorrectly, the Gain, TGC, Dynamic Range and even
Power Output may have to be changed more often than
necessary to compensate.
To select different image size, see ‘Flexible Video Out’ on
page 14-9
Using monitor adjustment Touch panel Controls
• Activate the main menu on the touch panel.
• Tap the LCD setup tab. The touch-panel will display several
screen adjustments controls (Figure 3-32).
These screen controls allow the user to optimize the screen
settings.
1. Unlocked main display
2. Locked main display
3. Release knob
