Scan Assist Pro Creator
Vivid S70 / S60 – User Manual 12-79
BC092760-1EN 01

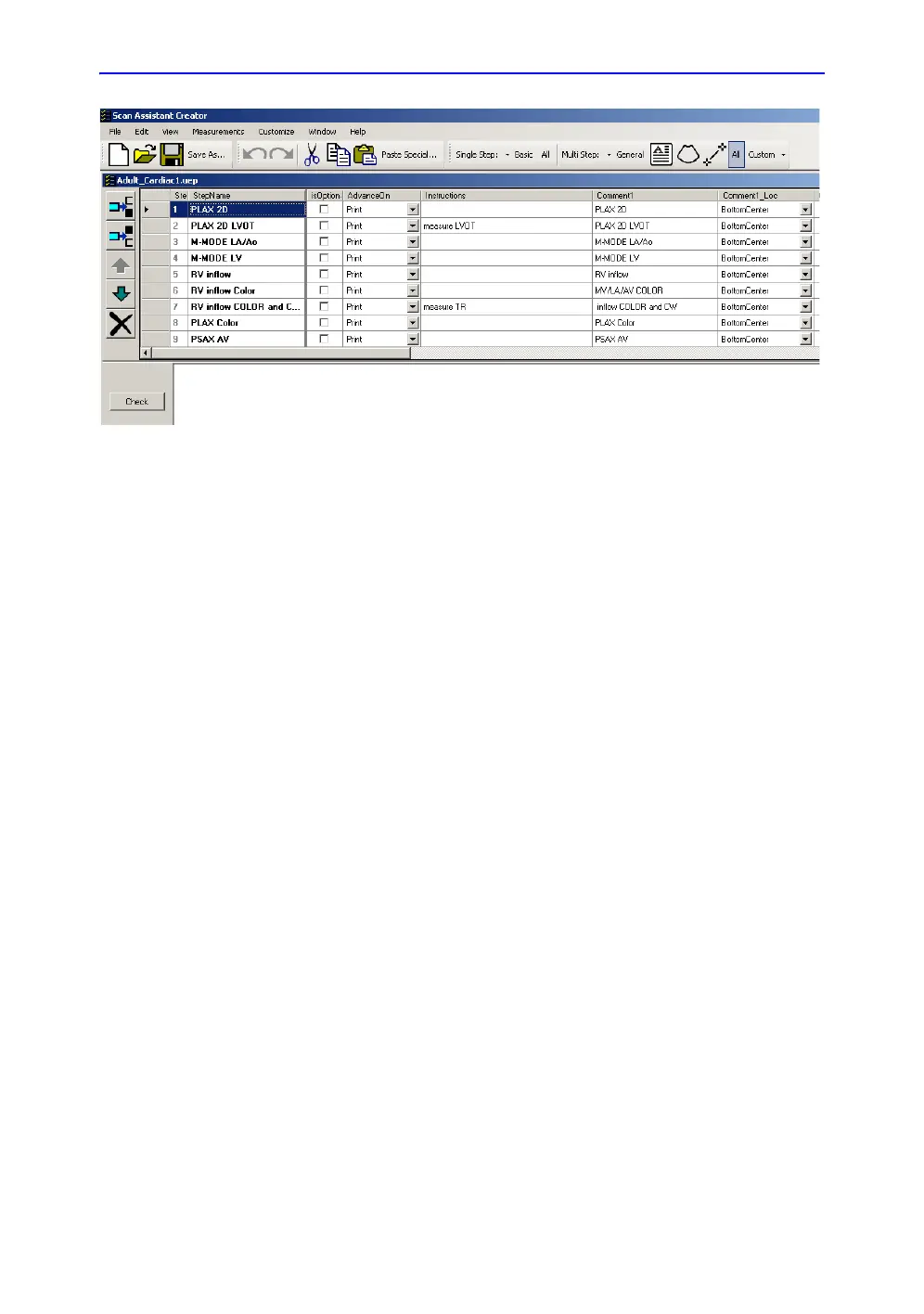

Figure 12-62. Scan Assist Pro Creator screen
On-system
1. Press Protocol on the Control panel and Config on the
Touch panel. Log on if required.
The Scan Assist Pro sheet is displayed (Figure 12-59,
page 12-76).
2. To edit an existing Protocol, select the Protocol in the
Available Protocols field on the left-hand side of the Scan
Assist Pro sheet.
3. Select Edit to start the Scan Assist Pro Creator.
File handling
Off-system directory structure
When using Scan Assist Pro Creator off-system, it is important
to organize the Protocols in a way that will make it easy to
import them onto the system. All Protocols must be stored in a
VIVID_SCAN_ASSIST directory. Within this directory, one or
more user-specified directories can be created. Within each of
these user-specified directories are the category directories
(Abdominal, Cardiac, etc.) that hold the actual Protocols.
To specify the directory structure:
1. In the Scan Assist Pro Creator, select File/Directory.
The Directory configuration window is displayed.
