The Scanning screen

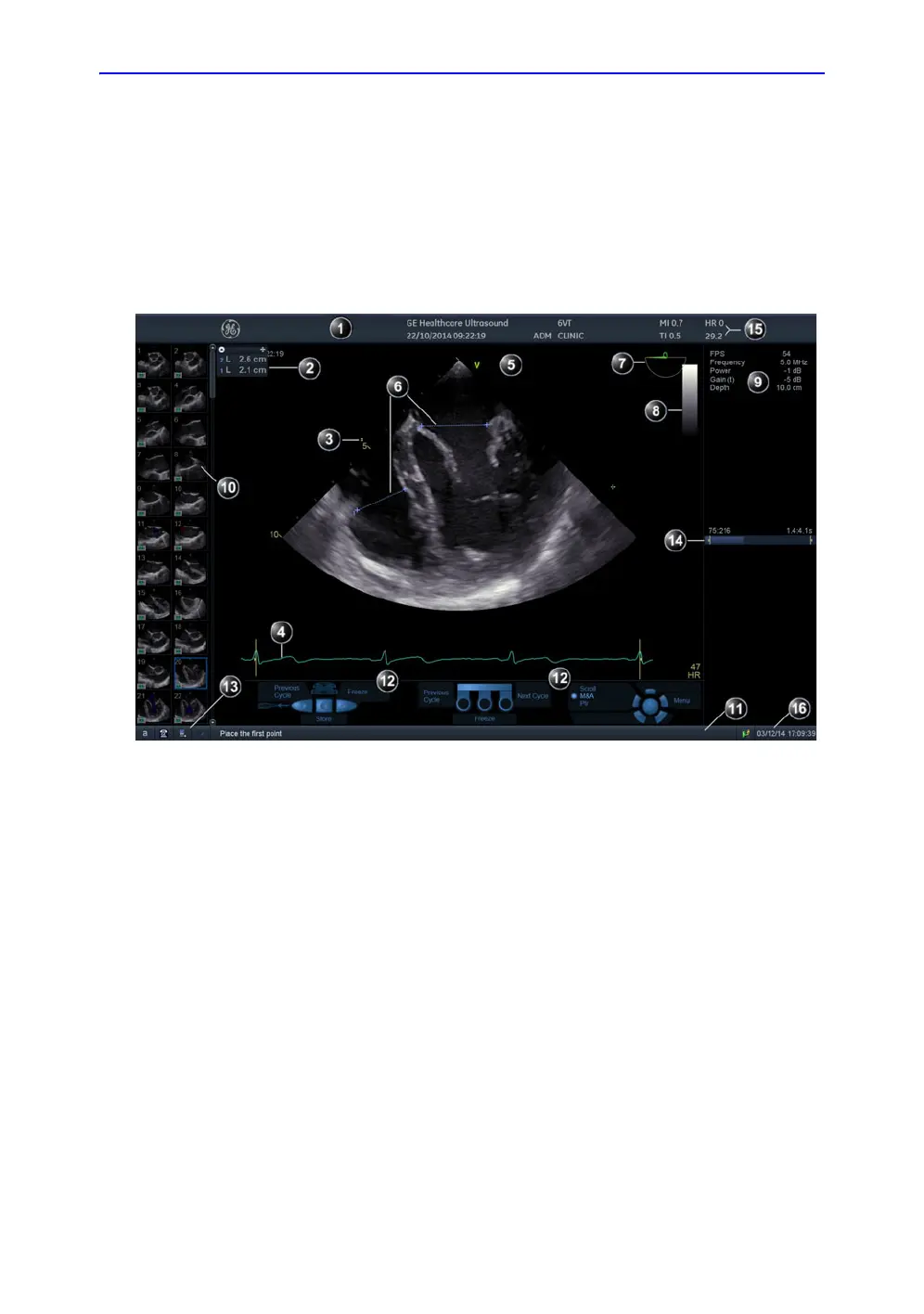

Figure 3-20. The scanning screen (composite)
The scanning screen is divided in several areas as follows:
1. Title bar
- Current patient data
- Institution
- Operator ID
-Probe
- Application
- Mechanical & Thermal Index
2. Measurement result table
3. Depth scale
4. Physiological traces, ECG, Phono, Resp
5. Probe orientation marker
6. Measurement
7. Scanplane indicator (TEE probe/4D probe)
8. Greyscale/Color bar
9. Parameter window
10. Clipboard
11. Prompt/Status information
12. - Trackball assignment
- Footswitch pedal assignments
- TEE probe button assignments
13. - Caps lock on/off
- Access to service platform
- Network status
14. Frame counter and timer
15. Probe surface temperature indicator (only
appears when a TEE probe is selected)
16. Current, real-time display of Heart-rate, Date
and time
