Stress Echo
7-4 Vivid S70 / S60 – User Manual
BC092760-1EN
01
Image acquisition
Images are acquired in a pre-defined order, according to the
selected template. The highlighted cell (green) of the matrix,
displayed in the Clipboard window indicates which view is
currently being acquired (see Figure 7-2). The names of both
the view and the level for the current cell is displayed on the top
corner of the image area and under the template matrix.

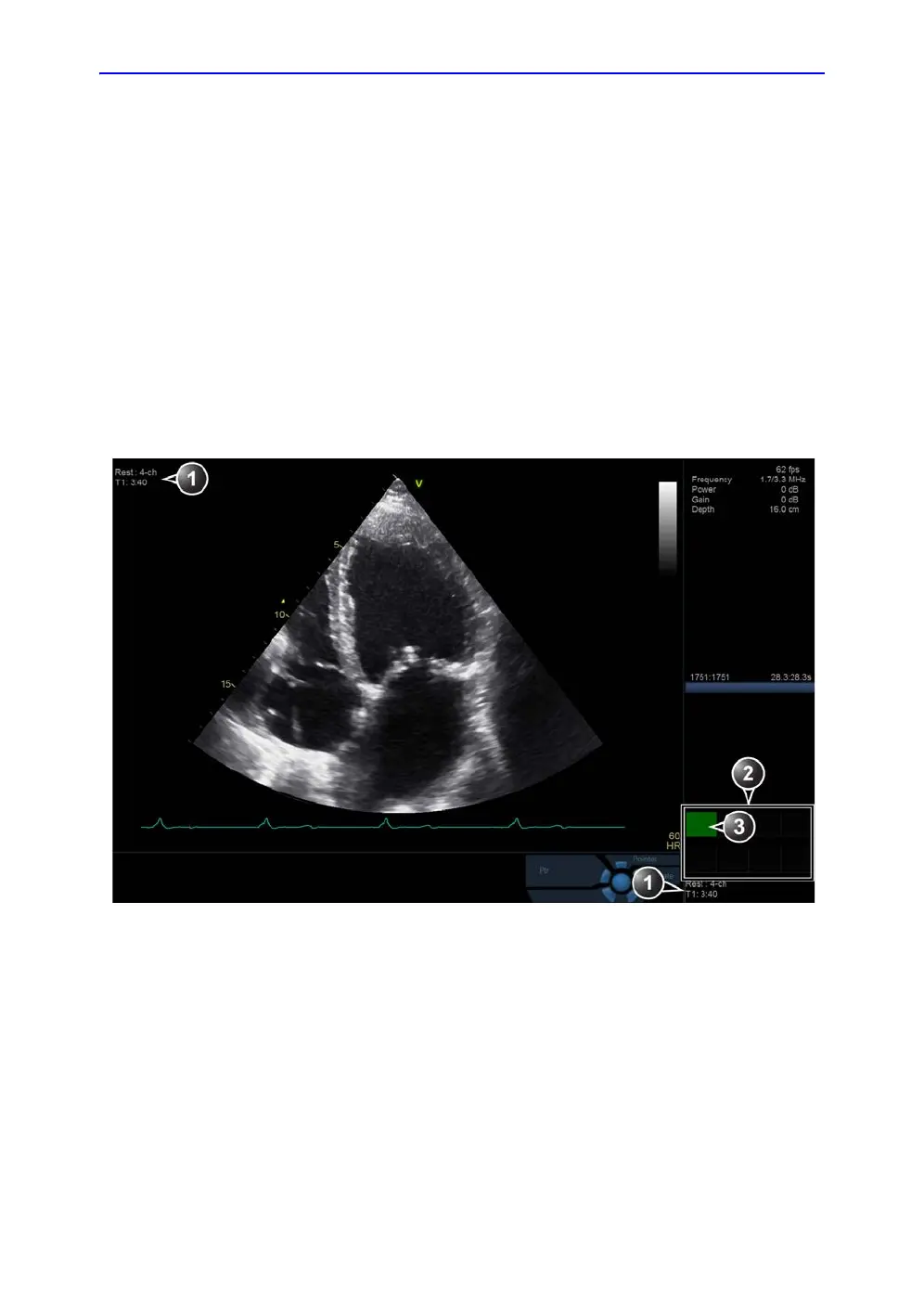

Figure 7-2. The stress mode acquisition screen
1. Current view, level and timers
2. Template matrix view and level
3. Current view (Green cell)
