4D-Mode
Vivid S70 / S60 – User Manual 6-3
BC092760-1EN 01
4D-Mode
Volume rendering screen

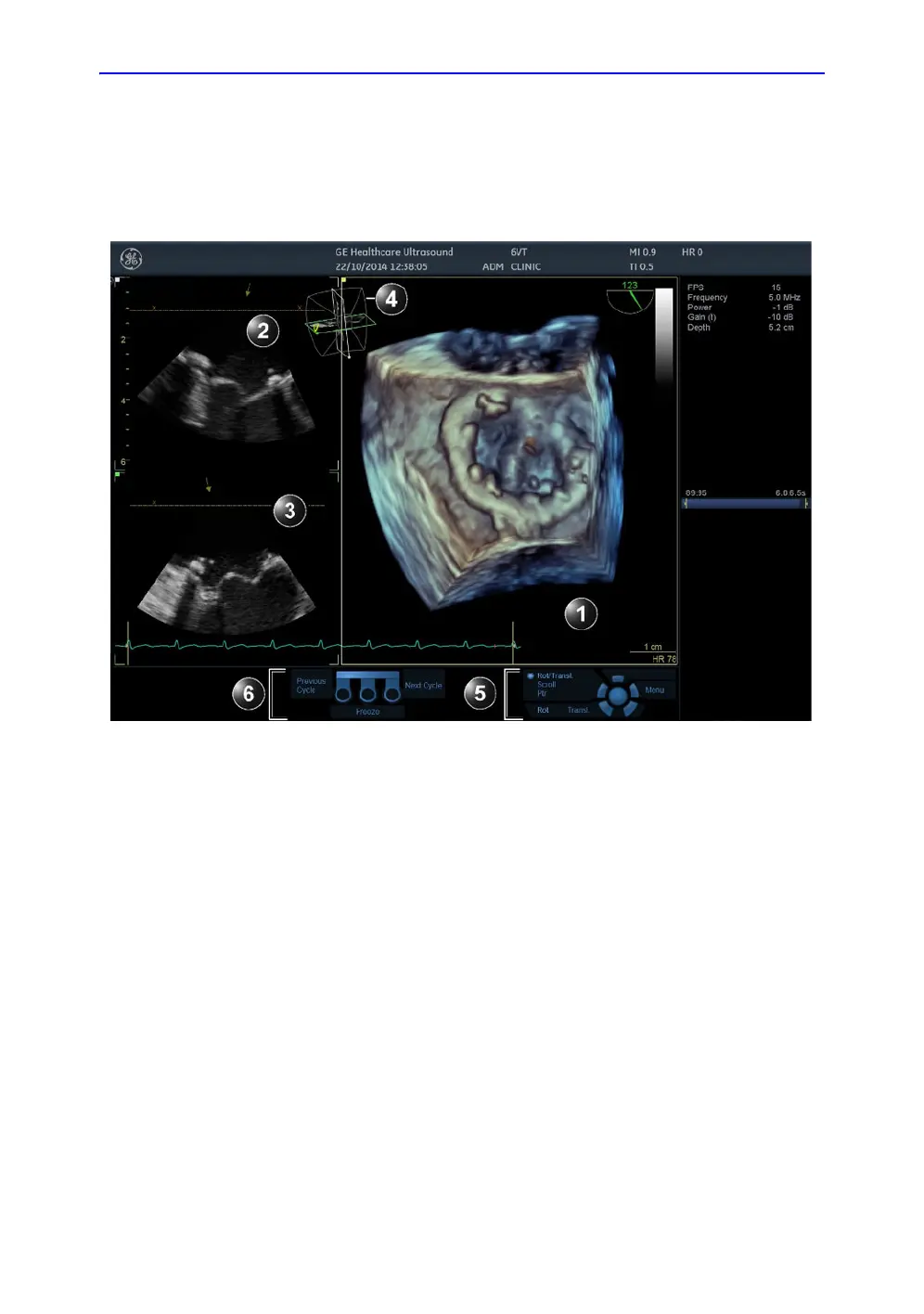

Figure 6-1. The 4D-Mode screen (Volume rendering)
1. Volume rendering.
2. 2D image in the azimuth plane. The arrow indicates the viewing direction onto the volume rendering
relative to the azimuth plane.
3. 2D image in the elevation plane. The arrow indicates the viewing direction onto the volume rendering
relative to the elevation plane.
The brown line with X indicates the cropping applied to the Volume rendering.
4. Orientation window: displays a three-dimensional scene with acquisition sector and 2D image positions.
5. Trackball functions
6. Footswitch functions (option)
