System Overview
Vivid S70 / S60 – User Manual 3-9
BC092760-1EN 01
System Overview
Getting to know the system

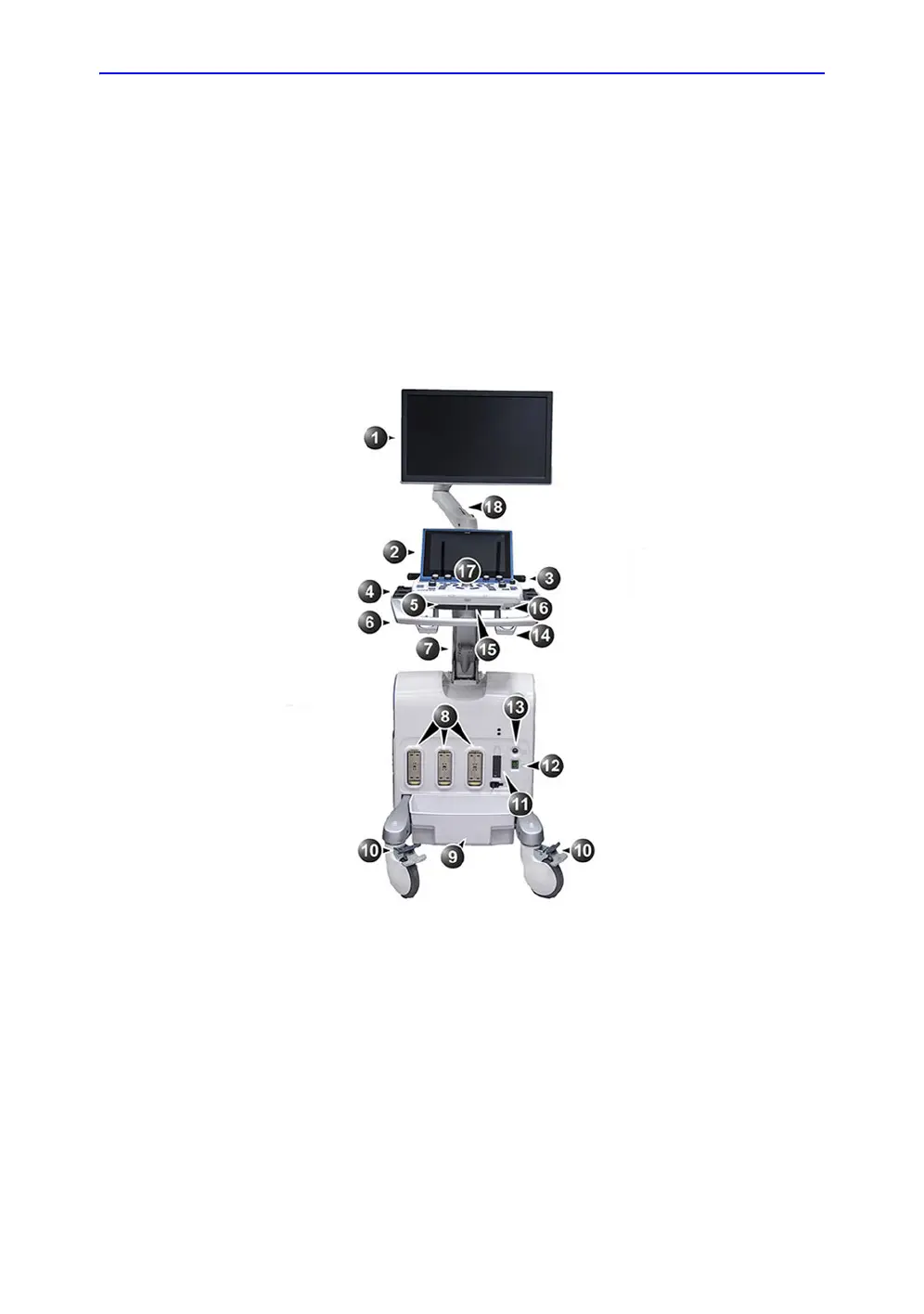

Figure 3-4. Vivid S70 / S60 (front)
1. Main display monitor
2. Touch panel
3. Rear handle
4. Probe and gel holder on both sides of control panel
5. Pull-out alphanumeric Keyboard (option)
6. Front handle
7. Up/down "Flex-Fit" arm
8. Probe connectors (DLP type)
9. Probe-cable management tray (removable)
10. Front-wheel with foot-break
11. Probe connector (RS type for TEE probe)
12. ECG cable connector
13. Doppler Pencil Probe Connector
14. Probe-cable hooks
15. Up/Down & Left/right swivel release lever
16. Front USB port
17. Control panel
18. Articulated arm for display monitor
