Prepare the System for Use
3-26 Vivid S70 / S60 – User Manual
BC092760-1EN
01
Connect and disconnect probes
Connect the probe
Probes can be connected at any time, whether the system is on
or off.
The system has two types of probe ports: one RS probe port
and three DLP probe ports (Figure 3-16).

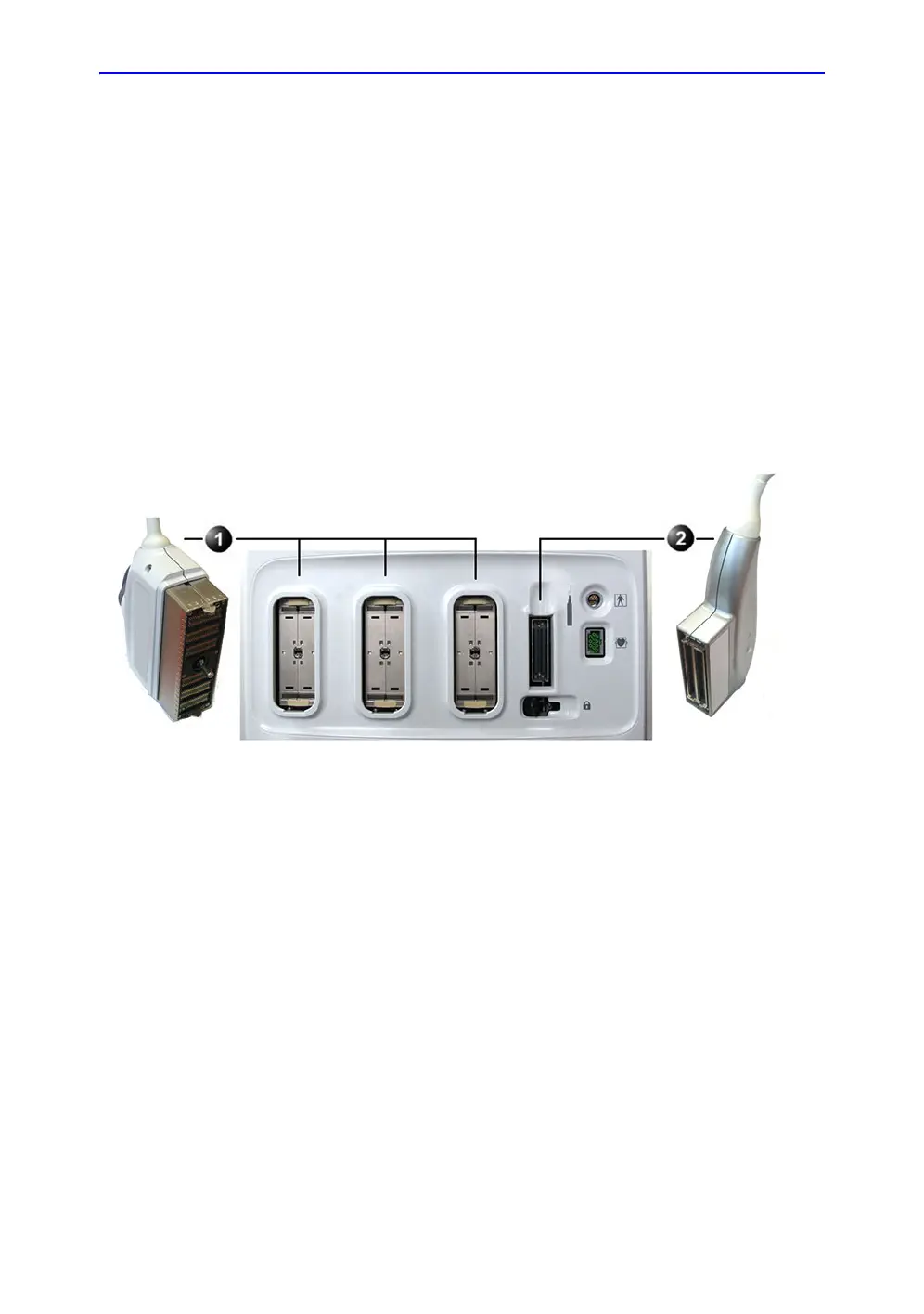

Figure 3-16. Probe ports
1. Before connecting the probe:
• Inspect the probe and the probe cable for any damage.
• Do a visual check of the probe pins and system sockets.
Remove any dust or foam remains from the probe pins.
2. Hold the probe connector vertically with the cable pointing
upward.
3. Turn the connector locking handle counterclockwise.
4. Align the connector with the probe port and carefully push
into place.
5. Turn the locking handle clockwise to the full vertical position
to lock in place.
6. Position the probe cable so that it is not resting on the floor.
1. DLP Probe port
2. RS Probe port
