Data Backup and restore
Vivid S70 / S60 – User Manual 10-57
BC092760-1EN 01
Backup procedure
1. Press Patient.
2. In the Archive screen, select the dataflow Local Archive -
Int. HD.
3. Press Utility/Config on the Touch panel.
4. Select the category Admin.
5. Select the Backup sheet.

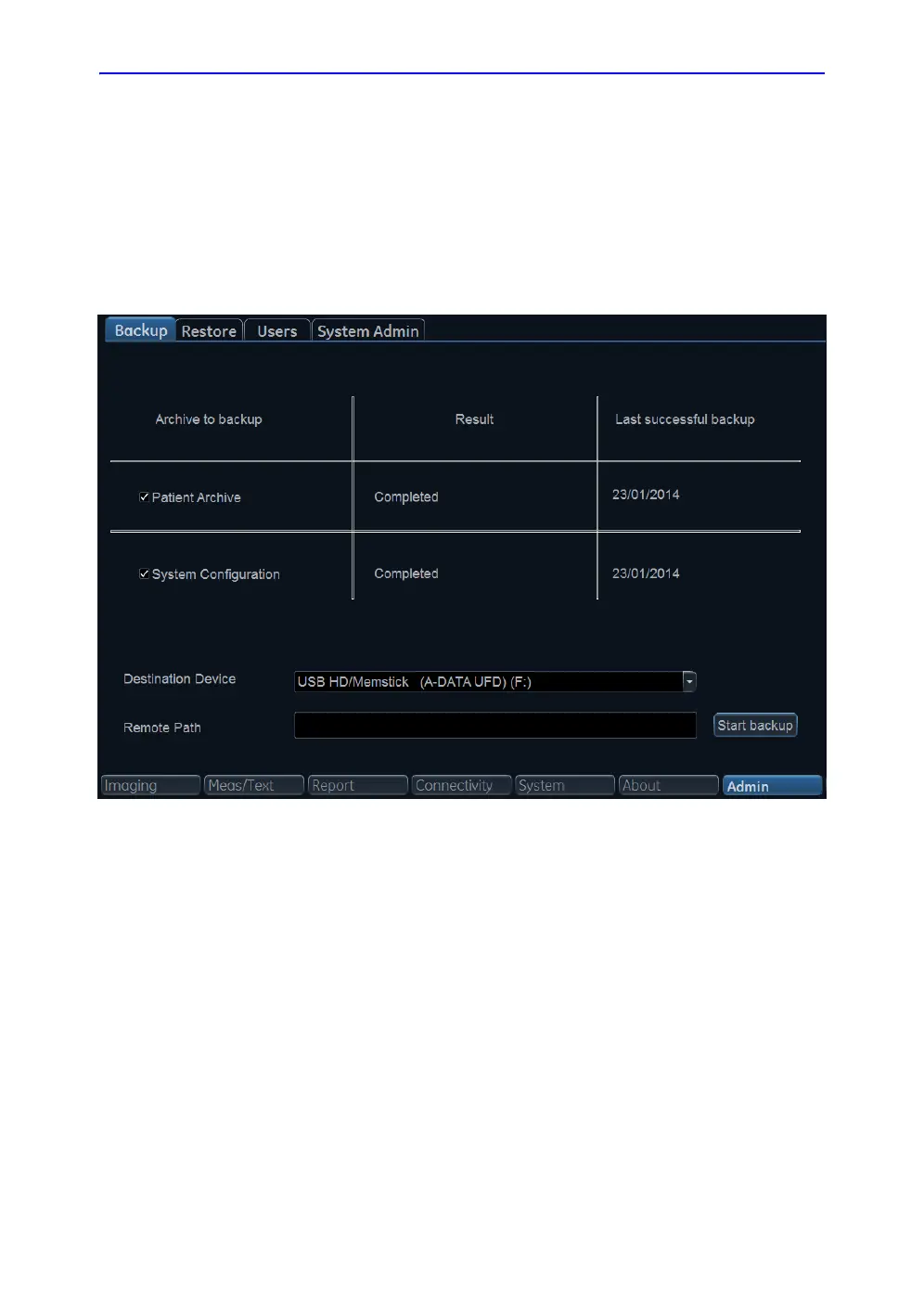

Figure 10-34. The Backup sheet
6. In the Backup sheet select as needed:
• Patient archive to backup the patient records.
• System configuration to copy system settings and
user presets.
7. Select a removable media or a shared network folder as
destination.
NOTE: To be able to select a network share folder, the path (of type:
\\server-name\share-name) must have been entered in the
Remote path field.
8. If the backup is done to a removable media, insert a
dedicated media in the drive.
9. Select Start backup.
