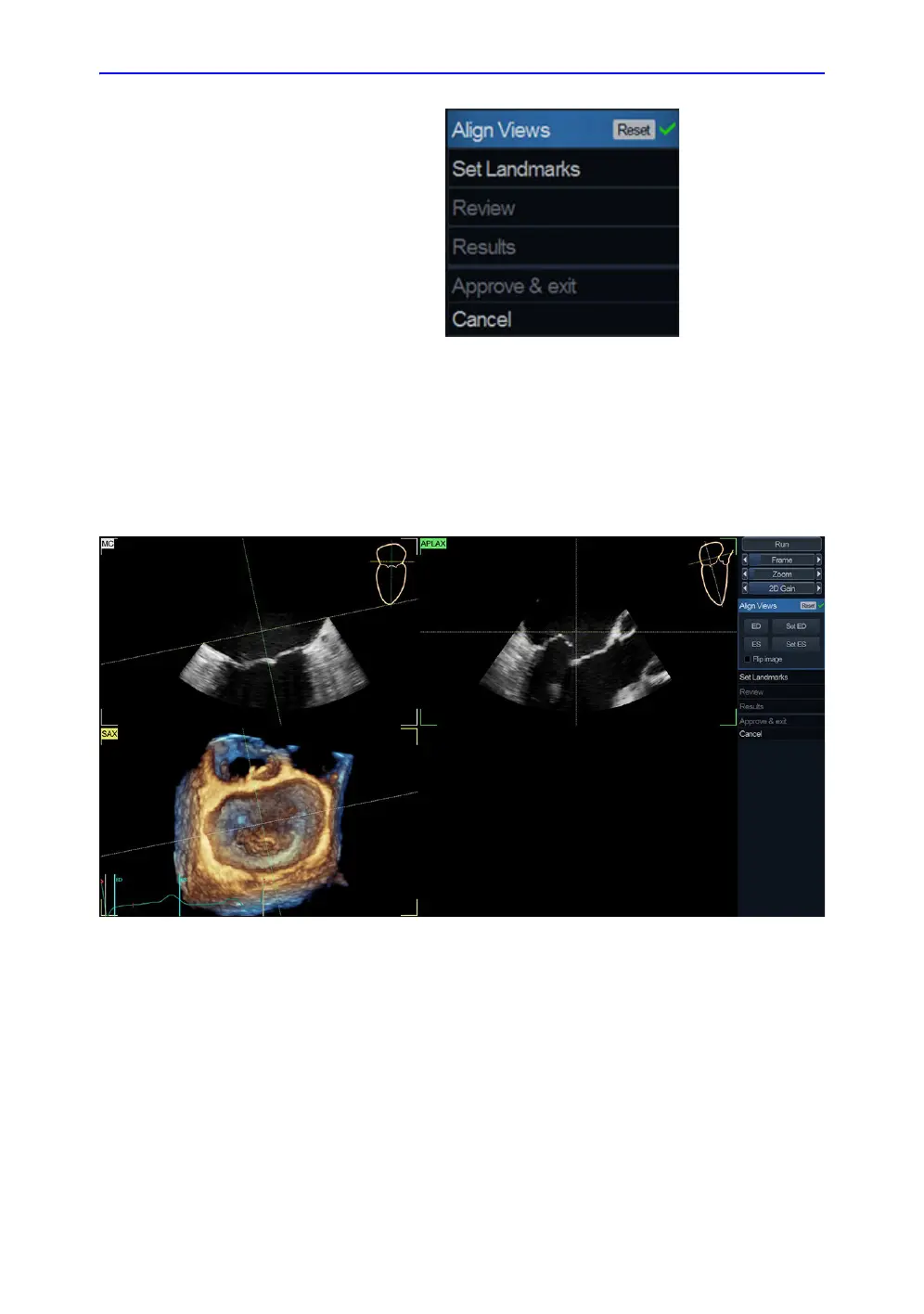

Figure 8-35. Measurement menu
Align Views
Align Views stage presents to the user two long axis slices
(90-degree rotated with respect to each other) and short axis 3D
view at the annulus plane (Figure 8-36).
Figure 8-36. Align Views screen
The alignment of the data must be performed in order to identify
standard views: Mitral-Commissural view (MC, top left),
Antero-Posterior Long Axis view (APLAX, top right) and short
axis 3D view aligned with MV annulus (Figure 8-36).
