Multi-plane mode
Multi-plane mode is an option available on Vivid S70.
Bi-plane mode screen

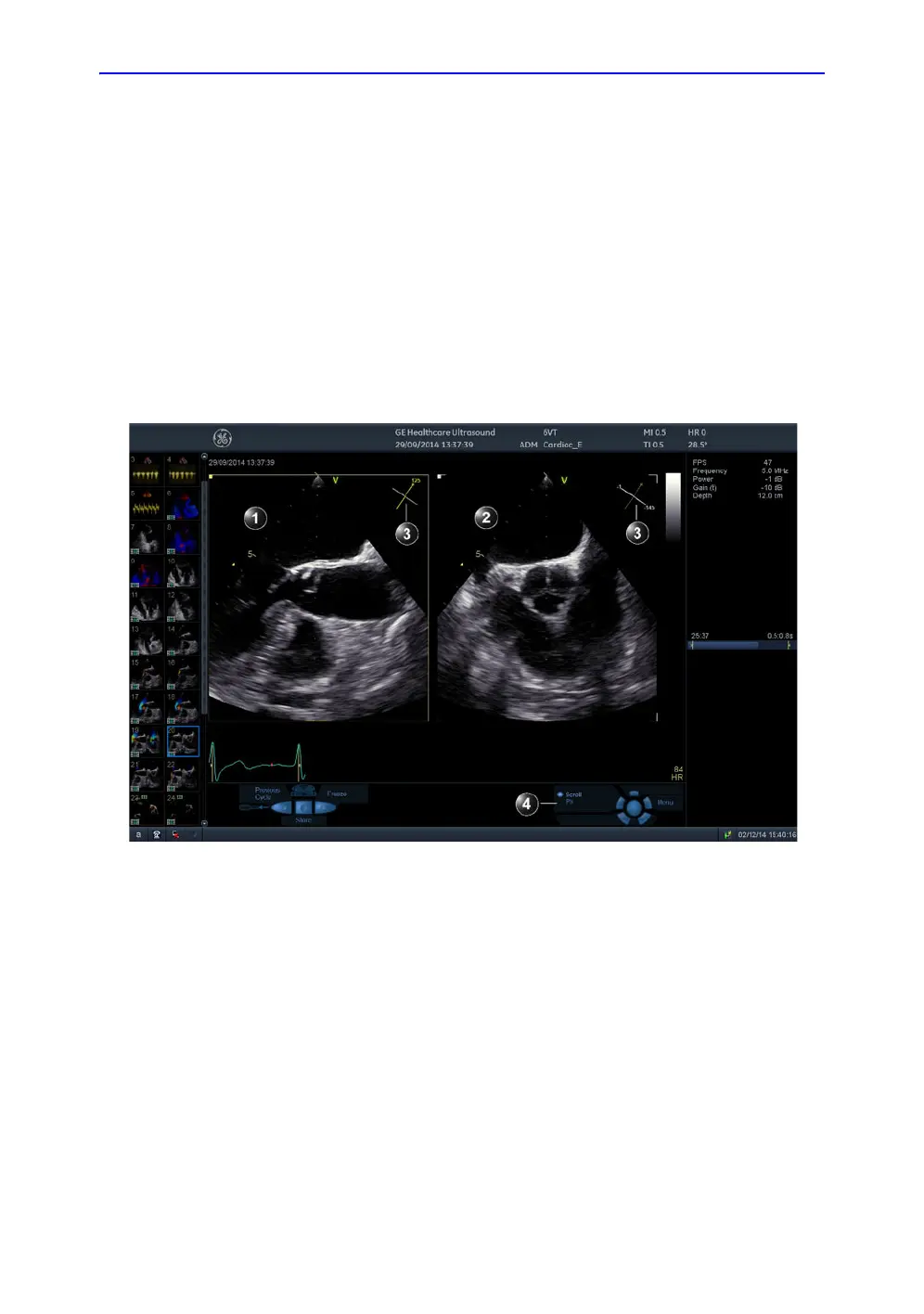

Figure 6-18. The Bi-plane imaging mode screen
1. Scan plane 1 (yellow): default reference scan plane. This scan plane can be rotated together with scan
plane 2, but it cannot be tilted.
2. Scan plane 2 (white): this scan plane is by default perpendicular to scan plane 1 along the scanning
axis. This scan plane can be tilted and rotated.
3. Navigator: displays the position of both scan planes as seen from the probe. The rotation angle for scan
plane 1 and the rotation and tilt angles for scan plane 2 are indicated in the corresponding view.
4. Trackball functions
