System Overview
Vivid S70 / S60 – User Manual 3-21
BC092760-1EN 01
Wired Footswitch (Option)
You can attach this Footswitch to the system by connecting it to
one of the USB port on the rear of the system.

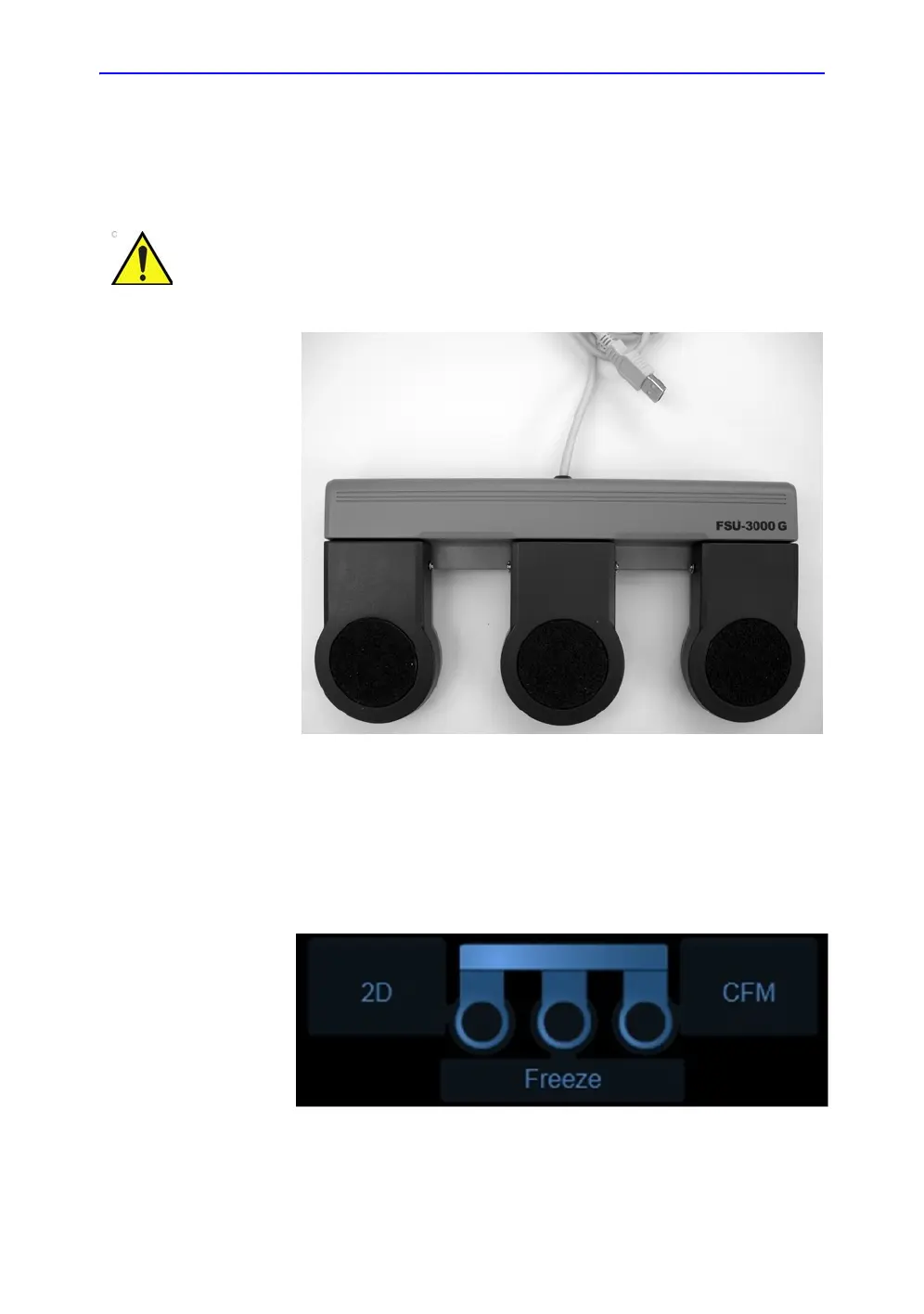

Figure 3-12. Footswitch and USB Cable
This is a 3-pedal Footswitch. You can configure its functionality
from the Config/Imaging/Application (see page 12-22).
The graphic on the bottom of the main screen can be configured
to show the functional assignment of the different pedals. See
the example in Figure 3-13.
Figure 3-13. Footswitch functional assignment
To avoid damage of the cable, keep the cable away from the
wheels. Disconnect the Footswitch before moving the system.
