Customize Configuration
12-22 Vivid S70 / S60 – User Manual
BC092760-1EN
01

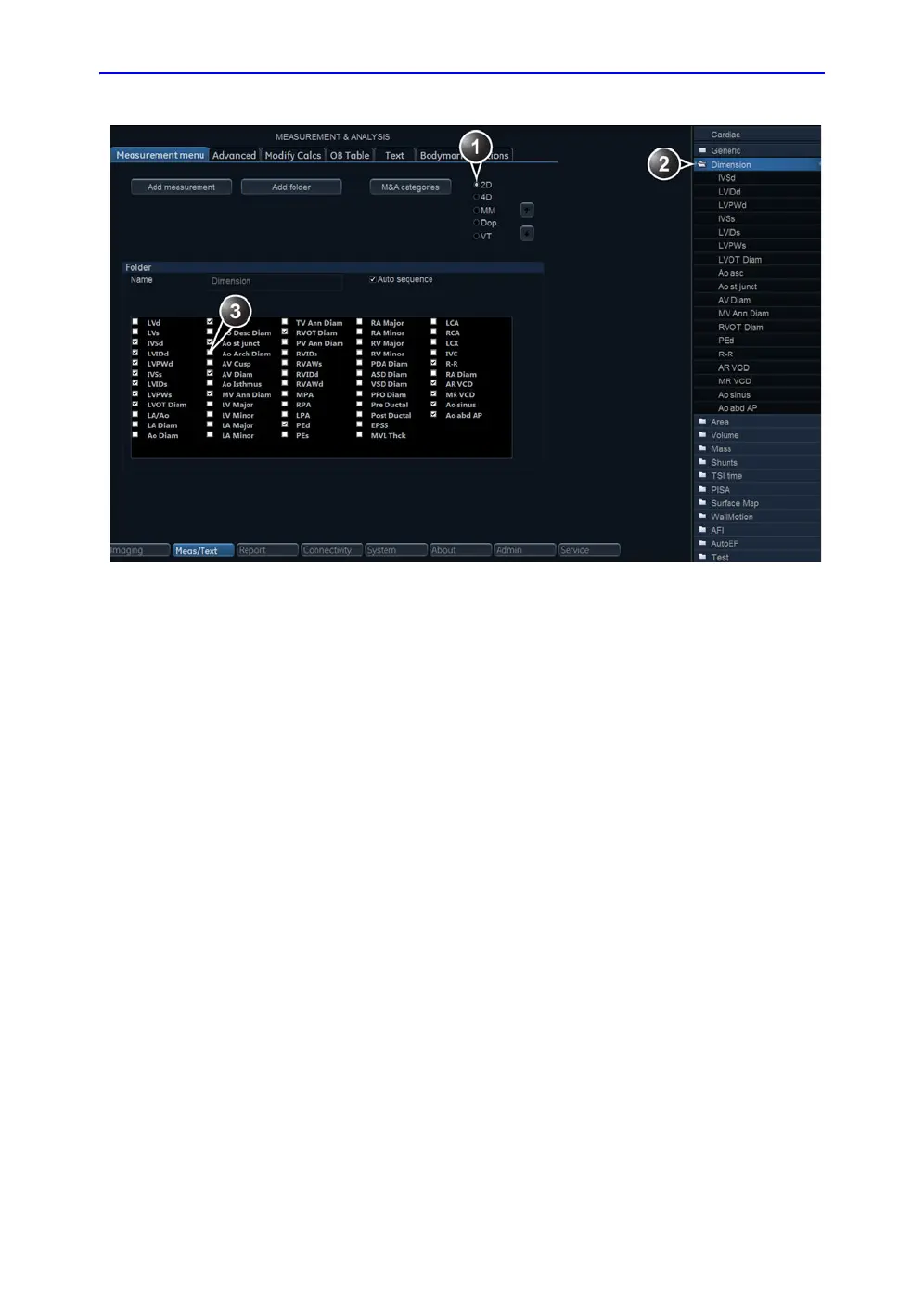

Figure 12-10. Configuration of the Measurement menu
Configuration of the Measurement result table
If AV CO calculation is not displayed in the Measurement result
table, follow the following procedure:
1. Press Utility/Config on the Touch panel and select the
Config category Measure/Text.
The Measurement menu sheet is displayed.
2. The AV CO calculation is based on Doppler AV Trace
measurement in the folder Aortic, check Doppler in the
Measurement menu sheet and select the folder Aortic.
A list of all available measurements and calculations for the
selected folder is displayed in the Measurement menu
sheet.
NOTE: Entries in green are calculated measurements.
3. In the Measurement menu sheet, double-click on the
AV Trace measurement.
A list of all available output parameters for the AV Trace
measurement is displayed in the Measurement menu sheet.
1. Select the scanning mode for the measurement to add to the Measurement menu.
2. Select the folder for the measurement to add.
3. Select the measurement to add.
