4D and Multi-plane Modes
6-14 Vivid S70 / S60 – User Manual
BC092760-1EN
01
3. Press 4D on the Control panel to acquire 4D data in the
defined zoom area.
NOTE: You can do a single beat (see page 6-7) or a multi beat (see
page 6-8) acquisition.
NOTE: The tissue sector is slightly increased if entering 4D Color
Flow mode.
4. Press Store to store the acquisition.
4D Color Flow mode
Volume rendering screen

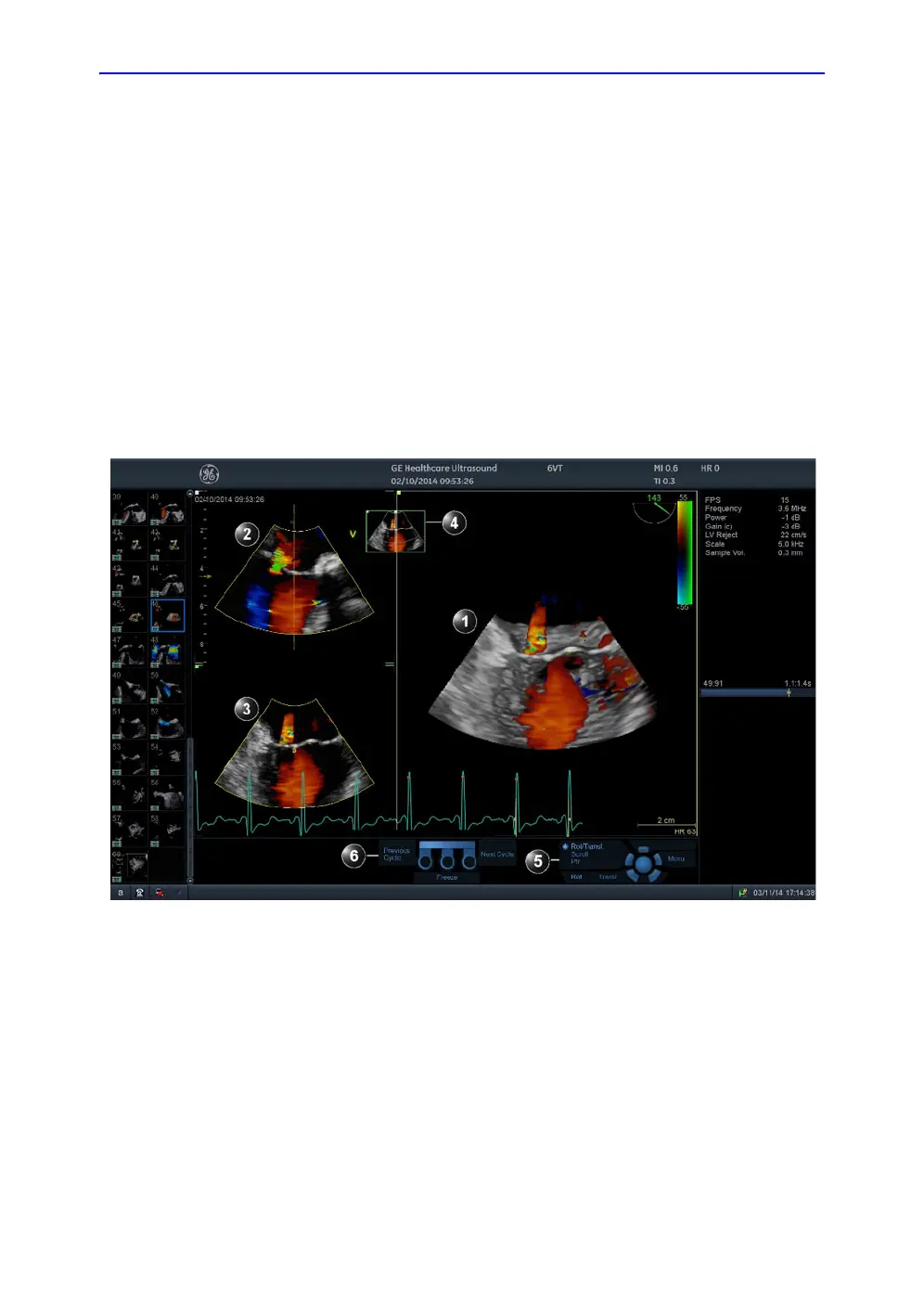

Figure 6-8. 4D Color Flow screen (Volume rendering)
1. Volume rendering display with Color Flow
2. 2D Color Flow image in the azimuth plane. The arrow indicates the viewing direction onto the volume
rendering relative to the azimuth plane.
3. 2D Color Flow image in the elevation plane. The arrow indicates the viewing direction onto the volume
rendering relative to the elevation plane.
4. Orientation window: displays a three-dimensional scene with acquisition sector and 2D image positions.
5. Trackball functions
6. Footswitch functions (option)
