Prepare the System for Use
3-42 Vivid S70 / S60 – User Manual
BC092760-1EN
01

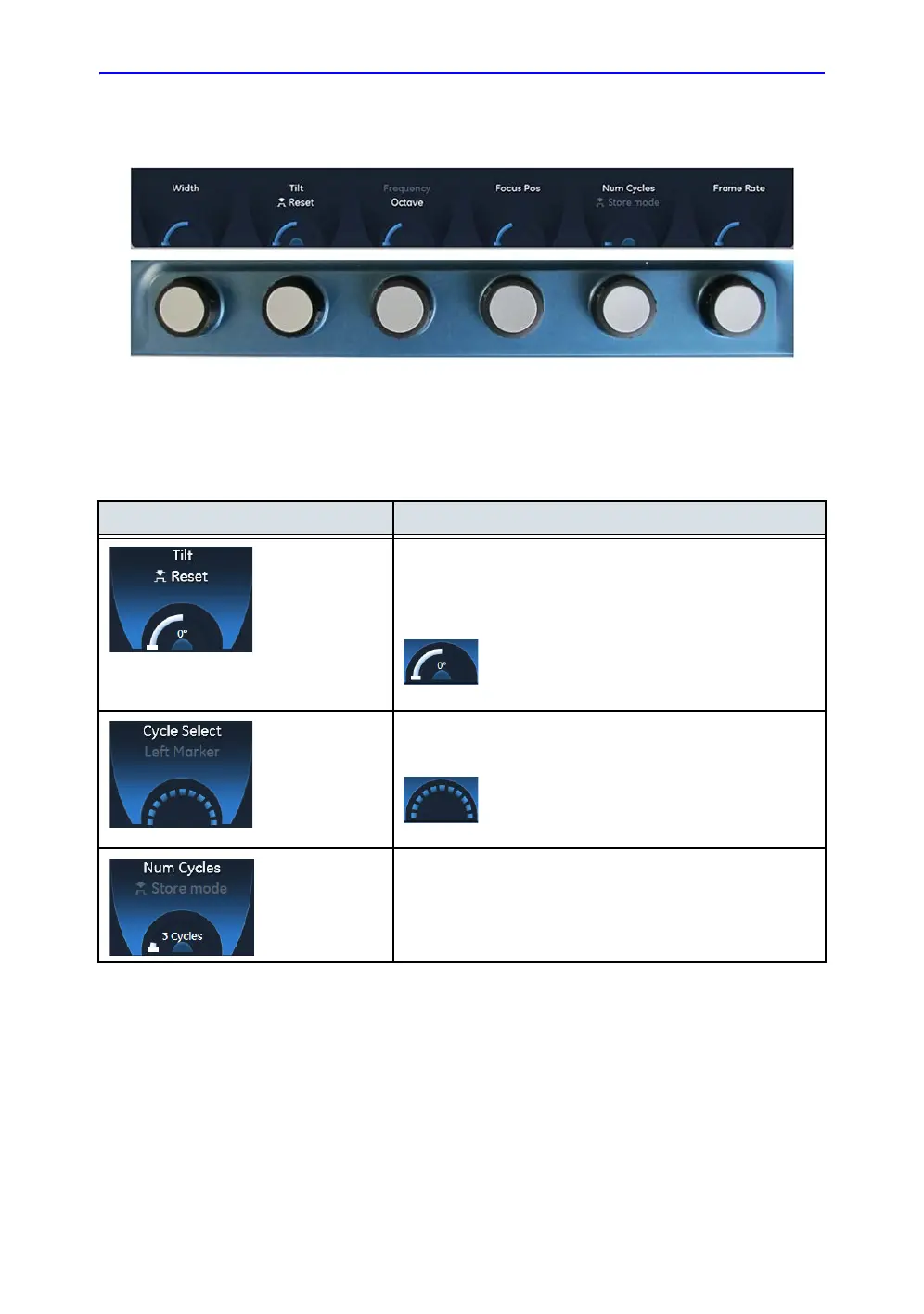

The Rotary/Push buttons
Figure 3-28. The Rotary/Push buttons
At the bottom of the Touch panel, there are six rotary/push
buttons. The functionality of these buttons changes, based on
the active mode/function.
The alphanumeric keyboard (option)
A touch alphanumeric keyboard can be activated on the touch
panel by the user. Additionally, a physical alphanumeric
keyboard can be optionally installed on the system. In this case
the keyboard is situated under the control panel, in a drawer
which can open and close.
Rotary/Push button Description
Rotate/Push Reset control:
• Rotate the knob to adjust the upper parameter (e.g. Tilt)
• Press the knob reset the upper parameter to its default
(preset) value.
The parameter value appears only during adjustment.
: Gauge indicating that the control can be adjusted
within a pre-defined range.
Rotate/Push Toggle control: Press the knob to toggle the
selection of the two parameters and rotate the knob to adjust
the selected parameter.
: Gauge indicating that the control has no
pre-defined range.
Rotate/Push Swap control
• Rotate the knob to adjust the upper parameter (e.g. Num
Cycles)
• Press the knob to swap the upper control (e.g. Num Cycles
vs. Timespan).
