4D Auto AVQ
Vivid S70 / S60 – User Manual 8-77
BC092760-1EN 01
Starting the 4D Auto AVQ tool
1. Open a 4D TEE acquisition. The acquisitions should be
made from mid-esophagus roughly centered on the aortic
valve using 4D Zoom.
2. Press Measure.
3. Select Valve/4D Auto AVQ (Figure 8-42).

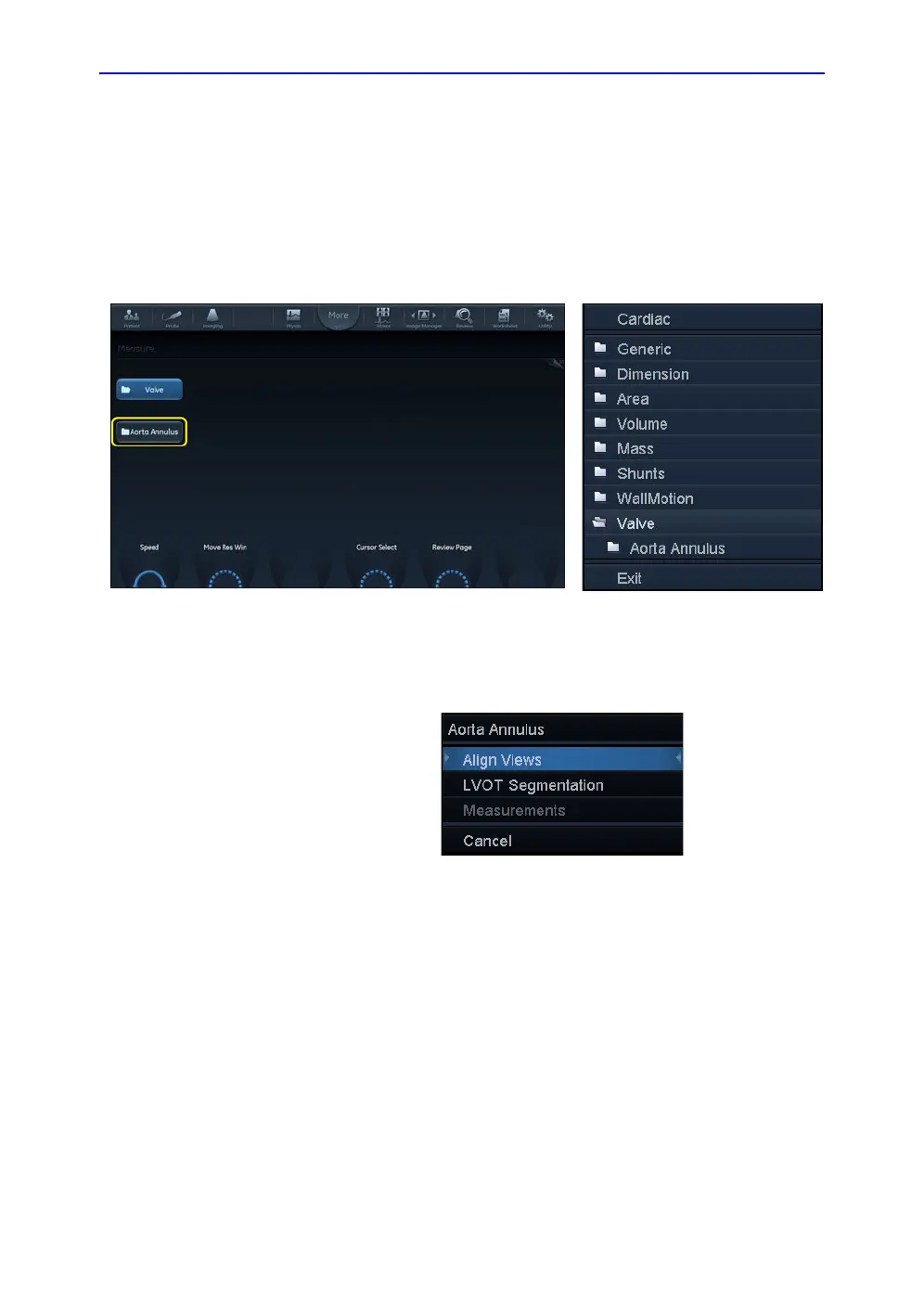

Figure 8-42. Selection of the 4D Auto AVQ tool
The Measurement menu is displayed with the Alignment
tool selected (Figure 8-43).
Figure 8-43. Measurement menu
The main screen displays two long axis slices (90 degree
rotated with respect to each other), a short axis view at the
annulus plane and a free view (Figure 8-44).
