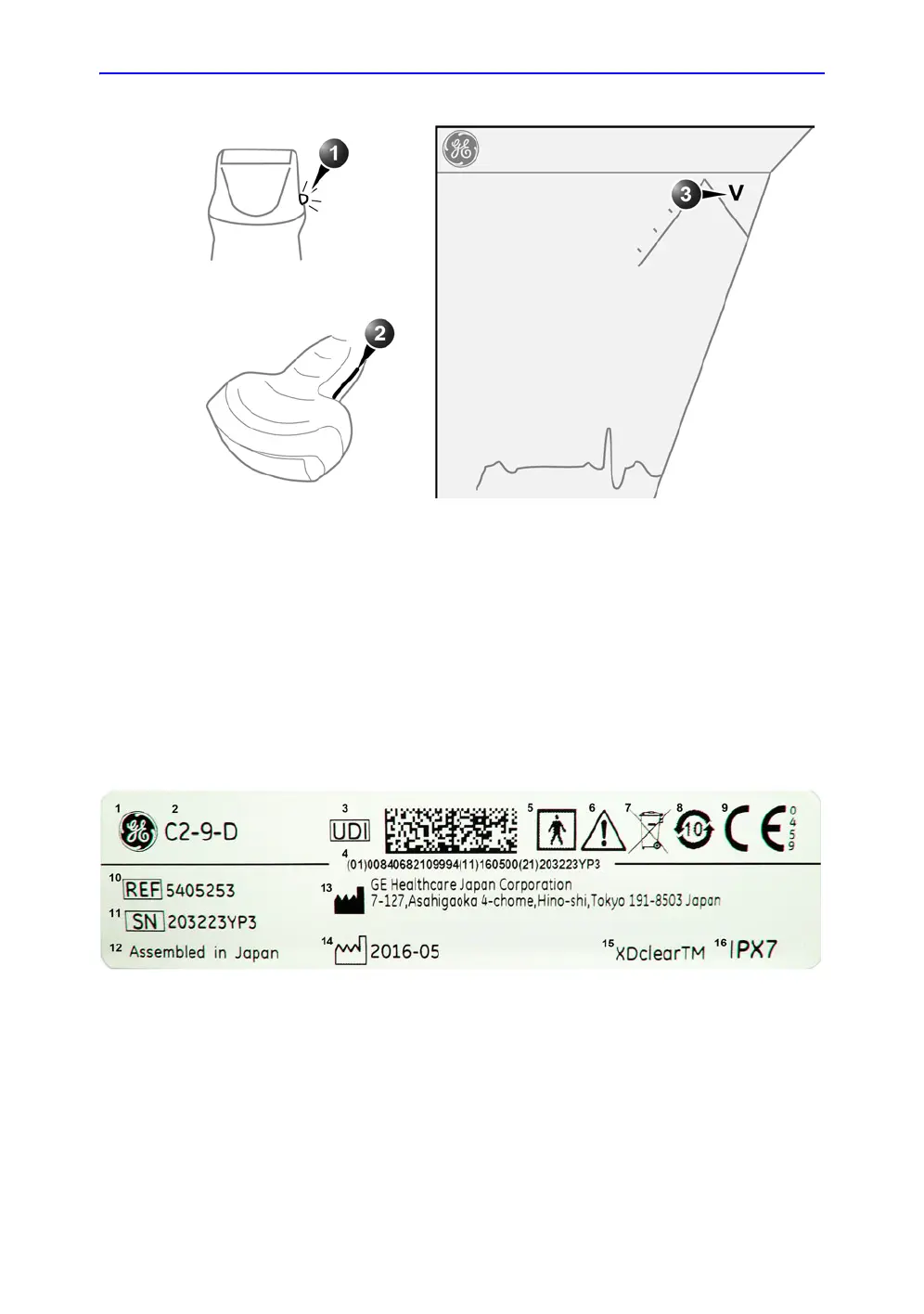

Figure 13-1. Orientation marking on probe and on screen
Probe labeling
The following information appears on all probe labels,
regardless of the connector type, except for “IPX7,” “CE Mark,”
and “XDclearTM” which only appears on applicable probes.
Figure 13-2. Probe labeling
1. LED
2. Notch
3. V-mark on screen: indicates the orientation of the probe to the scan.
1. GE Logo
2. Probe Model (Name)
3. UDI Symbol and Data Matrix
4. UDI Human Readable Information
5. Type BF/CF Applied Part
6. Caution: Consult the Manual.
7. WEEE Waste Symbol
8. RoHS Hazardous Substance Symbol, China
9. CE Mark and Notified Body Number
10. REF: Catalog/model number
11. Serial Number
12. Manufacturer’s Site Country of Origin
13. Legal Manufacturer Name and Address
14. Date of Manufacture (YYYY-MM)
15. Product Marketing indicator information
16. IP Classification
