Measurements and Analysis
8-8 Vivid S70 / S60 – User Manual
BC092760-1EN
01
Measure and Assign modality
1. Press Caliper on the Control panel and select the desired
measurement tool.
Or
Press Measure and select the desired measurement tool in
the Generic folder in Measurement menu.

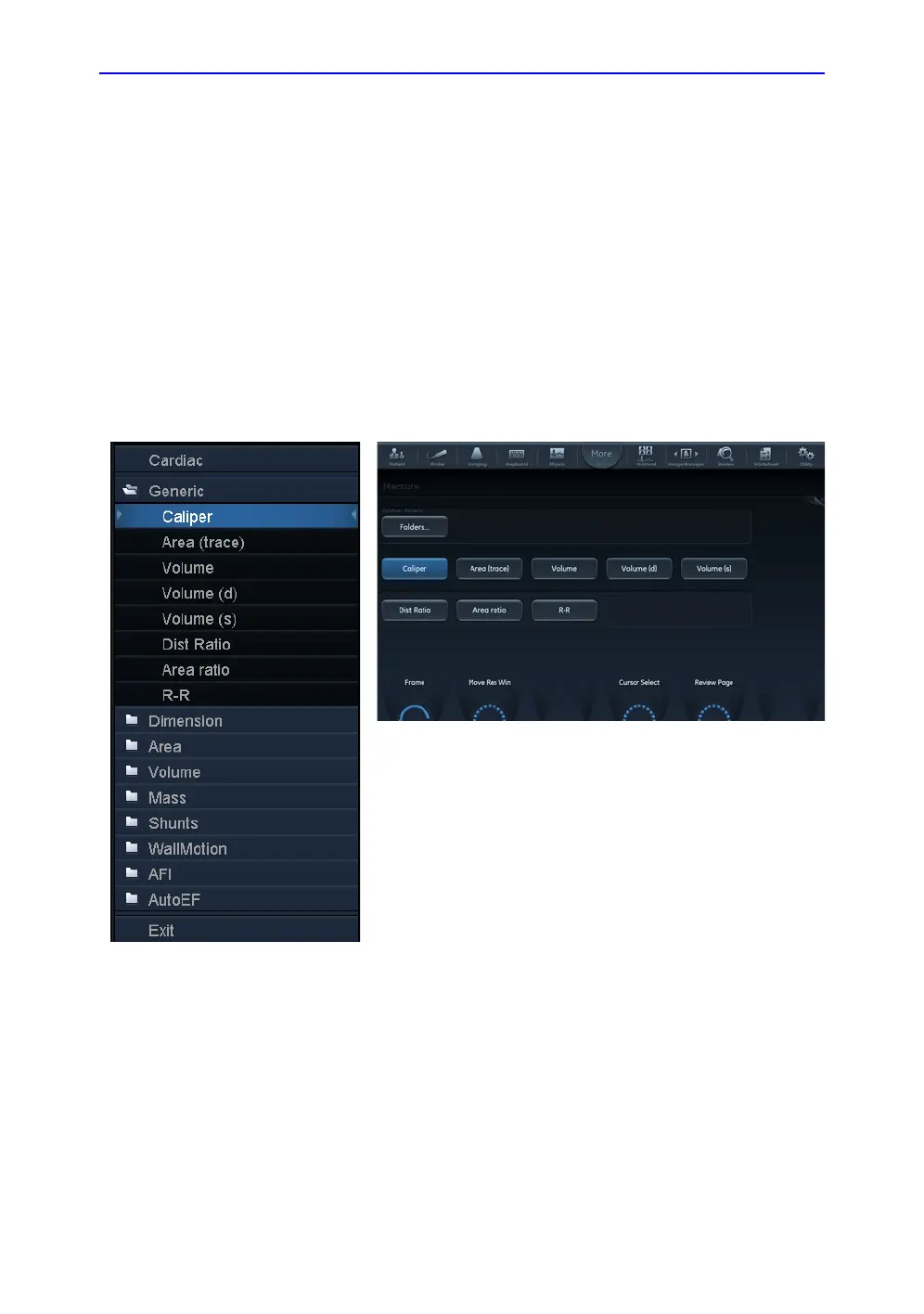

Figure 8-3. Measurement tools
2. Perform the measurement. Follow the instructions displayed
on screen.
Make sure to follow the current medical practices when
placing the specific points on the image.
NOTE: The system supports up to 15 separate measurements per
M&A session. When exceeding this limit the measurements
