View-X
Vivid S70 / S60 – User Manual 14-17
BC092760-1EN 01
active. When View-X Direct is not active, the system reverts to
default TCP/IP settings.
Enable Direct Connection
Follow these sections to select the Direct Connection to the
Epiphan DVI Broadcaster for video streaming.
1. Ensure that the network cable from the Epiphan DVI
Broadcaster is connected to the ultrasound system, and that
the Epiphan DVI Broadcaster is switched on.
2. On the ultrasound system, enter: Utility > Config >
Connectivity > Tcpip and activate Video Streaming. The
Video Streaming dialog opens.

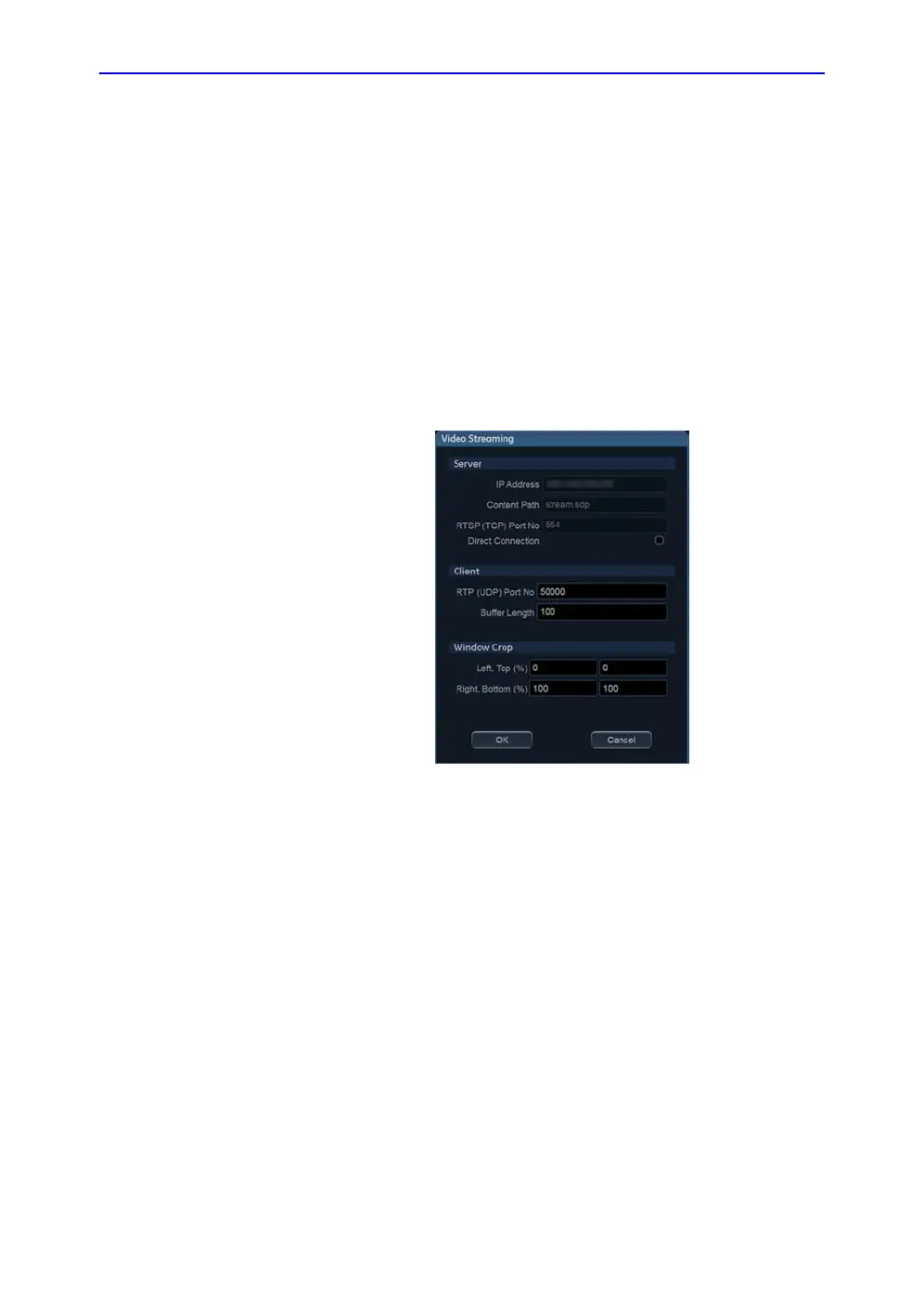

Figure 14-11. The Video Streaming dialog
NOTE: The IP-address is blurred in the User Manual for cyber
security reasons.
3. Click the Direct Connection check box to activate direct
connection to the Epiphan DVI Broadcaster.
