Customize Configuration
12-82 Vivid S70 / S60 – User Manual
BC092760-1EN
01
2. Select:
• Yes to check the Protocol before saving it.
• No to bypass the Protocol check.
• Cancel to cancel the save request.
Views
A Protocol is made up of a series of steps. Each step is made up
of various step attributes. The step and step attribute data can
be viewed in many ways using the Scan Assist Pro Creator. The
different ways to look at the data are called Views. The view of
choice is selected from the View Menu or from toolbar.
Single step views
There are two Single step views: Basic and All. The Basic view
shows the most common attributes of the selected step. The All
view shows all of the attributes of the selected step.

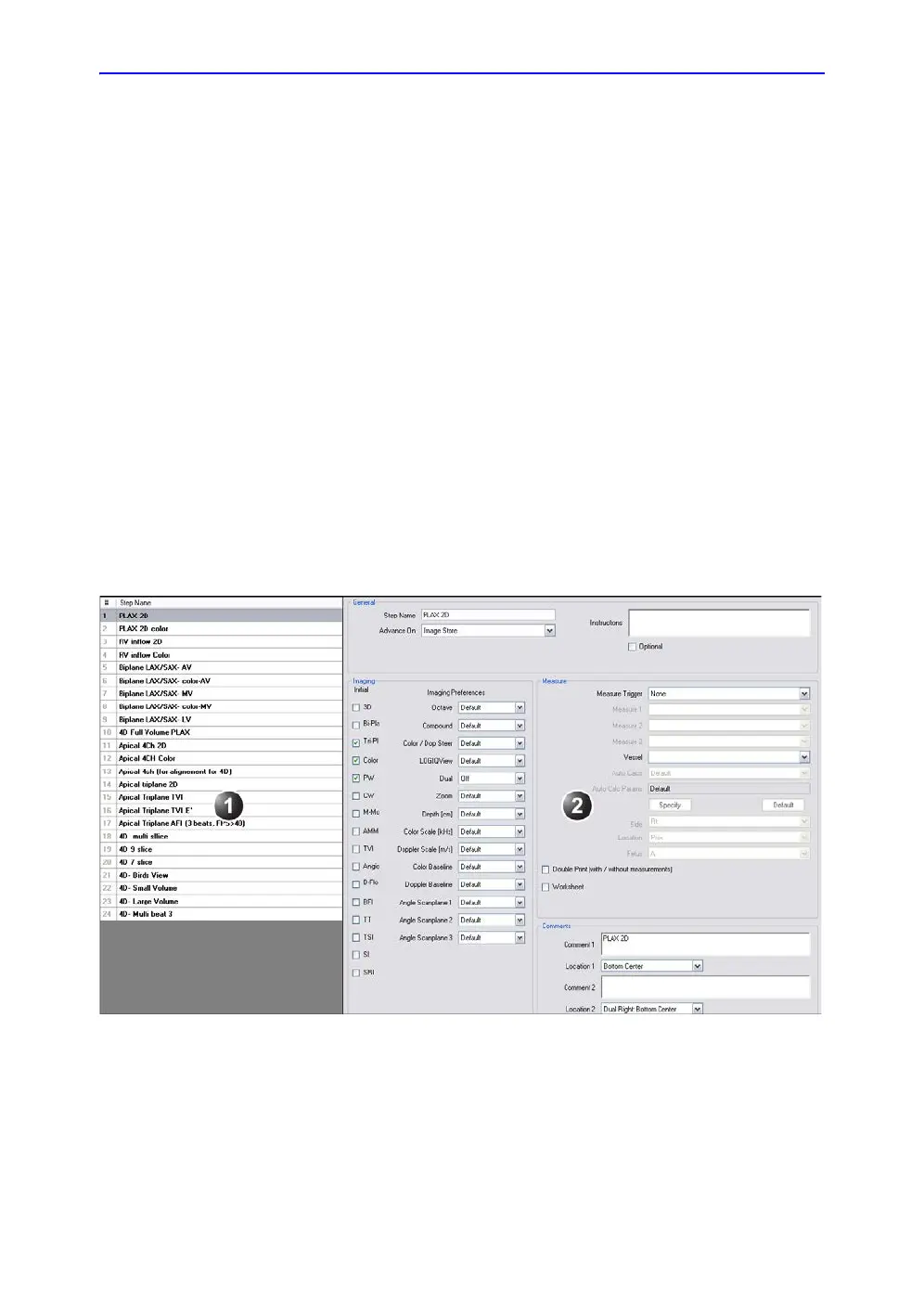

Figure 12-65. Single step view (All)
1. List of all steps in the Protocol
2. Attributes for the selected step
