Image Optimization
5-64 Vivid S70 / S60 – User Manual
BC092760-1EN
01

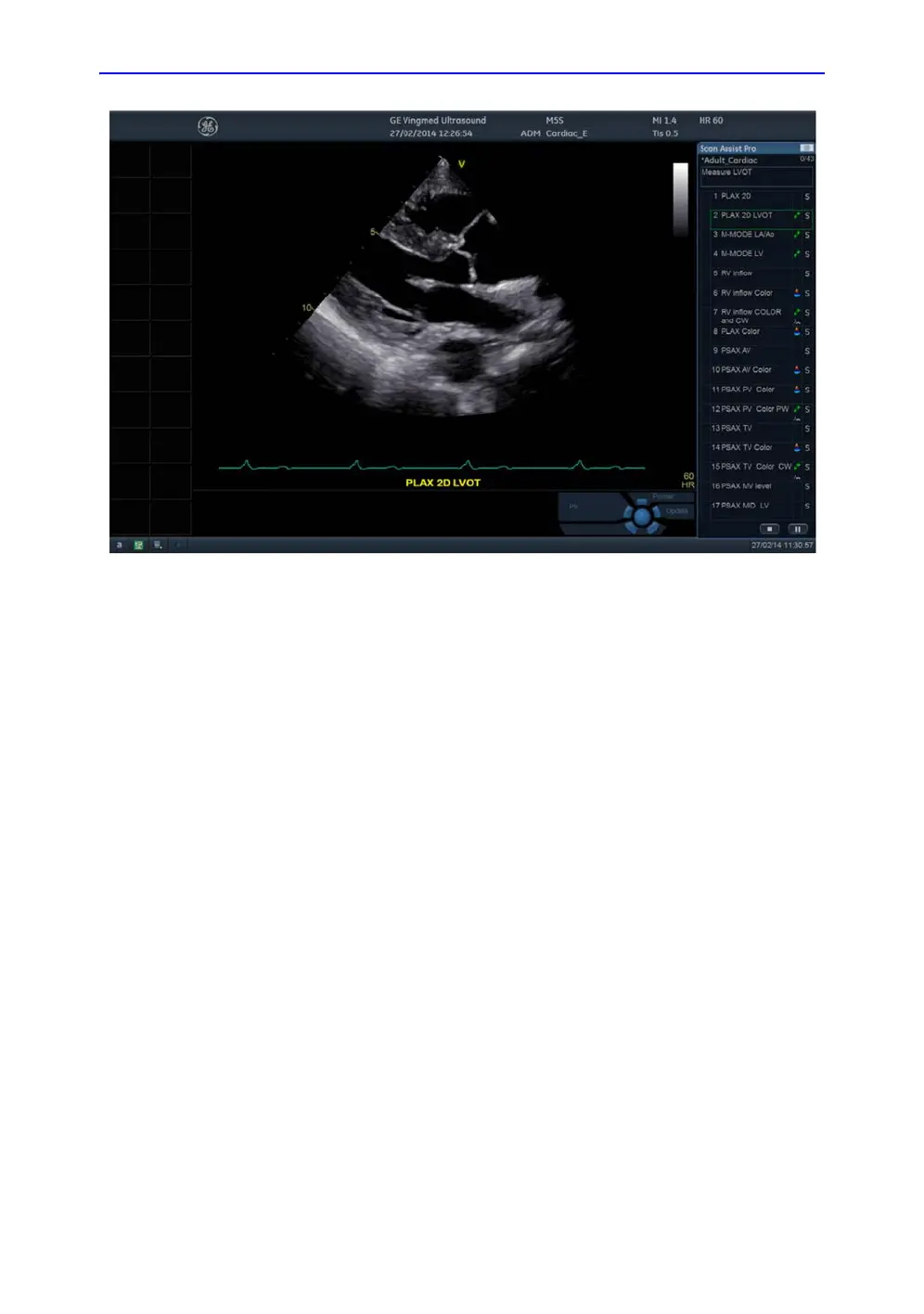

Figure 5-27. Scan Assist Pro screen
2. Follow the steps indicated in the Protocol: image/measure
the appropriate anatomy.
3. Perform the indicated trigger to move to the next step in the
Protocol (e.g Store, Unfreeze... etc).
4. To pause or unpause Scan Assist Pro, press the Pause
button either in the Scan Assist Pro window or on the Touch
panel. You can also press the Left/Right arrow key on the
keyboard.
5. To stop a Protocol, press the Stop button either in the Scan
Assist Pro window or on the Touch panel. A dialog is
displayed to confirm the operation.
6. To restart a Protocol, press Restart on the Touch panel. A
dialog is displayed to confirm the operation.
7. To skip a step or move to a certain step, press the Up/Down
arrow key on the keyboard or select the step you want to
move to using the trackball.
