4D and Multi-plane Modes
6-40 Vivid S70 / S60 – User Manual
BC092760-1EN
01

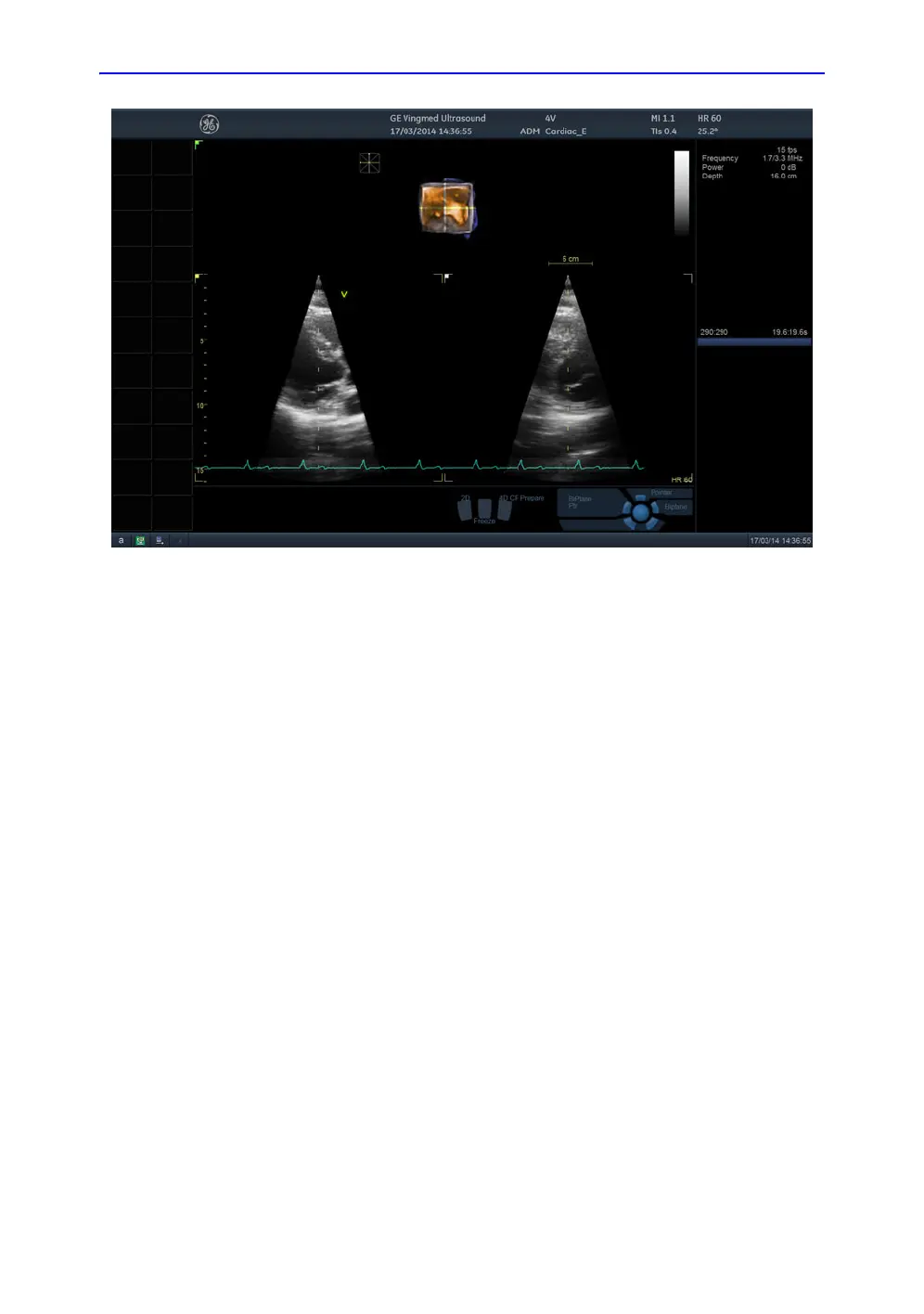

Figure 6-22. The Bi-plane prepare screen
1. In 4D live press Bi-plane prepare on the touch panel.
The Bi-plane prepare screen is displayed showing two
perpendicular cut-planes and a smaller volume rendering
with a cross-hair defining the position of the cut-planes.
2. Using the trackball, move the cross-hair in the volume
rendering until the cut-planes of interest are displayed.
Alternatively, adjust Tilt and Rotate rotary controls.
3. Press Bi-plane on the Touch panel (or Multi D on the
Control panel) to start high resolution and high frame rate
bi-plane acquisition.
4. Press Store to save the acquisition.
