4D/Multi-plane LV
Vivid S70 / S60 – User Manual 8-59
BC092760-1EN 01

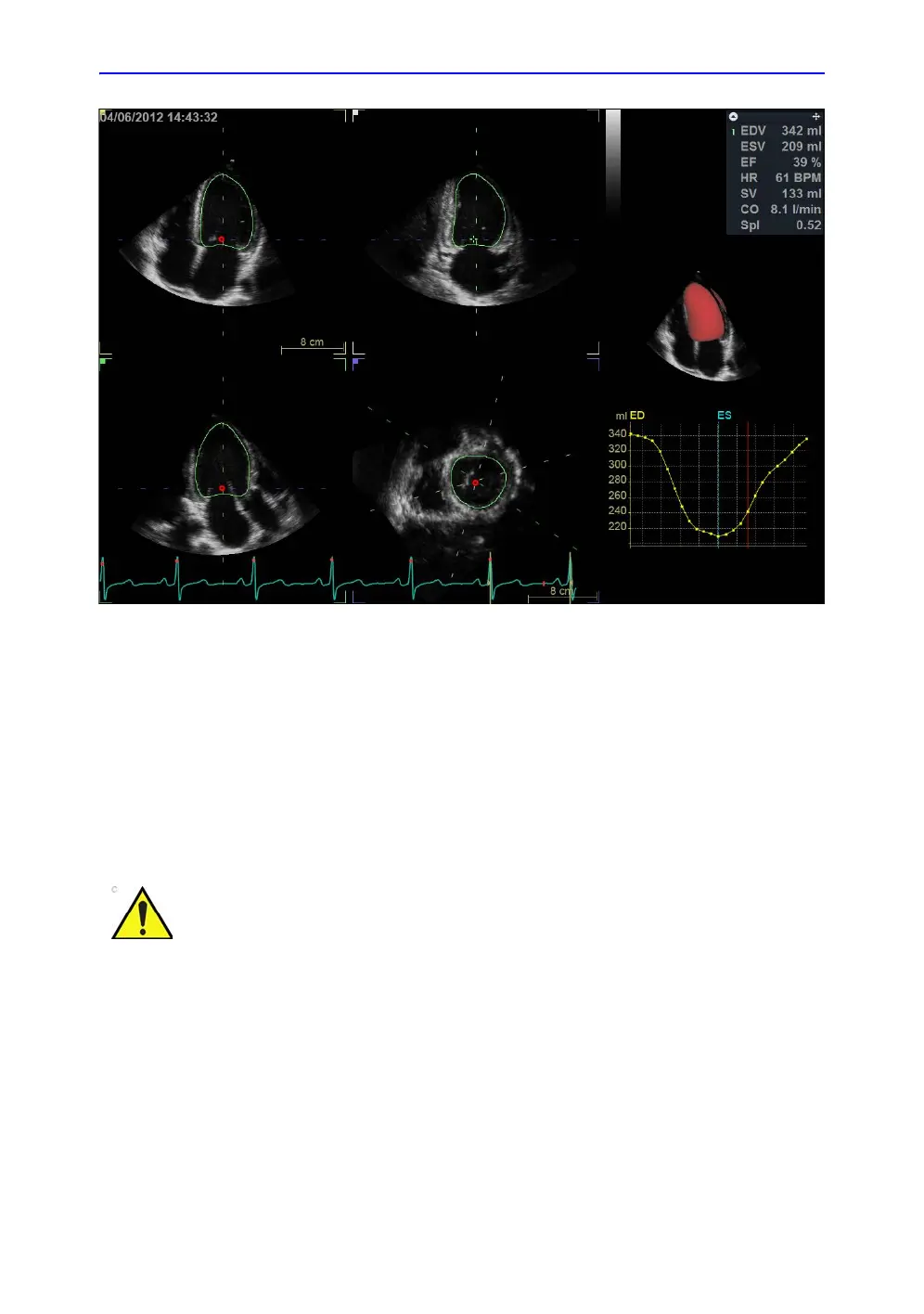

Figure 8-30. The Volume waveform screen
Approval
1. Press Approve & Exit to store the measurements shown in
the Measurement result table.
The measurements are transferred to the Worksheet.
To exit without approving, press Cancel.
NOTE: Measurements that are not approved will not be saved.
Calculation formula and measurement accuracy
Refer to the Reference manual for calculation formula
information and ‘Measurement accuracy’ on page 8-97 for
measurement accuracy information.
The measurement should not be approved if a significant part
(more than 25%) of the left ventricular wall or the detected
contours are outside the ultrasound sector.
