2. The LVOT segmentation should be checked in all slices. To
visualize the LVOT segmentation in all slices, move the blue
line through the LVOT in one of the long axis views and
observe the segmentation in the interactive view. The
position of the interactive view updates according to the blue
line position in the long axis view.
3. The LVOT segmentation may be adjusted by adding
attracting points in the interactive view.
• Press Lock view to lock the interactive view.
• Place the cursor at the location where to add a point.
• Press Select.
A point is added and the segmentation is modified.
• To delete an attracting point, double click on the point.

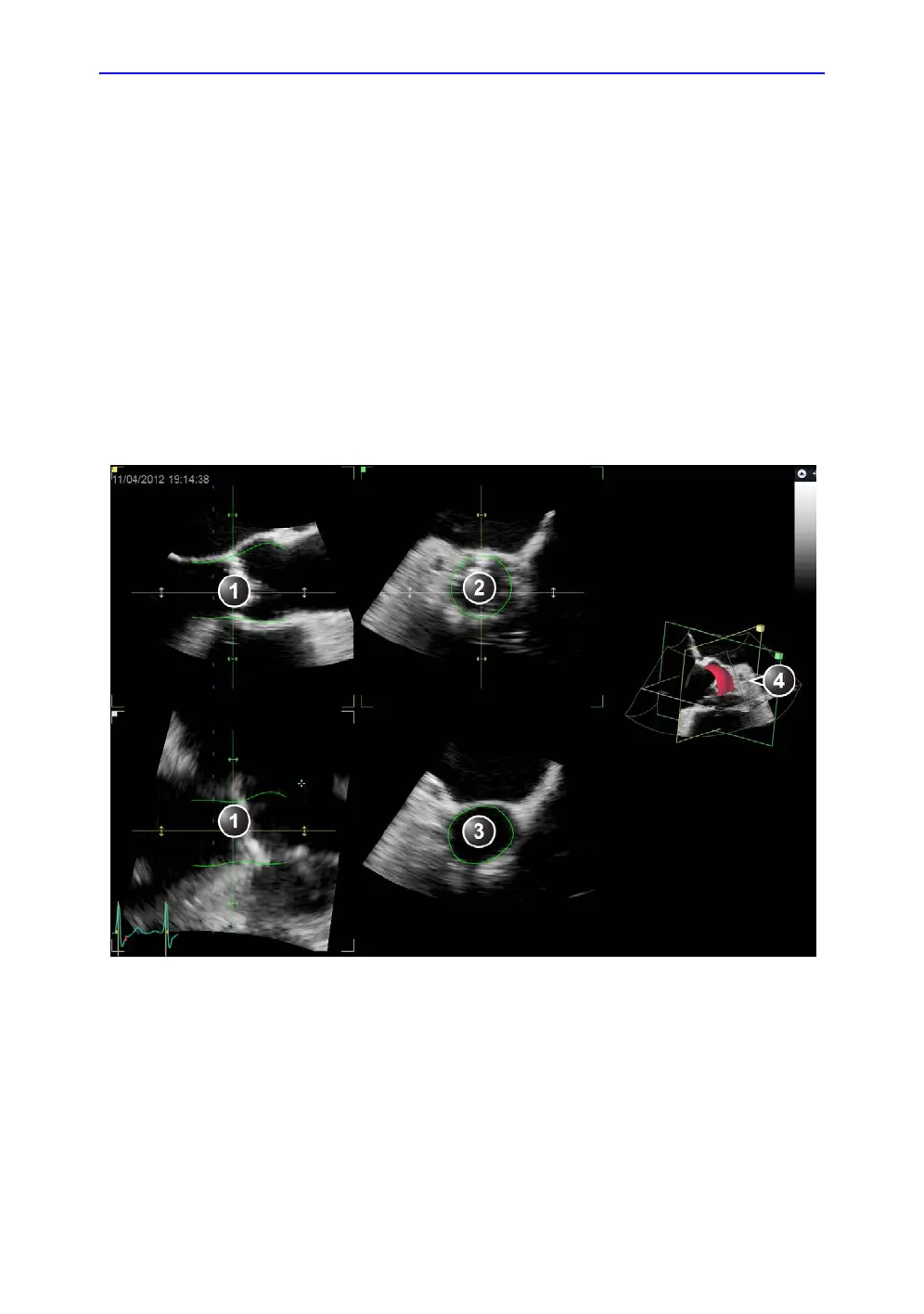

Figure 8-45. LVOT segmentation
1. Long axis view
2. Short axis view
3. Interactive view
4. 3D surface model
