Structured Findings
Vivid S70 / S60 – User Manual 11-13
BC092760-1EN 01
The report for the current patient is displayed with the
selected findings, conclusion statement(s) and associated
codes (if any).
NOTE: Some diagnostic statements have measurements values in
the body text referred by a tag (e.g the {EF} tag refers to EF
measurement). These statements require that the actual
measurement is done to display correctly in the report.

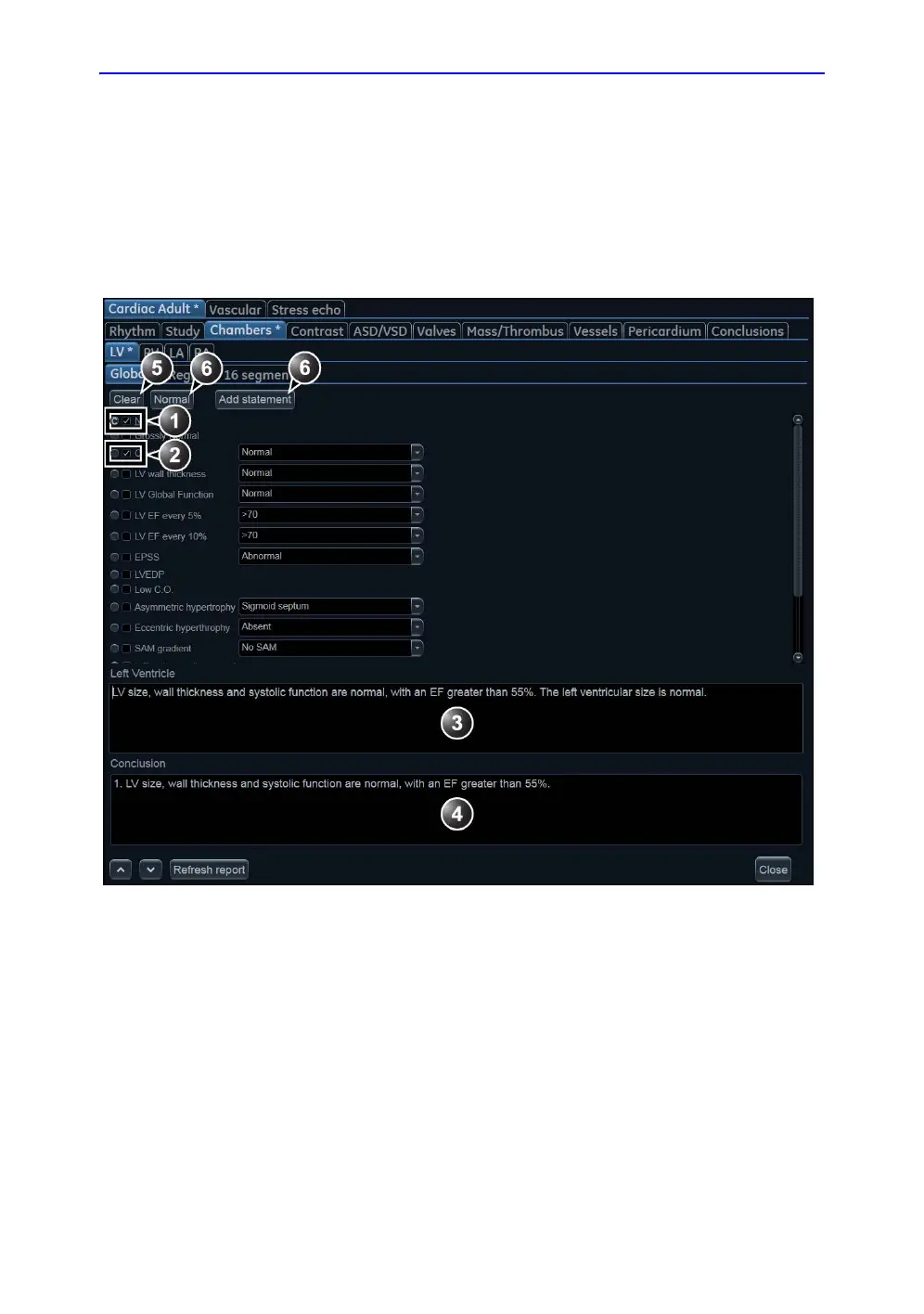

Figure 11-5. Structured Findings window
1. Statement inserted in the Conclusion and Findings field.
2. Statement inserted in the Findings field only.
3. Findings preview field
4. Conclusion preview field
5. Remove all selections.
6. Insert normal findings for the current tab sheet.
7. Create and add a statement. The statement will be available only for the current examination.
