Prepare the System for Use
3-16 Vivid S70 / S60 – User Manual
BC092760-1EN
01
To connect the internal ECG
1. Connect the ECG trunk cable to the rectangular socket
marked ECG on the patient trace (I/O) panel. The patient
trace (I/O) panel is located at the front left of the ultrasound
system (see Figure 3-8).
2. Hook up the electrode cables to the electrodes, following the
appropriate convention (see Figure 3-9).
Using Physio
Display ECG trace

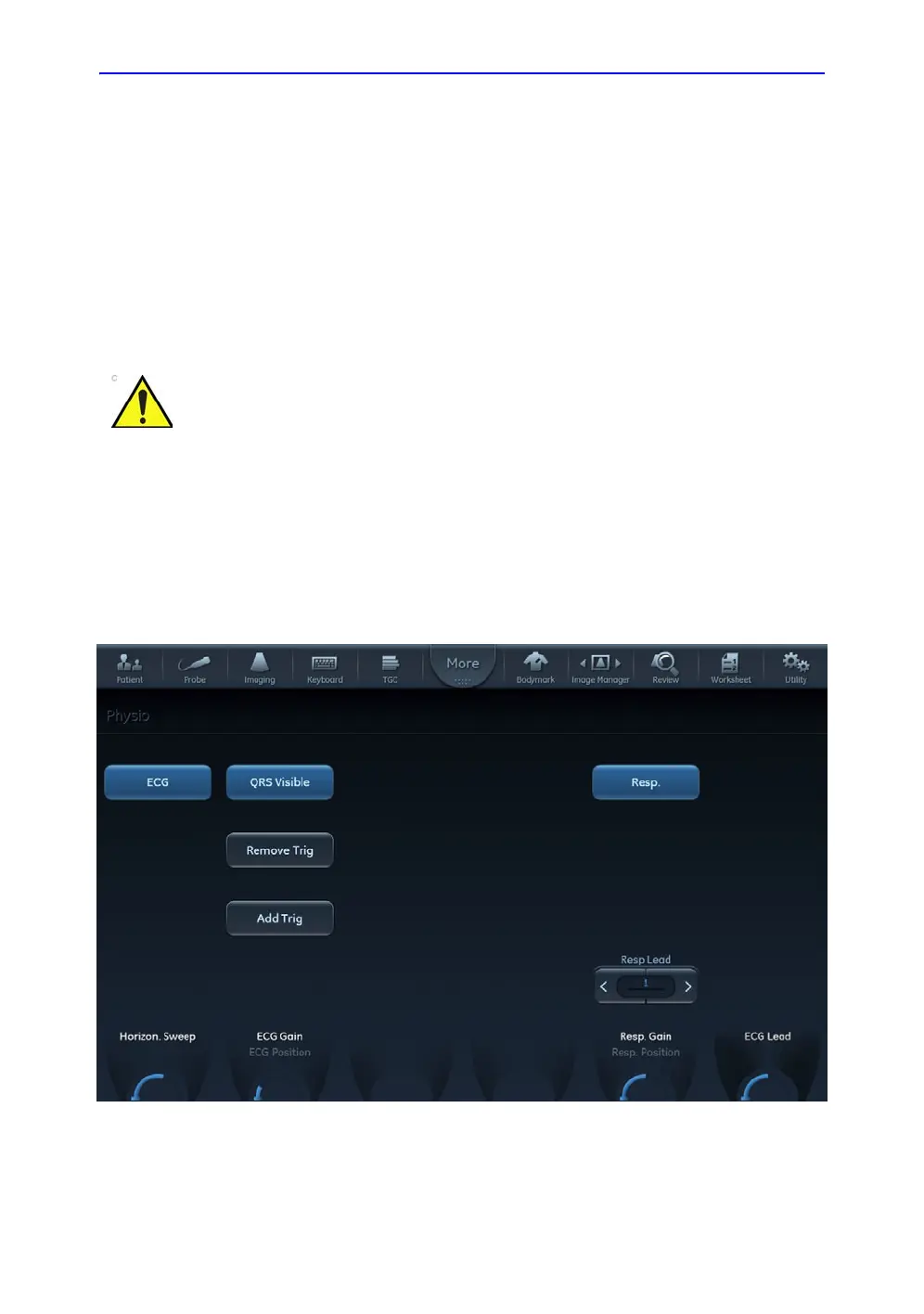

Figure 3-10. ECG controls
The use of respiratory monitoring might interfere with the
proper operation of impedance-based rate-responsive
pacemakers. When examining a patient with a pacemaker, it is
required to turn off the respiratory trace on the system. This will
block off the respiratory monitoring signals which might
interfere with the pacemaker.
Exception: When using an external respiratory monitor, turning
off the respiratory trace on the system WILL NOT block the
operation of the external monitor.
