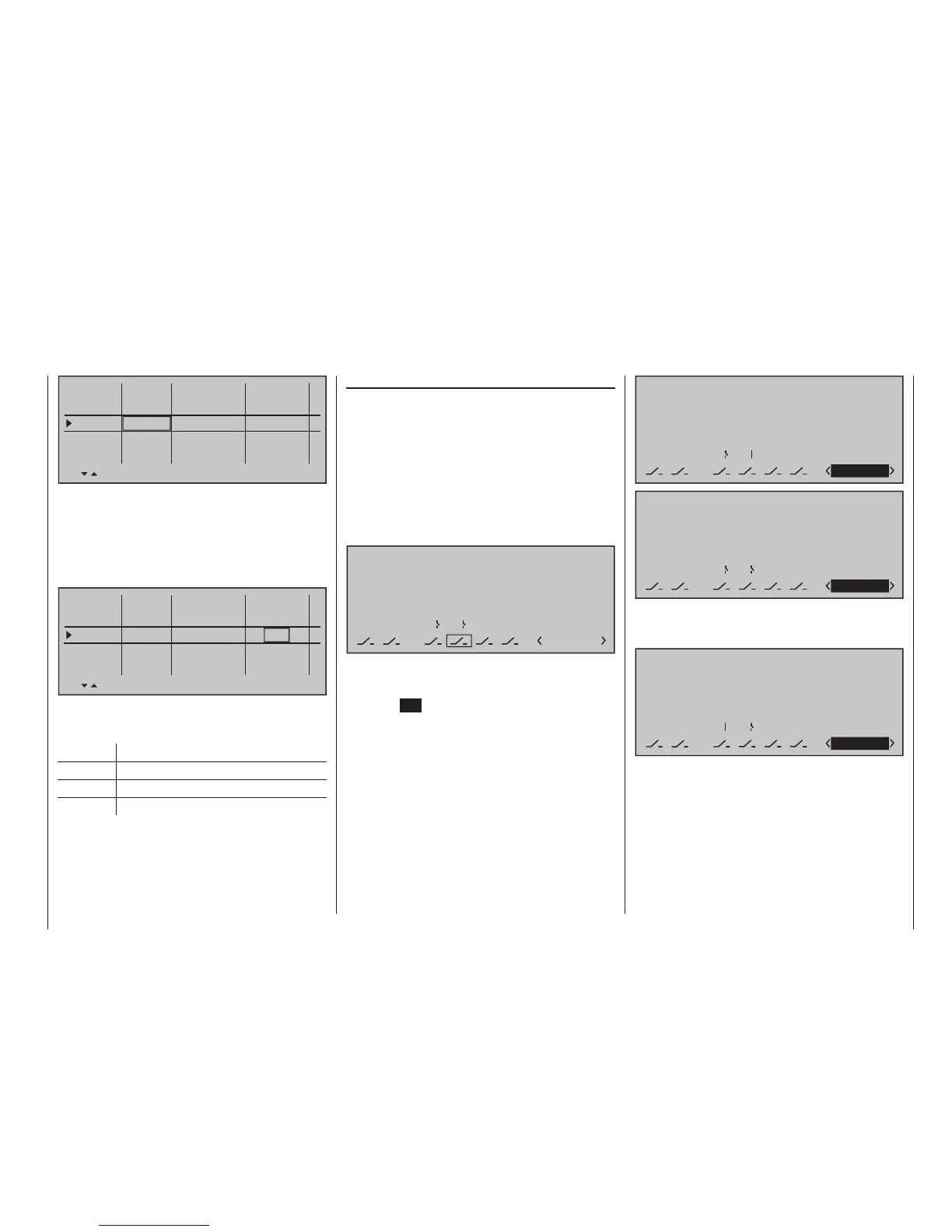

Programming examples - Using ight phases
Phase 1
Phase 2
Phase 3
Phase 4
Phase 5
0.1s
0.1s
0.1s
0.1s
0.1s
Name
Fl.ph.Tim. SW. time
–
–
–
–

Normal
Thermal
Speed
Now move the marker frame beyond the "Fl.ph.Tim"
column to the right into the column "Sw. time" and set
a "switching time" from any other phase into the given
phase in order to avoid an abrupt phase change; in
other words to avoid erratic changes of flap positions.
Now try out different switching times. In this example
we have specified 1 s in each case:
Phase 1
Phase 2
Phase 3
Phase 4
Phase 5
1.0s
1.0s
1.0s
0.1s
0.1s
Name
Fl.ph.tim. Sw. time
–
–
–
–

Normal
Thermal
Speed
Whether or not one of the phases 1 … 8 currently has
an assigned switch and the state of the switch can be
seen in the "status" column at the far right.
Symbol Meaning
– No switch assigned
+ Phase can be called via switch

Indicates the currently active phase
Since, except for phase 1, all other phases are still
designated with a "-" symbol, now switch in the menu
…
»Phase assignment« (page 160)
… and assign the previously defined flight phases
to appropriate switches with which a selection from
among three phases is possible.
Since there is no particular priority here, assign for
example switch "C" in the display to one of the two
end settings of one of the two 3-way switches. Af-
terward put the selected switch again into its middle
position, activate the switch assignment under "D"
then move the selected 3-way switch again out of its
middle position and into the other end position, as
shown below:
P H A S E ASSIGNMENT
Prior .
C
1 Normal
combi
A
B D E F
2 6 7
After the switch assignment is complete, use the se-
lection keys to switch to the bottom right and activate
the assignment of phase names with a brief tap on
the centre SET key of the right touch pad.
Now close switch "7" by moving the selected 3-way
switch forward.
Assign the name "<2 Thermal>" to this switch
position and leave the name of its "OFF" position
as "<1 normal>".
P H A S E ASSIGNMENT
Prior .
C
combi
A
B D E F
2 6 7
2 Thermal
P H A S E ASSIGNMENT
Prior .
C
combi
A
B D E F
2 6 7
1 Normal
Finally, move the 3-way switch to the rear toward its
"6 o'clock position" and assign this switch position the
name "<3 Speed>":
P H A S E ASSIGNMENT
Prior.
C
combi
A
B D E F
2 6 7
3 Speed
The phase names selected in the programming are
now shown, depending on the switch status, in all
flight-phase dependent menus, see the table on
page 140.
Since we have already made some settings in flight-
phase dependent menus, such as in the »Wing mixers«
menu, we will now copy these settings to the «Thermal»
flight phase. For this purpose, open the menu …
