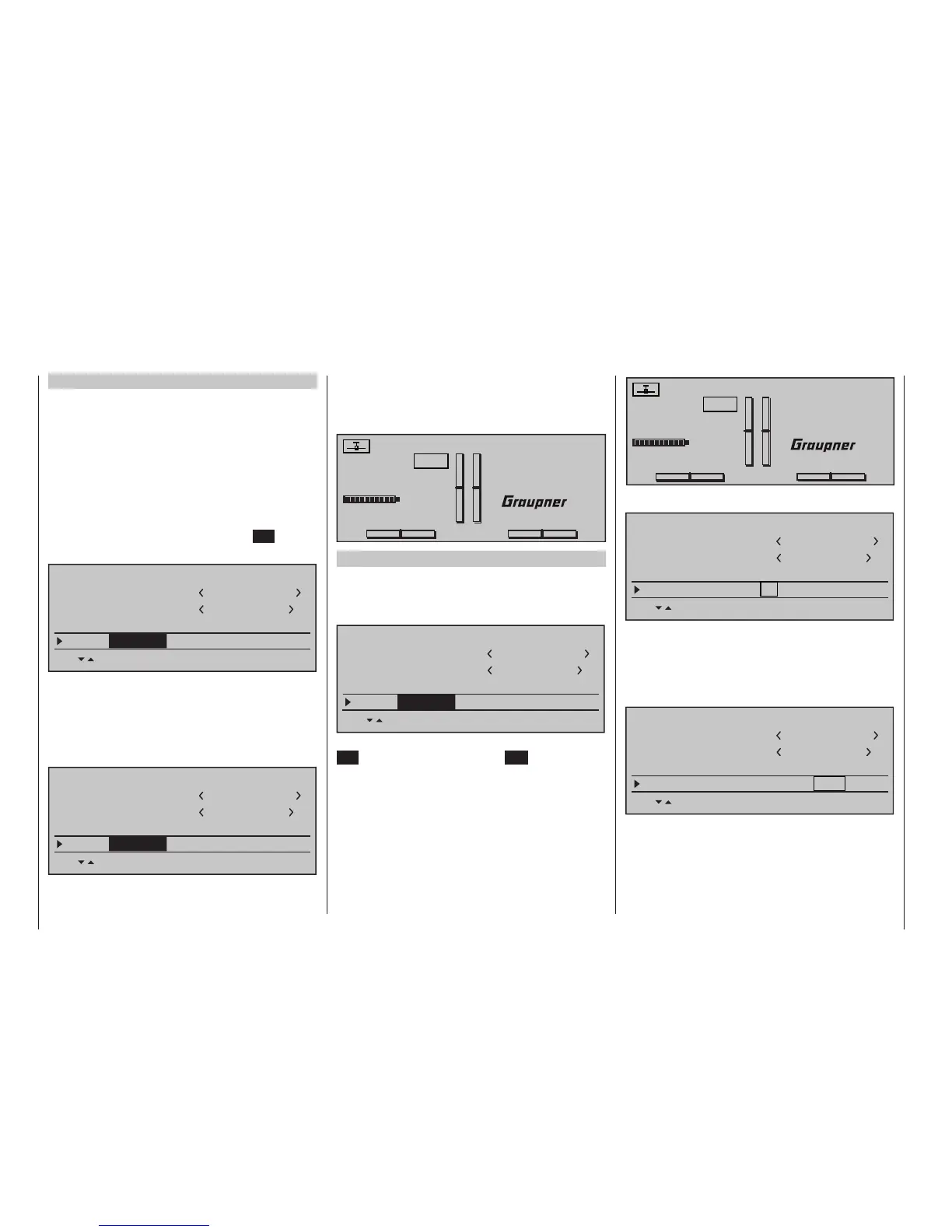

Program description - Base setup models | Helicopter models
EXT. (PPM signal at DSC sock-
et)
If your transmitter is fitted with a non-Graupner exter-
nal RF module connected to the DSC / Data socket,
you can switch between the standard internal HoTT
RF module and the external module when you switch
model memories in the “Module” line by choosing
either “HoTT”, “EXT.”, or “SP.”, as described in the fol-
lowing section.
You can now use the arrow button of the right-hand
four-way button to move to the first Value field in the
“Module” line before pressing the central SET button
of the right-hand four-way button:
Model name
Stick mode
1
BASIC SETTING,MODEL
Info
Module
Graubele
1234g/111111
SEL
HoTT
BD1 BD2 BD3 BD4
bind bind n/a n/a
In the active Value field you should now use the Se-
lect buttons to choose “EXT.” or – if appropriate – the
“SP.” mode (described below) instead of “HoTT”.
When you select “EXT.”, the HoTT-specific value fields
are replaced by the modulation type already selected
in the “DSC output” line; see page 89:
Model name
Stick mode
1
BASIC SETTING,MODEL
Info
Module
Graubele
1234g/111111
SEL
PPM10
EXT. PPM
#01
0:00h
Stop watch
Flight time
K78
0:00.0
4.1V
0:00.0
RX VOLT:0.0v
00
0
0
00:00h
M
V
SP
Graubele
H-J Sandbrunner
“Mode” column
Model name
Stick mode
1
BASIC SETTING,MODEL
Info
Module
Graubele
1234g/111111
SEL
SP mode
MOD BD
1 bind
In this column you select the transmission mode of
the external RF module:
• Mode “1”: 2-channel hopping
• Mode “2”: x-channel hopping
“BIND” column
Model name
Stick mode
1
BASIC SETTING,MODEL
Info
Module
Graubele
1234g/111111
SEL
SP mode
MOD BD
1 bind
The “BIND” column in the right-hand column can be
used to initiate the “Bind” process of the non-Graup-
ner system – the transmitter’s RF section must be
switched off when the transmitter is rst switched
on.
The lines of the “Receiver output” and “Range test”
options (described below) are also suppressed, as
are all the HoTT-specific displays in the base display;
“PPM” is also superimposed instead of “HoTT”:
#01
0:00h
Stop watch
Flight time
K78
0:00.0
4.1V
0:00.0
RX VOLT:0.0v
00
0
0
00:00h
M
V
PPM
Graubele
H-J Sandbrunner
SP mode (Digital signal at DSC socket)
If you need for external RF module from another
manufacturer, or however, instead of the analog PPM
signal a special digital signal, then connect it to the
DATA jack and select the line “module” to “SP Mode”:
Model name
Stick mode
1
BASIC SETTING,MODEL
Info
Module
Graubele
1234g/111111
SEL
SP mode
MOD BD
1 bind
Also include here the choice by pressing the central
SET key of the right or the centre ESC key of the left
touch pad.
Parallel to this choice are also the options described
below “Receiver output” and “Range Test” and hidden
all HoTT-specific displays in the basic display and
instead of “HoTT”, “SP” is displayed:
