Operation – Monitoring and Diagnosis
ENG - Version 2.1 – P/N 04130.2 95
6 Operation – Monitoring and Diagnosis
6.1 Information on Monitoring and Diagnosis
The corpuls
3
offers comprehensive options for monitoring vital parameters
and for diagnosis of critical patients.
The device starts automatically in monitoring mode when it is switched on.
Press the Monitor key to switch from the therapeutic mode to monitoring mode.
AED
A
nal yse
Char ge
Manual
Browser
Moni tor
Pacer
Browser
Monitor
Pacer

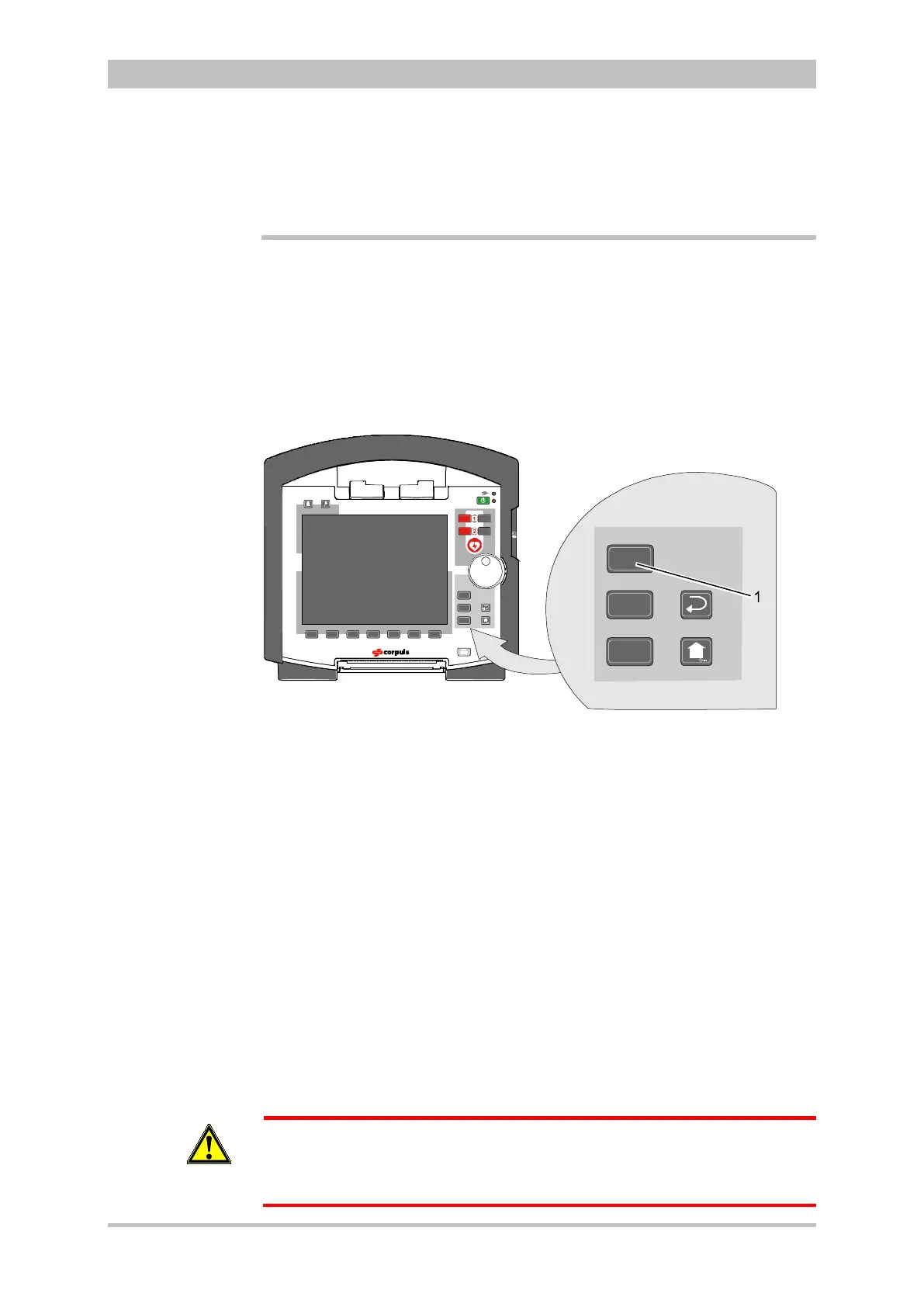

Fig. 6-1 Selection of the monitoring and diagnostic function
1 Monitor key
6.2 ECG Monitoring
6.2.1 Information on ECG Monitoring
The ECG monitoring function of corpuls
3
allows routine monitoring of heart
rhythm and heart rate. Configurable alarms indicate current changes in the ECG.
To record the ECG as part of monitoring a 4-pole monitoring cable or
corPatch electrodes are necessary.
With the 4-pole ECG monitoring cable, the bipolar extremity leads according to
Einthoven (I, II, III) and the unipolar extremity leads according to Goldberger
(aVR, aVL, aVF) can be recorded and displayed on the monitor. Simultaneous
display of up to six ECG leads maximum is possible.
For a reliable suppression of pacer impulses, the 4-pole ECG monitoring cable
has to be used.
Warning
To guarantee a defibrillation protection for patients, users and third parties,
use exclusively the ECG monitoring cables itemised in the list of authorised
accessories (see chapter 9.8, Approved Accessories, Spare Parts and
Consumables, page 224).
Note
