6.5.2 Preparing Oximetry Monitoring
Handling of a oximetry finger sensor is described below.
Warning
Please read and understand the warning notices of the oximetry sensor
manufacturer.
Warning
Do not place the oximetry sensor on the same limb as an NIBP cuff for non-
invasive blood pressure monitoring, a catheter or an intravascular access.
This may invalidate the measuring results.
1. Connect the oximetry sensor to the intermediate cable to the patient box.
3
1
2

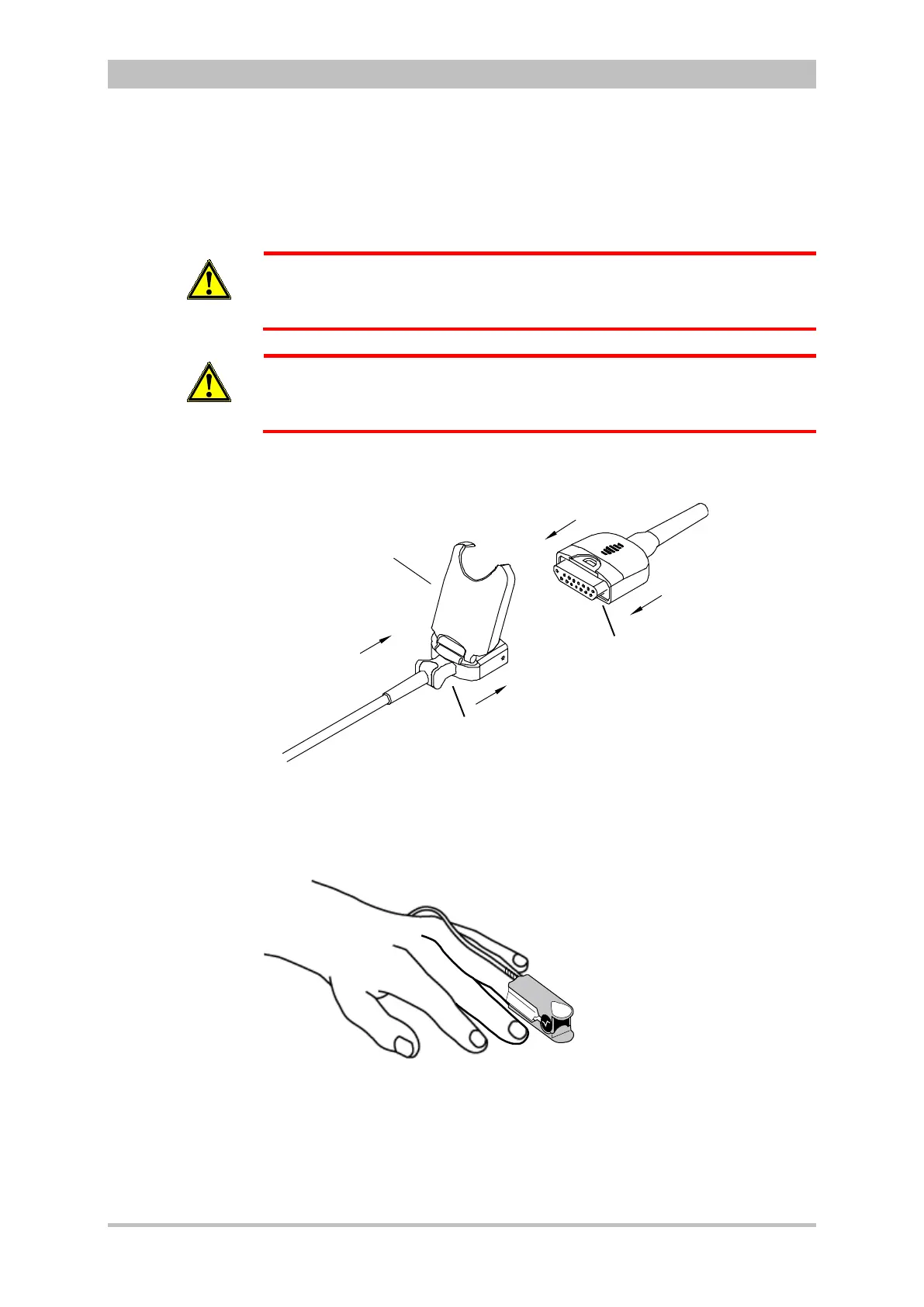

Fig. 6-17 Connecting the oximetry sensor on to the intermediate cable
2. Attach the oximetry sensor to a finger according to the manufacturer’s
instructions.
Fig. 6-18 Oximetry monitoring, attaching the oximetry sensor
