7.4.4 Filter Settings (Persons Responsible for the
Device)
Persons responsible for the device can adjust further settings in addition to
those described in chapter 7.2.1 ECG Monitoring, p. 148.
1. In the main menu, select "ECG" ► “Settings”.
The configuration dialogue opens.

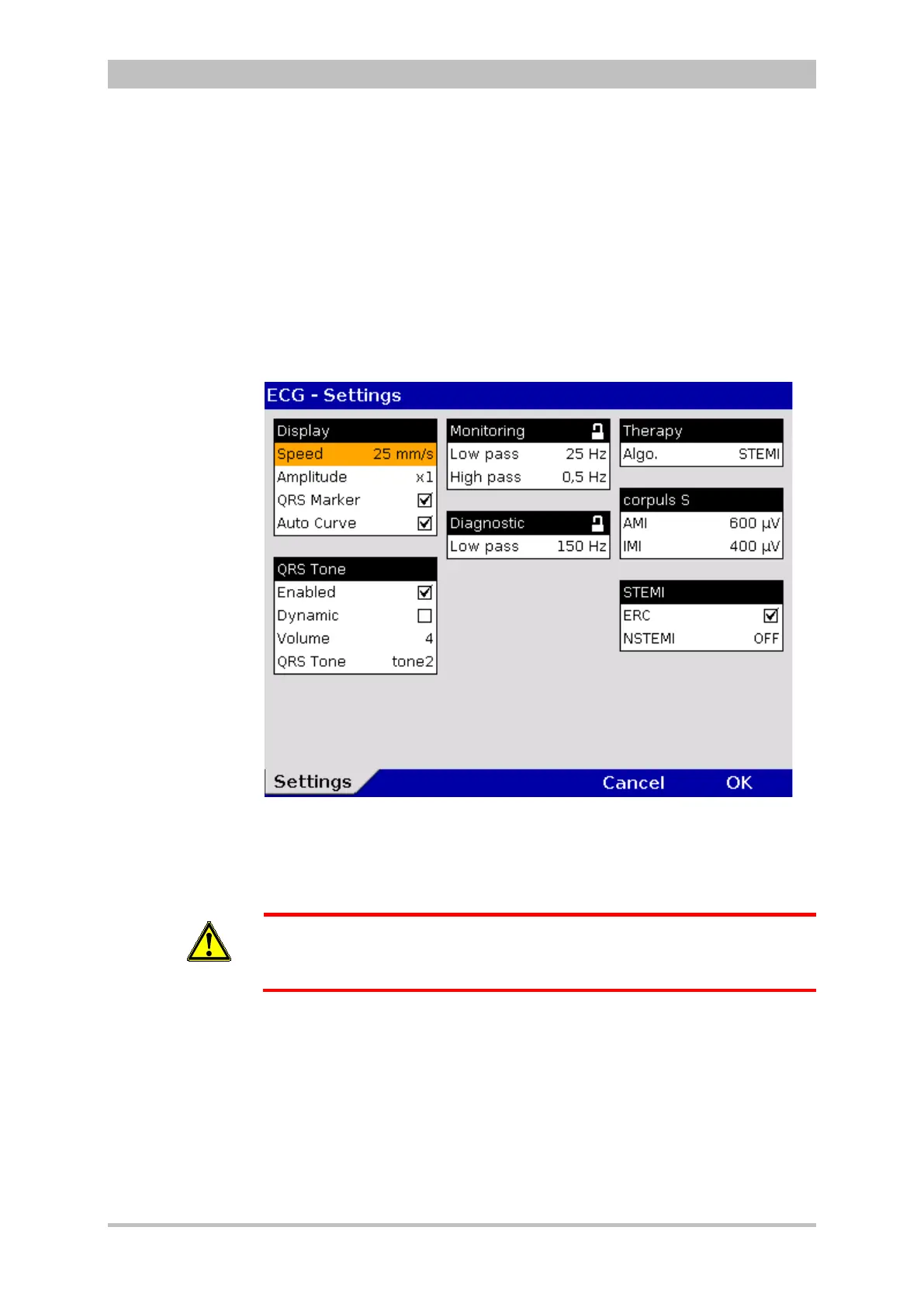

Fig. 7-20 Filter settings for ECG (persons responsible for the device)
The frequencies for the low pass and high pass filters for ECG monitoring
(Monitoring) and the low pass filter for the D-ECG (Diagnostic) can be adjusted.
Warning
The filter settings modify the representation of the ECG curves.
The filter settings for the DE lead are pre-configured and fixed to 0.5 to 25 Hz.
The high-pass filter suppresses interference in the lower frequency range of the
ECG curve.
The low pass filter suppresses interference in the upper frequency range of the
ECG curve. This interference (artefacts) may be caused by a muscle tremor.
High pass filter
ECG monitoring
Low pass filter
Settings
Note
