6.6.4 Adjusting the Representation of the CO
2
Values
The sweep speed of the display on the screen can be selected for the
configured curves.
The following sweep speeds can be set:
• 3.13 mm/s
• 6.25 mm/s
• 12.5 mm/s
• 25 mm/s
1. Select the CO
2
curve and open the curve context menu.
2. Select the required sweep speed in the curve context menu and confirm
Once the selection has been made, the program leaves the curve context
menu automatically.
CO
2
values can be displayed either in the measuring unit mmHg or in kPa.
1. Select the CO
2
curve and the curve context menu or
2. Select the CO
2
parameter field and the parameter context menu.
9. Select the required measuring unit in the context menu and confirm.
Once the selection has been made, the program leaves the context menu
automatically.
6.6.5 Monitoring Respiratory Rate
With CO
2
monitoring, respiratory rate (RR) is also assessed and can be
displayed on the screen.
1. Select the parameter field for display of respiratory rate (RR) and open the
parameter context menu.
2. Assign respiratory rate to the selected parameter field.

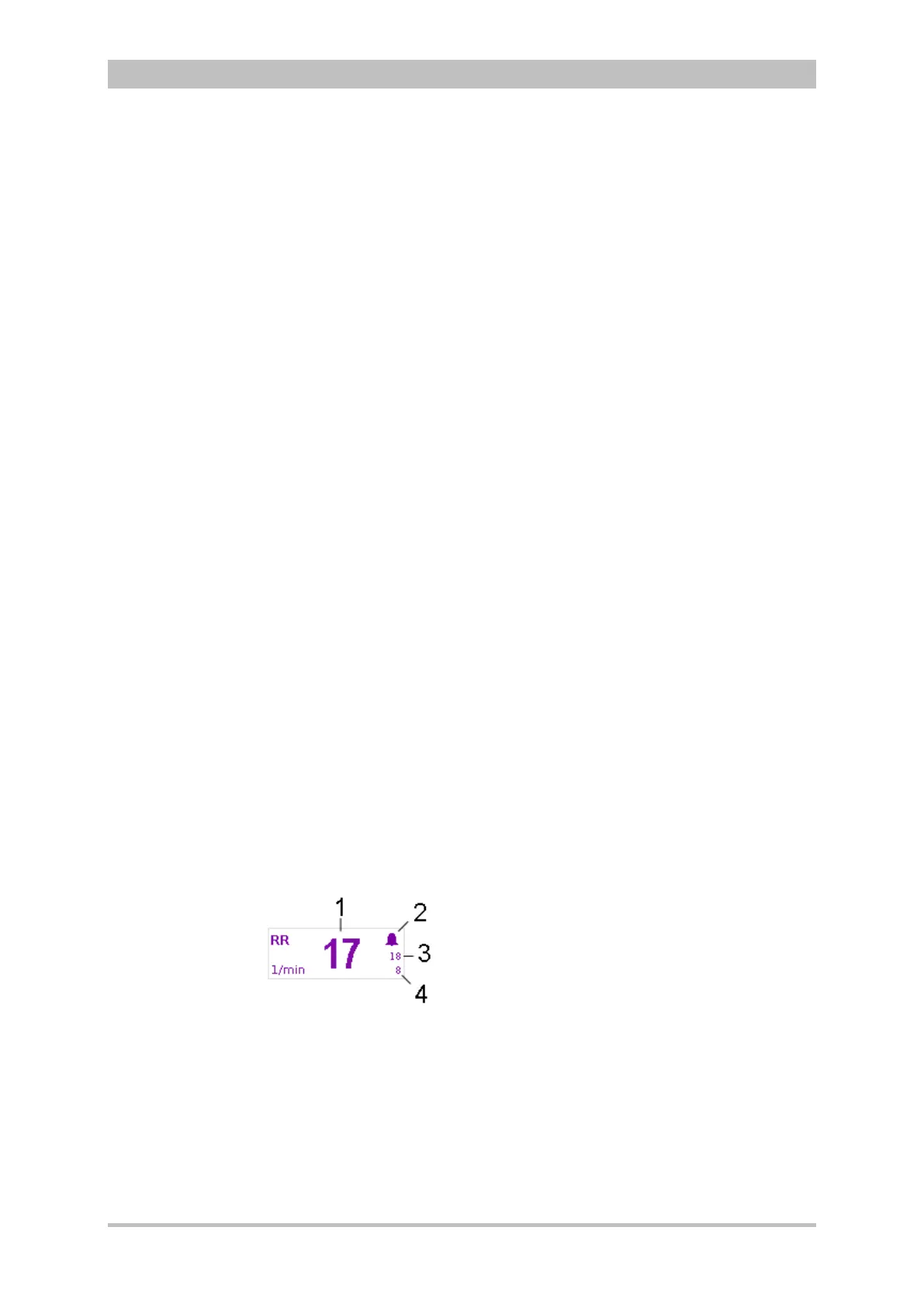

Fig. 6-27 Respiratory rate parameter field
1 Current respiratory rate in 1/min
2 Symbol for switched-on alarms
3 Upper alarm limit
4 Lower alarm limit
Modifying the
sweep speed
Changing the unit
